EGO POWER+ TR4200 User Manual

56-VOLT LITHIUM-ION ELECTRIC LAWN TRACTOR — TR4200/TR4200-FC24
A. UNPACKING
WARNING: To reduce the risk of injury or tractor damage, do not use a knife to cut the nylon straps. Use
scissors or side cutters.
WARNING
: To reduce the risk of damage, remove watches or other fragile and valuable items from your
wrists. There’s a risk of accidental contact with steel frame elements.
Required tools:
◾
Scissors or side cutters (not supplied)
◾
Two combination wrenches (supplied)
1. Remove the plastic cover from the tractor.

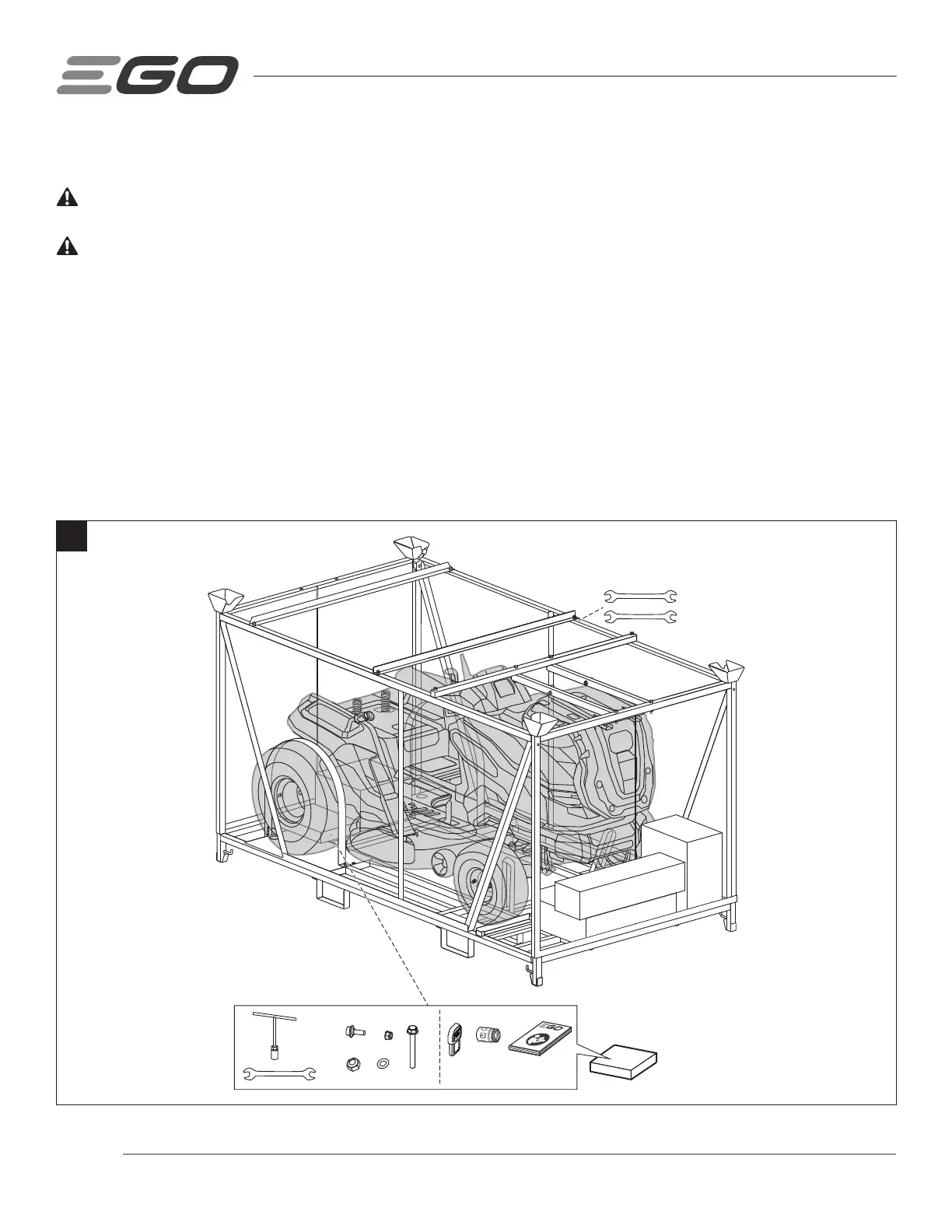

2. Cut the nylon straps and remove the accessory box located under the rear of the tractor, then open the box and
remove the two combination wrenches located inside (Fig. 3a).
3. Use the 13mm ends of the combination wrenches to remove all 28 bolts that hold together the frame and the seat
(Fig. 3a), then remove the frame and the seat.
NOTE: To simplify and speed up the process, use an impact wrench with a 1/2 in (13 mm) socket (not supplied).
x2 (+1) x2x4 (+1)
x1 (+1) x2
x1
x1 (+1)
x2
x1
x1
13 15
13 15
13 15
3a
Accessory Box
Required for assembly
