13
REPAIR PARTS
TRACTOR - - MODEL NUMBER PD17542LT (96012001101)

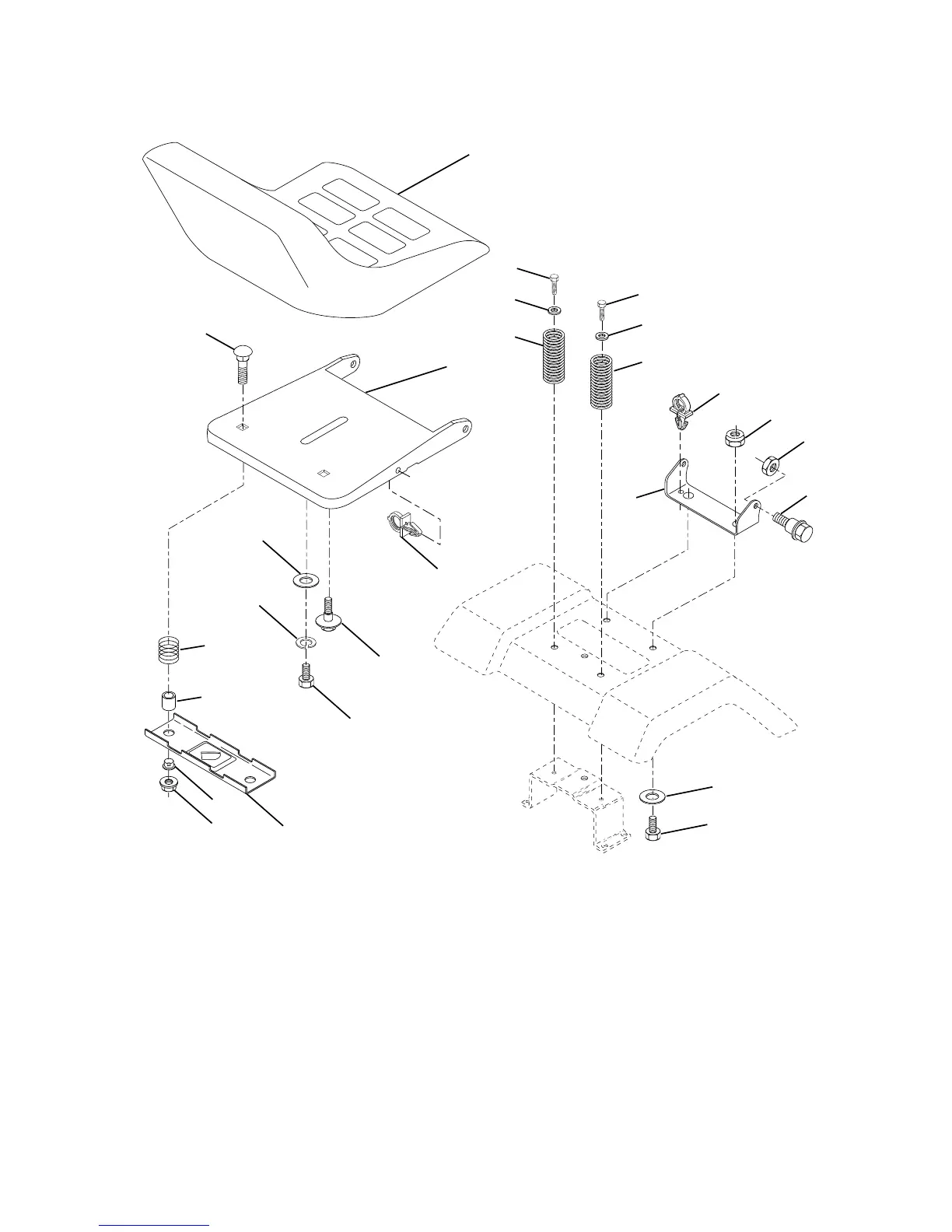

SEAT ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
14 72050412 Bolt Rdhd Sht Nk 1/4-20 x 1-1/2
15 134300 Spacer Split 28 x 96 Yel Zinc
16 121250X Spring Cprsn 1 27 Blk Pnt
17 123976X Nut Lock 1/4 Lge Flg Gr. 5 Zinc
21 171852 Bolt Shoulder 5/16-18 unc Blkz-2A
22 73800500 Nut
23 71110814 Bolt Hex Black
24 19171912 Washer 17/32 x 1-3/16 x 12 Ga.
25 127018X Bolt Shoulder 5/16-18 x 62
26 10040800 Lockwasher
26
23
1
24
16
15
12
13
17
25
4
3
8
9
7
8
9
7
2
6
22
21
5
10
5
14
seat_lt.bolt_1
1 175389 Seat
2 140551 Bracket Pnt Pivot Seat (blk)
3 188978 Bolt
4 189116 Washer 13/32 x 1 x 10 Ga.
5 184774 Clip Push-In Hinged
6 73800600 Nut
7 124181X Spring Seat Cprsn 2 250 Blk Zi
8 17000616 Screw 3/8-16 x 1.5
9 19131614 Washer 13/32 x 1 x 14 Ga.
10 182493 Pan Pnt Seat (blk )
12 174648 Bracket Pnt Mounting Switch
13 121248X Bushing Snap Blk Nyl 50 Id
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
