487 03 29 91
21.1
21. Automatic unit
21
Service
manual

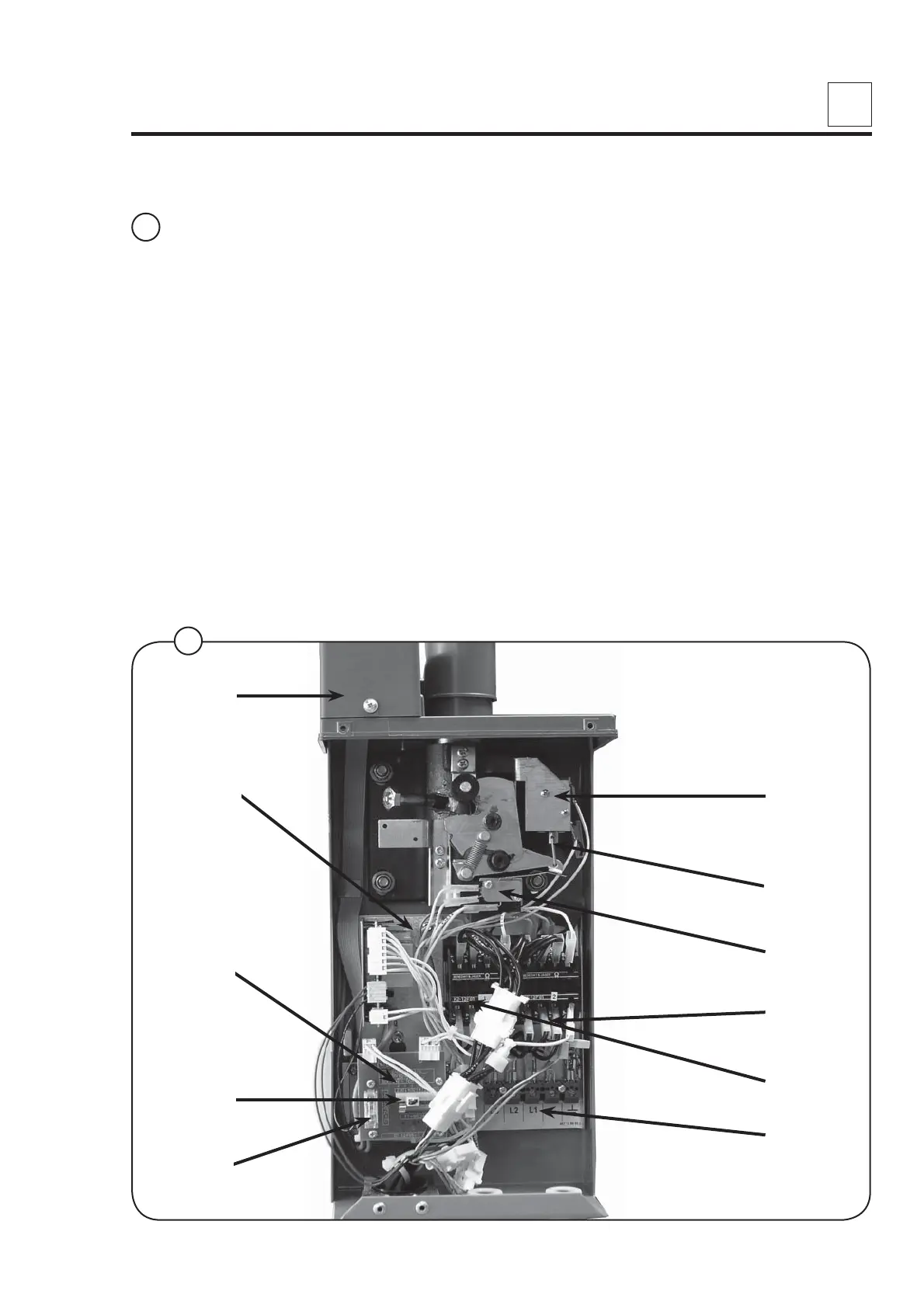

Component units
(230V 50 Hz; 400- 415V 50 Hz and 440V 60 Hz)
K1 Relay, extraction
K2 Relay, brake
T1 Auxiliary transformer - supplies power to the electronics unit, and provides
control voltage 24 V AC to components. The transformer is switchable for mains
voltages: 230 V, 400 V, 415 V and 440 V.
F1 Precision fuse M 0.2 A/500 V - protects primary side of auxiliary transformer.
F2 Precision fuse T 2.5 A/500 V - protects secondary side of auxiliary.
SW1 Microswitch - detects position of lid lock.
CP Control panel with push-button and indicator lights.
Y1 Lock magnet - operate the lid lock.
MP Circuit board.
X1 Terminal connection.
1
1
T1
Y1
F2
MP
F1
SW1
K2
K1
X1
CP
Lid lock
