Electrolux CARAVAN AES II RM 6505 User Manual

Cross-sections
The D+ (alternator) is a signal cable and therefore 1-1.5
mm
2
is sufficient.
Connection to 12 V + and - must be done with a 10 mm
2
wire if the total wire length (+ and - wire together) is
maximally 12 m.
If longer wires are required a bigger cross-section cable
is needed.
Please consult a specialist, if you are not famil-
iar with the 12 V electrical system in your motor
home.
Interior light - bulb - change
If the bulb has to be replaced, proceed as follows:
1. Remove the cover from the lamp body by pushing it
backwards.
2. Remove the bulb.
3. Put in a new bulb (12 V, max. 5 W).
Spare part number for bulb: 200 72 90-03.
4. Push the lamp cover back in place.
TECHNICAL DATA
RM 6505
Overall dimensions, refrigerator
Height (incl. controls) .................. 1245 mm
Width .......................................... 525 mm
Depth (incl. cooling unit)
with door ..................................... 545 mm
without door ................................ 495 mm
Recess dimensions
Height ......................................... 1248 mm
Width .......................................... 530 mm
Depth .......................................... 510 mm
Capacity
Gross .......................................... 135 litres
Net .............................................. 124.5 litres
Frozen food compartment .......... 23.5 litres
Weight (without packaging) ........ 44 kg
Electrical data
Input 230-240 volt .................. 220 watt
12 volt .................. 175 watt
* Energy consumption (in 24h) ... 3 kWh
LP gas data
Input, max. .................................. 0.34 kW
* Energy consumption (in 24h) ... 300 g
Cooling medium: Ammonia
* Average consumption in 24 h at 25°C mean annual
ambient temperature according to ISO standards.
Subject to alteration without notice.

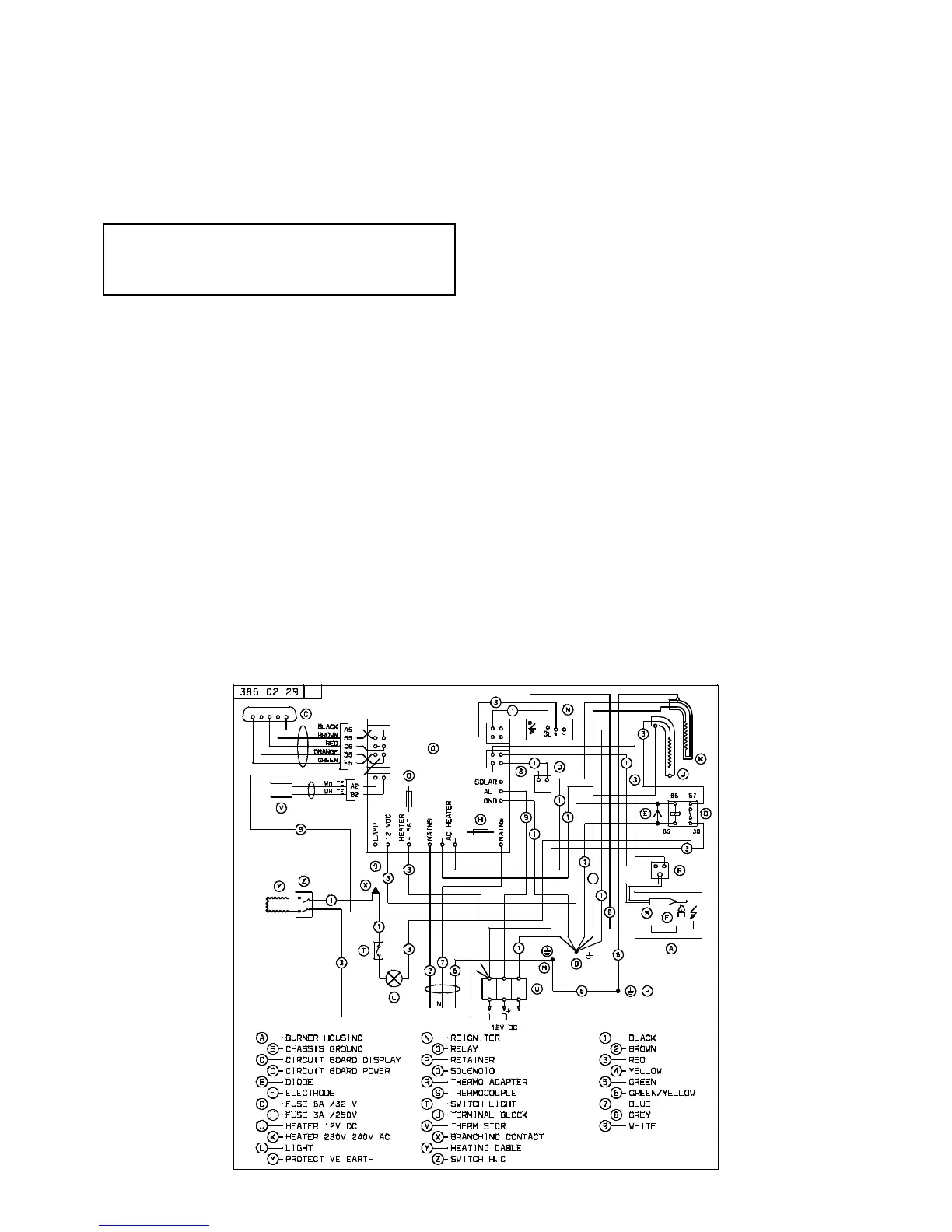

Wiring diagram RM 6505
19
