8
• Switch harness assembly and low voltage wiring.
•
Ignition spark plug and lead assemblies. These are fastened to the burner bases by retaining clips,
located on the underside of the burner base.
•
Ignition pack. For models without a separate ignition switch this is clipped to the base or attached
with double sided adhesive. For models with a separate ignition switch this is fastened to the hob
with a retaining nut. Observe the active & neutral are correctly connected in accordance with the
markings on the ignition pack when replacing this unit.

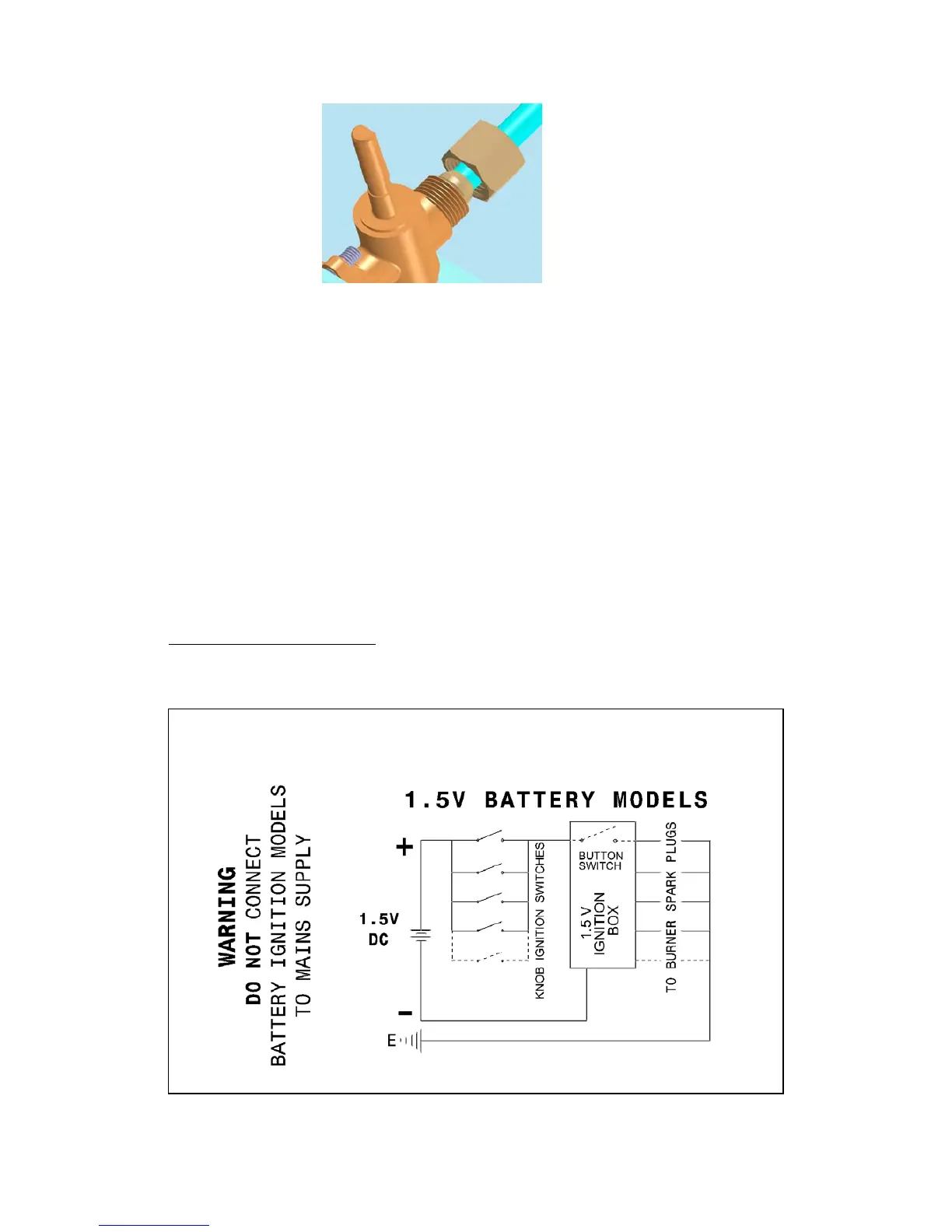

6.WIRING DIAGRAM
