Gas from the tank (1) is released from the low pressure regulator (2) into the hose or tube (3),
travelling pass the elbow coupling to the valve (4). To ignite the burner, press down and turn the
safety valve (5) counter-clockwise simultaneously. This opens up the valve, letting the gas to the
nozzle of the burner (6), and turns the ignition switch to on (7) at the same time. The electrical
current is automatically supplied from the battery to spark plug generator (8), and then to the pin
heads (9), causing the ignition (10). The burner is ignited and bursts into flame (11).

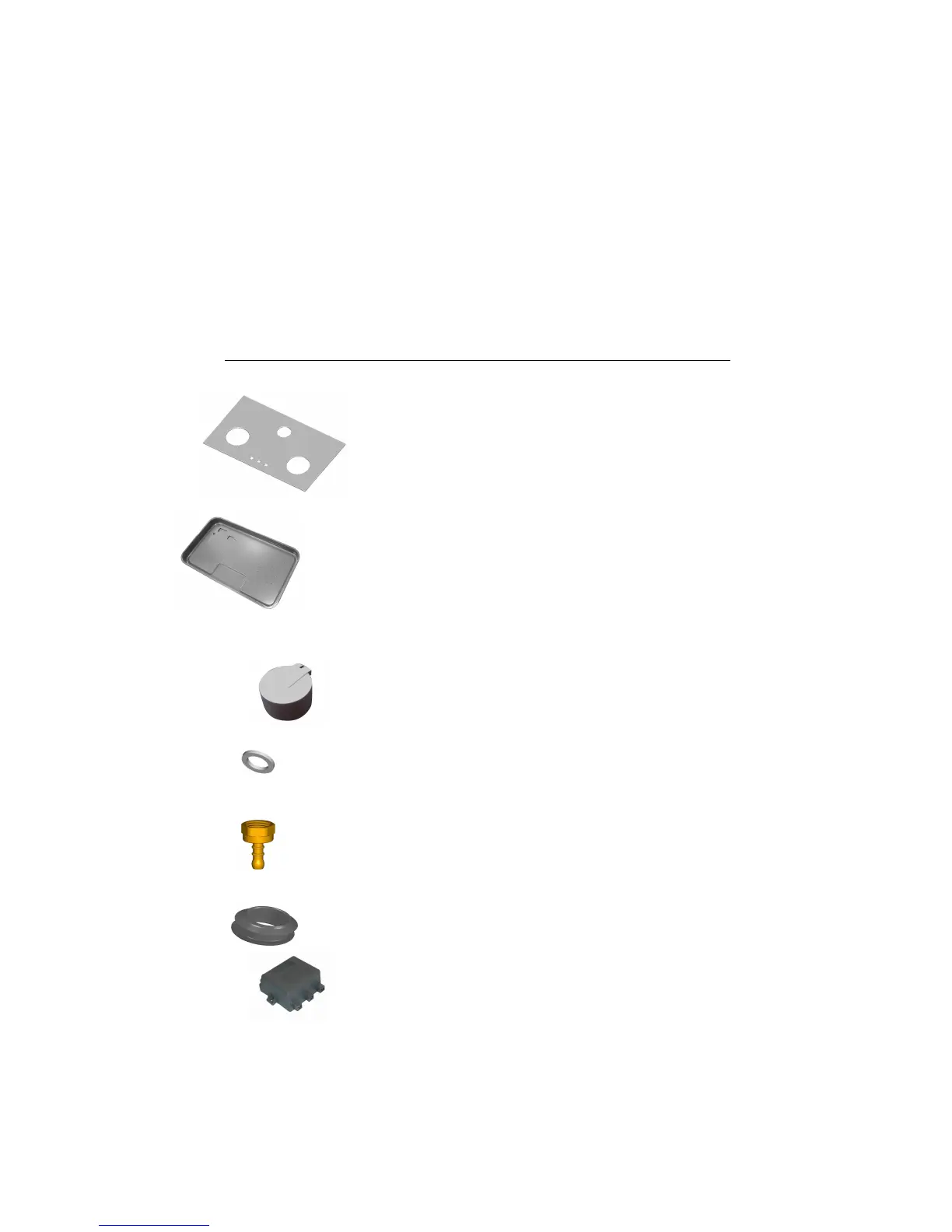

3. COMPONENTS SPECIFICATION & ACCESSORIES
- Glass 3B : Float glass 8.0x460x760 mm
- Bottom plate forming : Zinc coat
- Knob : heat + flame resistance >17
- Washer : fiber
- Hose end : Brass (size1/2)
- Rubber grommet (glass model) : Silicone heat resistance
- Spark generator 4p : 1.5Vdc+90C+electrode10KV
