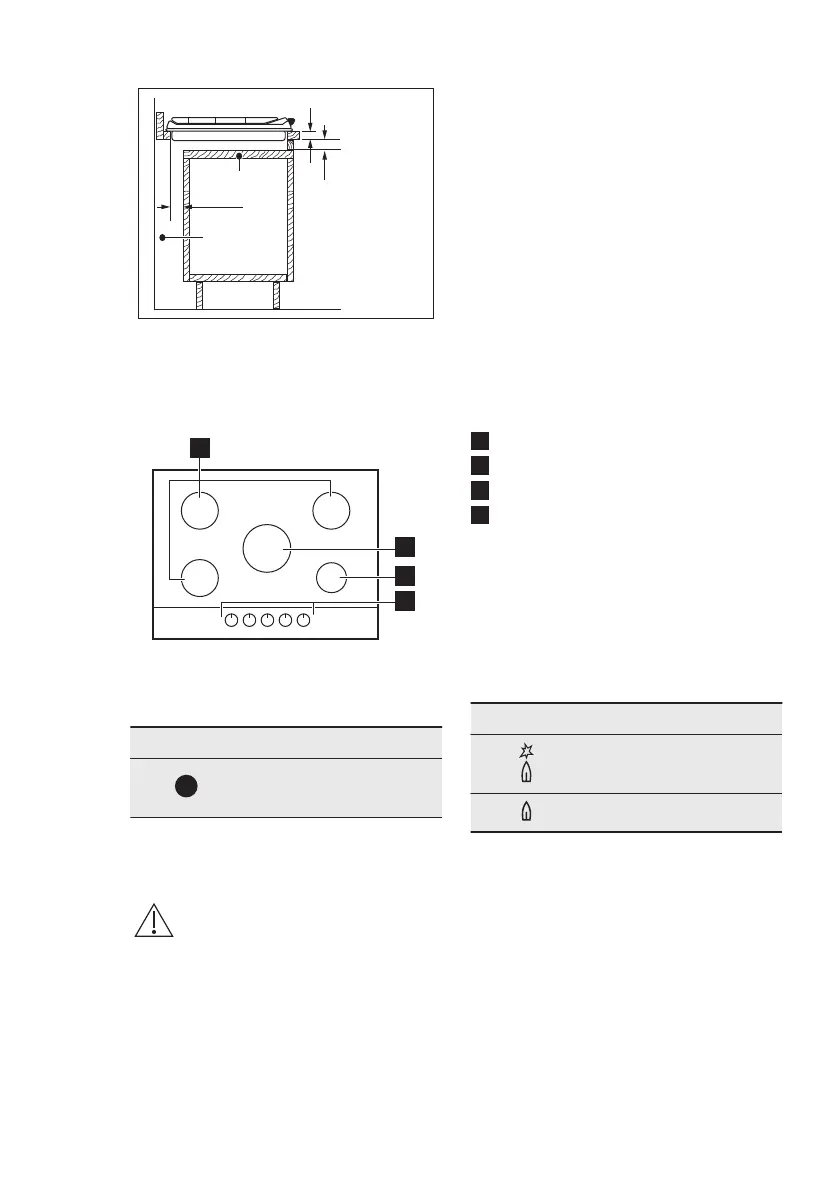

Kitchen unit with door
min 20 mm
(max 150 mm)
30 mm
60 mm
B
A
A. Removable panel
B. Space for connections
Kitchen unit with oven
The electrical connection of the hob and
the oven must be installed separately for
safety reasons and to let easy remove
oven from the unit.
4. PRODUCT DESCRIPTION
4.1 Cooking surface layout
1
Semi-rapid burner
2
Multi Crown burner
3
Auxiliary burner
4
Control knobs
4.2 Control knob
Symbol Description
no gas supply / off posi‐
tion
Symbol Description
ignition position / maxi‐
mum gas supply
minimum gas supply
5. DAILY USE
WARNING!
Refer to Safety chapters.
ENGLISH 11
