15
Electrical Specifications

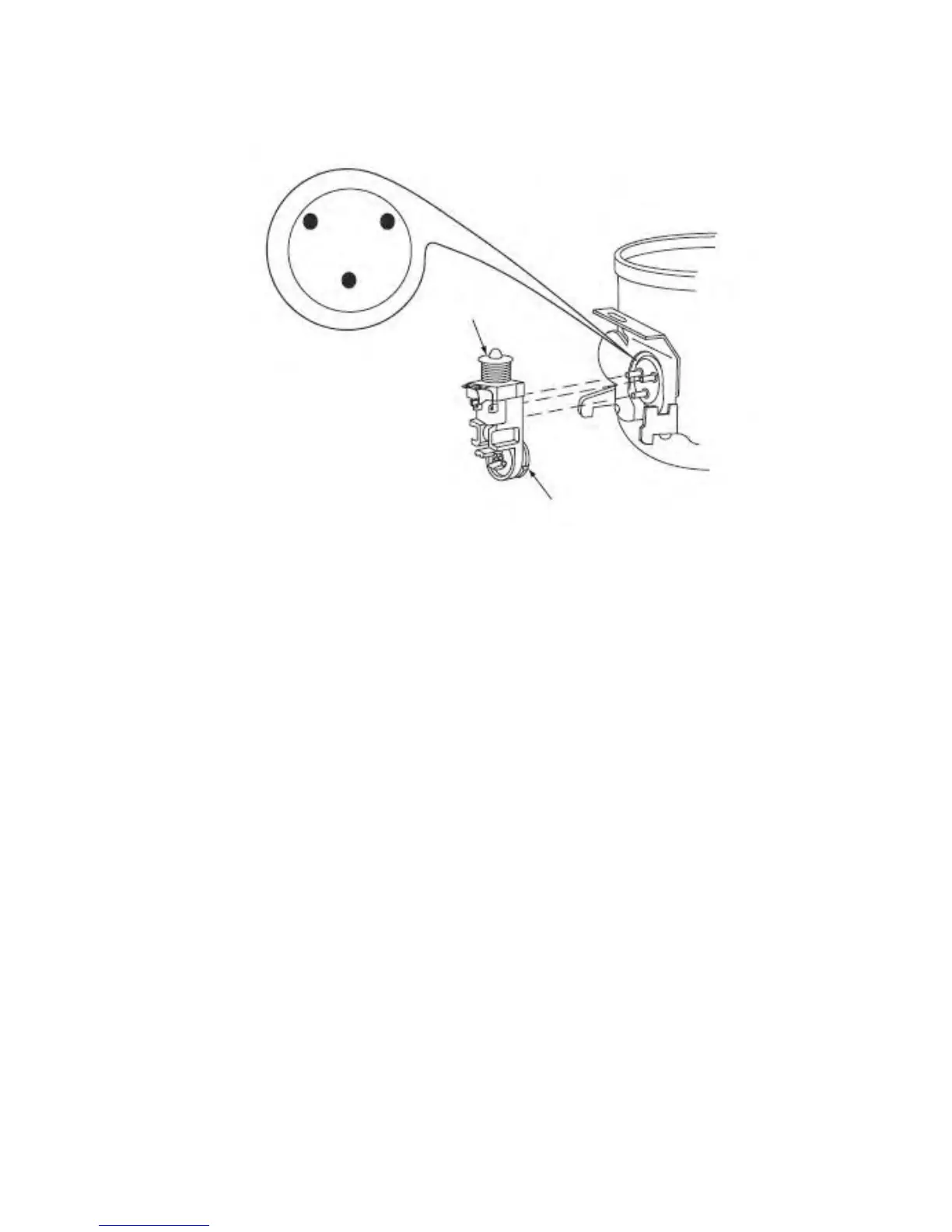

Compressor Pins:
To measure start winding resistance, measure across the C-S pins.
To measure run winding resistance, measure across the C-R pins. These pins should never measure any
resistance to ground. This would indicate a shorted compressor.
Specifications:
Compressor Start Winding: 12.0 OHMS.
Compressor Run Winding: 2.9 OHMS.
Water Valve Coil Resistance: 280 OHMS.
Bypass Coil Resistance: 380 OHMS.
Pump Motor Winding Resistance: 71.5 OHMS.
C
R S
STARTING
RELAY
3/4" OVERLOAD
PROTECTION
