3.2
Power
Module

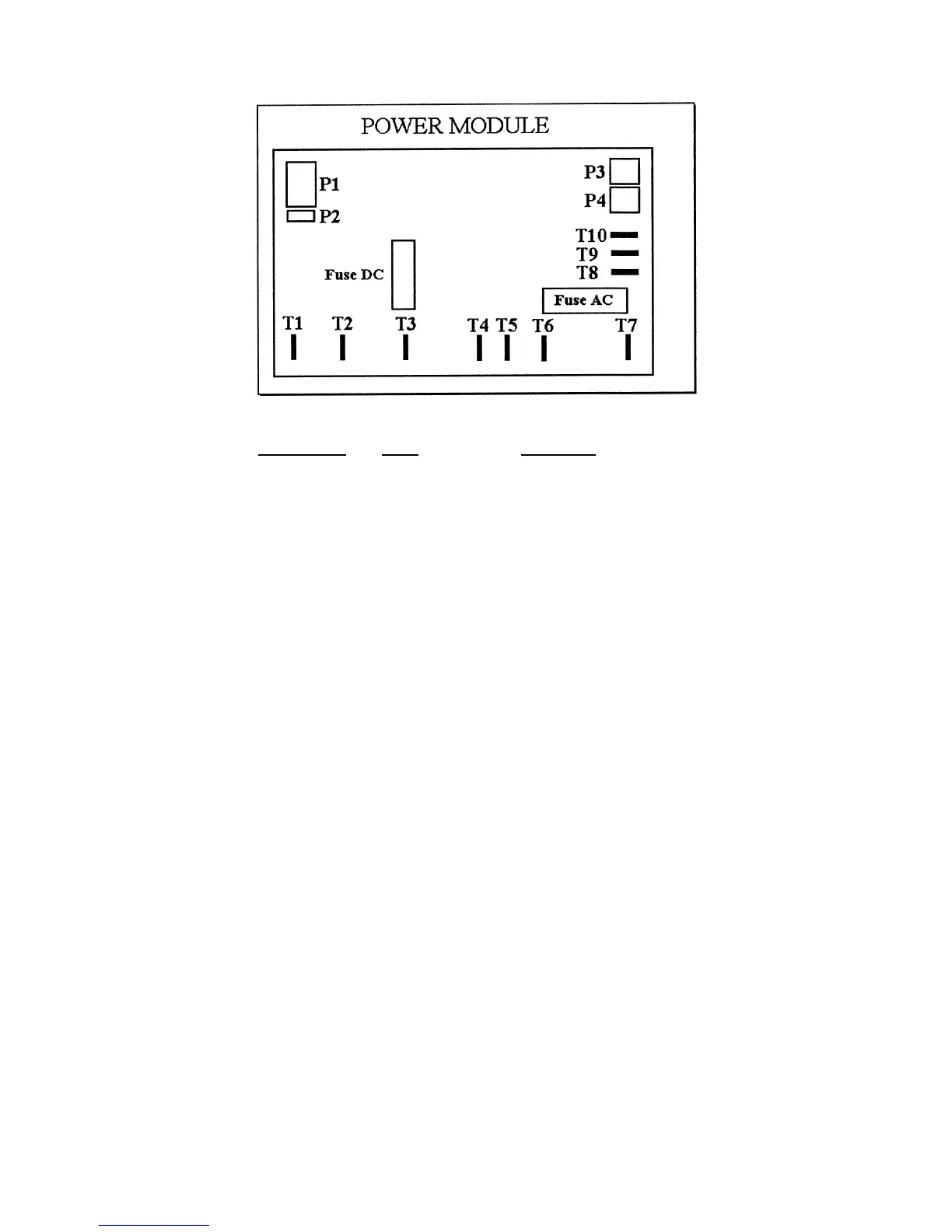

Connections
6
Connection
T
ype
Definition
P1
I/ O
Connection
cable
display/ power
module
P2
I
T
emperature
sensor
P3
I/
O
Reigniter
P4
O
Lifting magnet
T1
O
12V
DC
lighting
T2
O
12V
DC
heating element
T3
I
12V
DC power
supply
(+)
T4
I
230V
AC
T5
O
230V
AC
heating
element
T6
O
230V
AC
heating
element
T7
I
230V
AC
T8
I
Ground
T9
I
Generator
(D+)
T10
I
Solar
system
5
7
Table of Contents
Default Chapter
2
Table of Contents
2
1 Model Description
3
2 AES II System Function
3
Priorities
3
Switchover Times / Time Delays
3
Low Voltage Operation
4
Tank Stop
4
Thermostat Sensor
4
3 Technical Descriptions
5
Block Diagram
5
Power Module Connections
6
Display Module
7
Power Module
8
Ignition Device
8
Thermocurrent Adapter
8
4 Installation
8
5 Troubleshooting
8
Diagnostics Mode
8
Error Analysis and Elimination
9
Gas Operation
9
Interior Light
10
6 Wiring Diagram
11
7 Spare Parts Numbers
12
8 Service Bulletins
13
9 Operation of AESII with Solar
17
