Chapter 3 – Mounting
General Mounting Information
The OSD text can be rotated through the OSD menu to better suit your mounting orientation.
The holes located on the sides and top of the touchmonitor case are for ventilation. Do not
block, cover, or insert anything inside the ventilation slots.
Rear VESA Mount

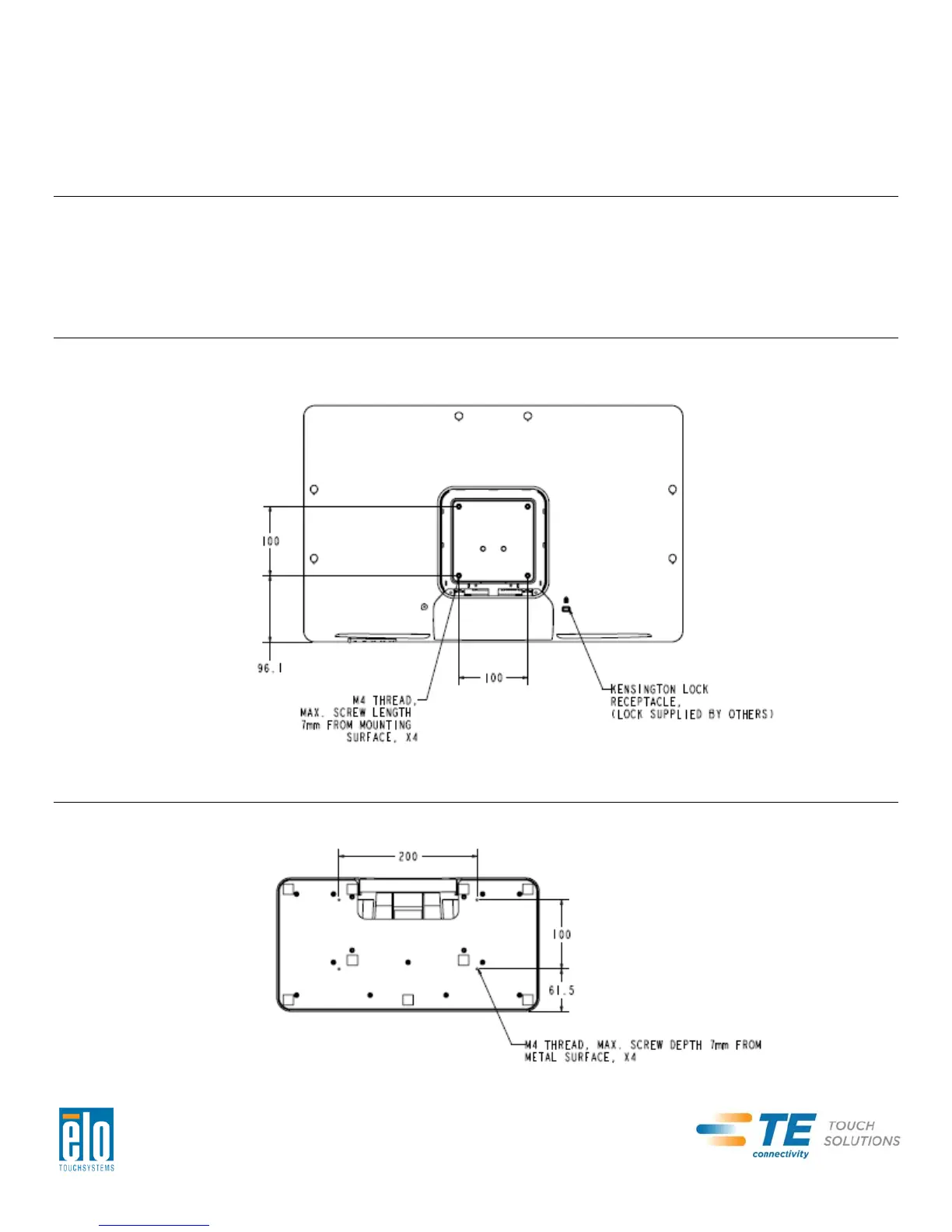

A four-hole 100x100mm mounting pattern for M4 screws is provided on the rear of the
monitor. Remove the stand using a Phillips screwdriver to access this mounting interface.
The VESA FDMI-compliant mounting is coded: VESA MIS-D, 100, C
Stand Mounting
Threaded through-holes are provided on the bottom of the stand base for mounting or
securing.
User Manual – 2201L
SW601363 Rev B - Page 10 of 22
