Touchmonitor Connections

1. Connect the DVI or VGA video cables between the monitor’s DVI/VGA input connectors and

your DVI/VGA video source, respectively. Tighten the video cable’s screws for best

performance.

2. Connect the USB touch cable between the monitor’s USB connector and your PC’s USB

port.

3. Connect the audio cable between the monitor’s Audio In jack and your audio source.

4. Select the correct power cable for your region. Connect the cable between the AC power

source and the power adapter’s input connector. Connect the power adapter’s DC output

connector to the monitor’s input power jack.

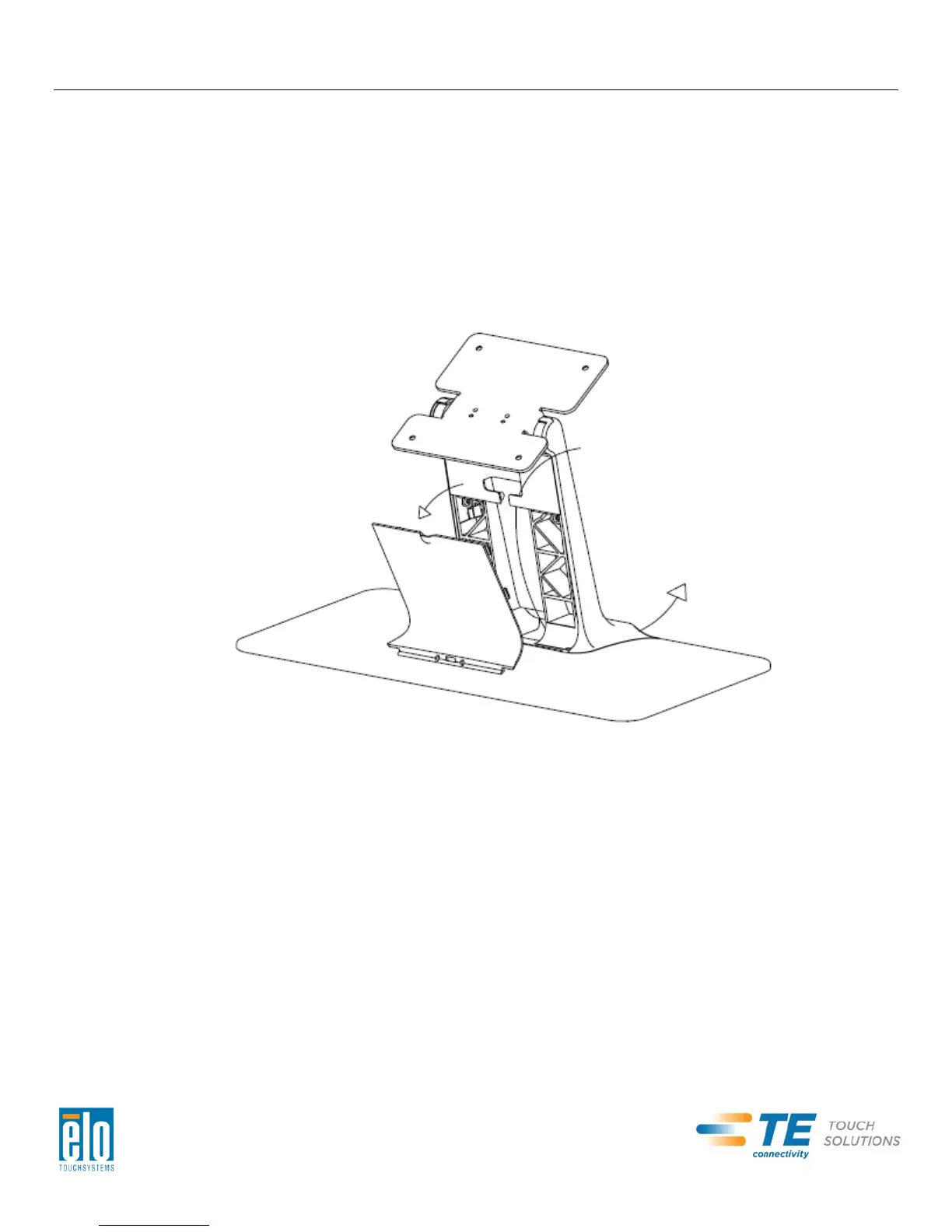

5. Replace the cable cover, if desired. Cables can be routed inside the stand – remove and

replace the stand cable cover for access and routing.

6. The touchmonitor ships in an OFF state. Press the power button to turn it on.

User Manual – 2201L

SW601363 Rev B - Page 6 of 22
