Elo TouchSystems LCD User Manual

2-9
Attaching the L-Brackets
Depending on your mounting scheme, use the L-brackets or the VESA 75mm
standard holes located on the back of the kiosk monitor. See page 15 for VESA
mounting information.
N OTE : You will need a screwdriver to attach the L-brackets.
Your kiosk touchmonitor comes with a mounting bracket (C-bracket) attached
at the back. Included are two L-brackets (and four screws) that attach to both
ends of the C-bracket for additional mounting options.
To attach the L-brackets:
1 Lay the monitor face down.
2 Place the long end of the L-bracket against the end of the mounting
C-bracket. Line up the two holes of the L-bracket with the two holes of the

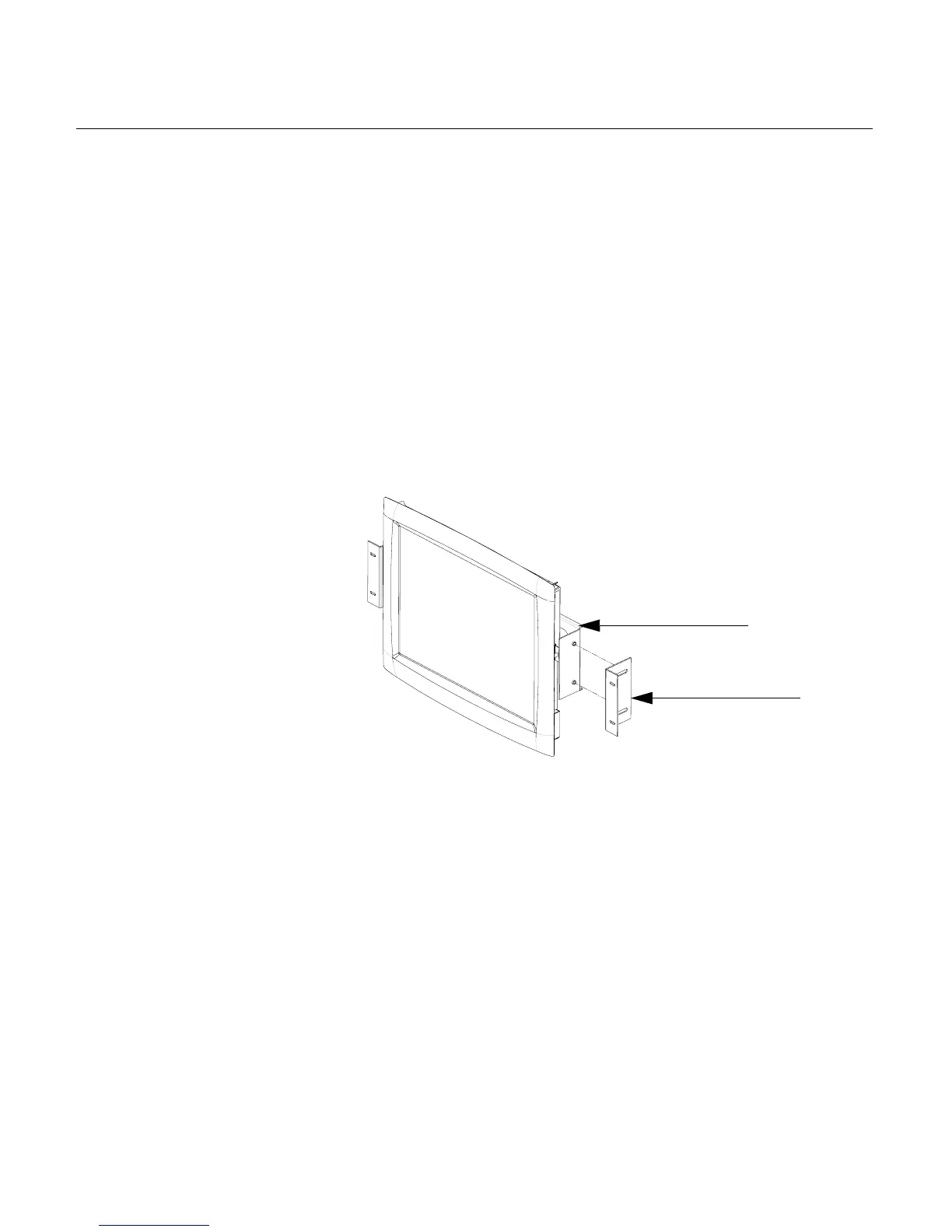

C-bracket. See the illustration below.
3 Place two screws in the holes and with the screwdriver, screw them in to
secure the bracket.
4 Repeat steps 2 and 3 to attach the other L-bracket to the other side of the
mounting bracket.
C-bracket
L-bracket
