EMC AX4-5 User Manual

− For the AX4-5i or AX4-5SCi, two Gigabit Ethernet (GigE)
ports
 Two power supply/system cooling (power/cooling) modules

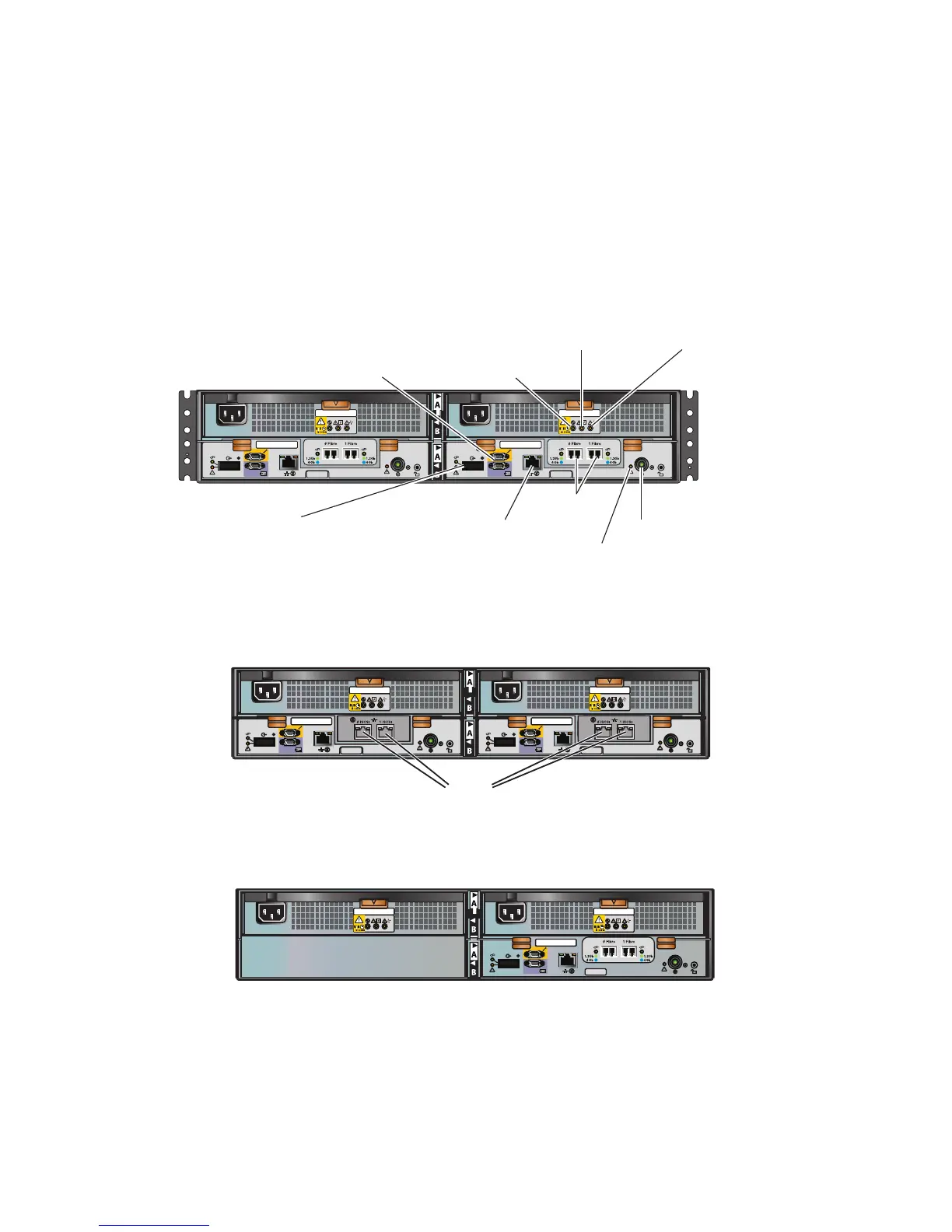

Figure 1 shows an AX4-5 DPE-AX, which has Fibre Channel I/O
modules.
FRU Label FRU Label
CL3914
Expansion DAE
SPS management
Power/cooling module
cooling fault LED
Power supply
fault LED
Power supply on
Fibre
SP service
SP management
SP fault LED
SP power LED
Figure 1
AX4-5 DPE-AX (rear view – two FC port version)
Figure 2 shows an AX4-5i DPE-AX, which has iSCSI instead of Fibre
Channel I/O modules.
FRU Label FRU Label
CL3771
iSCSI
Figure 2
AX4-5i DPE-AX (rear view)
Figure 3 shows an AX4-5SC DPE-AX with a single storage processor.
FRU Label FRU Label
CL3853
Figure 3 AX4-5SC DPE-AX (rear view — two FC port version)
Figure 4 shows an AX4-5SCi with a single storage processor.
Hardware and Operational Overview
3
