Please contact 1-800-654-3545 for further assistance
ETL Model No.: CF235
#6-32 x 1/4" PAN HEAD SCREWS
W/LOCKWASHERS (3)
LOWER
HOUSING
LIGHT FIXTURE
ADAPTER
REVERSE SWITCH
Figure 30
6.4

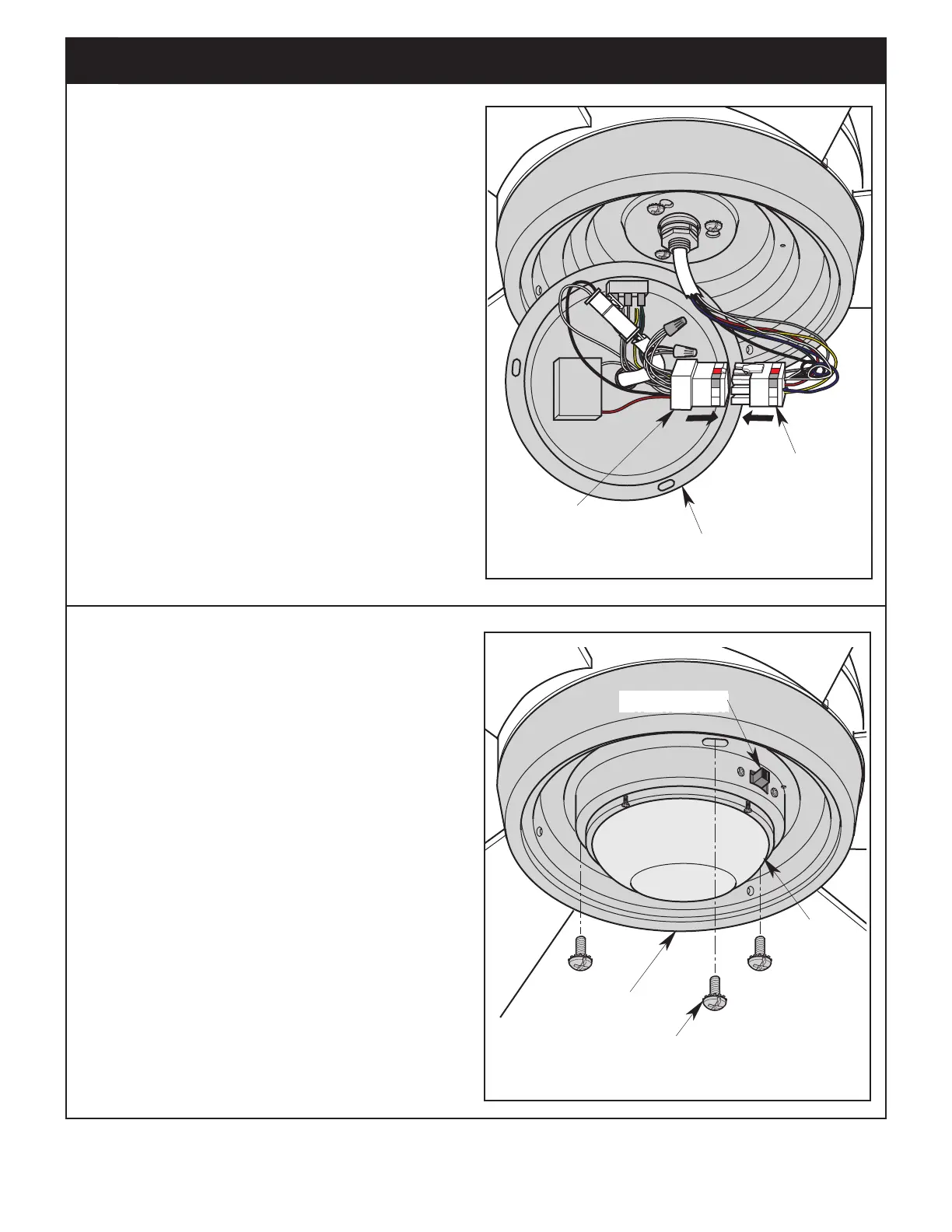

Position the LED Light Fixture Assembly on the Lower
Housing, aligning the Three Holes.
Secure the LED Light Fixture Assembly by installing
and tightening the Three #6-32 x 1/4” Pan Head
Screws with Lockwashers (supplied) (Figure 30).
A spare #6-32 x 1/4” Pan Head Screw with Lockwasher
supplied in parts bag, if needed.
6. Final Assembly (Continued)
LED LIGHT FIXTURE
ASSEMBLY CONNECTOR
A
L
A
L
FAN MOTOR
ASSEMBLY
CONNECTOR
LED LIGHT FIXTURE
ASSEMBLY
Figure 29
6.3
The two Connectors are Keyed and Color-Coded
and must be mated correctly (color-to-color) before
they can be engaged (L to L and A to A), as follows:
Engage the Fan Motor Assembly Color-Coded
Connector to the LED Light Fixture Assembly Color-
Coded Connector (Figure 29).
Make sure the Connector Latches closes properly
(Figure 29).
To Next Page
