November 2021
Installation, Operation and Maintenance Manual
DOC.IOM.RG.US Rev. 11
6
Section 3: Installation
Installation

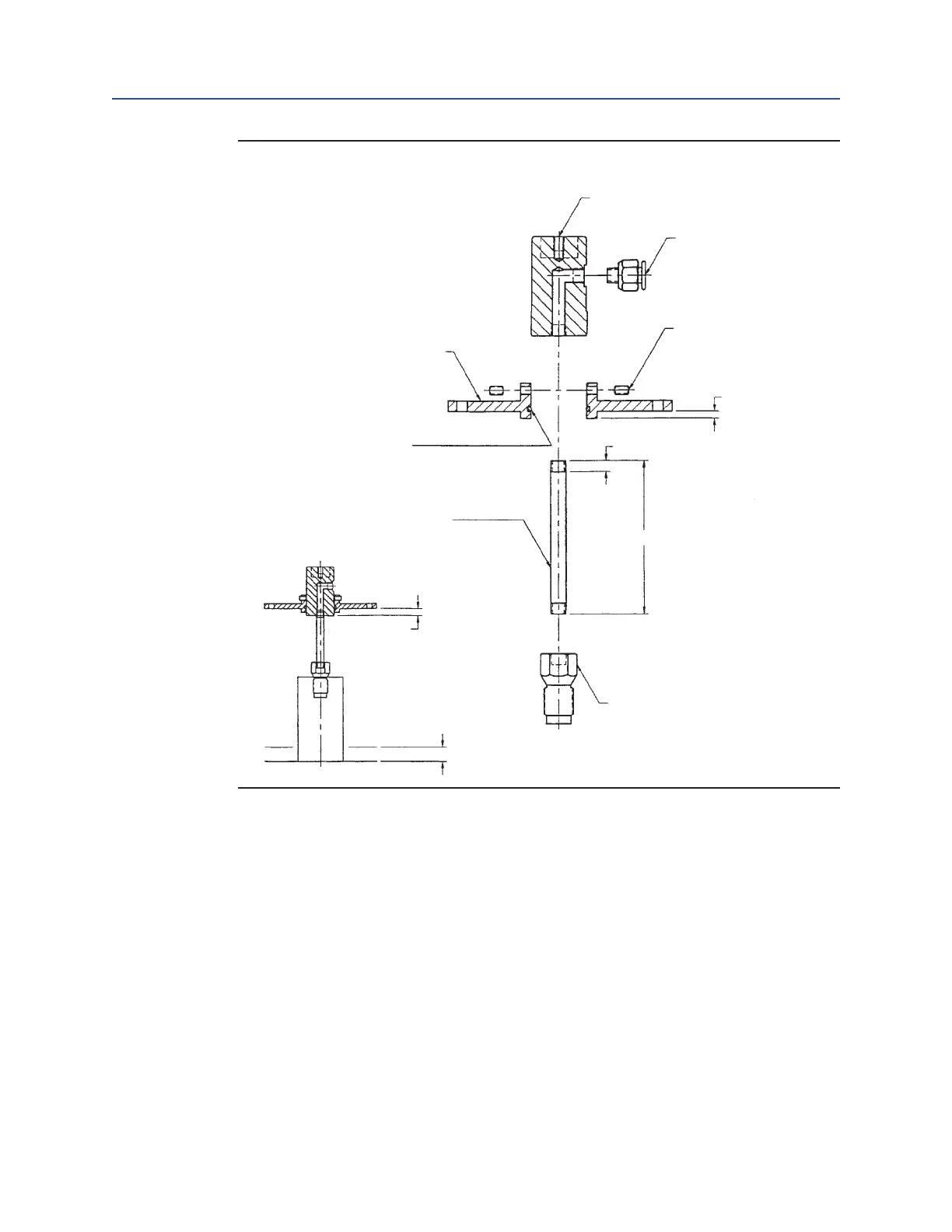

Figure 3 Typical lubricator extension to lubricator plug valve with rotary limit switch
Yoke Cover Hub
1/4 NPT
Button Head Lubricator
Fitting
5/16 NC set screw
2 PLCS
0.25 REF
"L" Typical
Lubricator Adapter
MTG Plate/Spool
0.50 REF
Pipe NPS 1/4
O-ring
Yoke Cover
0.40 REF
8. If necessary, adjust operator end stops for line valve fully open and fully closed positions.
(Stops are factory set for approximately 90° rotation). Refer to Figure 5.
a. Position operator against the appropriate stop to be adjusted.
b. Remove stop cover.
c. Adjust end-stop into or away from operator as required.
d. Position operator against stop if adjustment (c) was away.
e. Install and tighten stop cover, not to damage the o-ring.
