August 2015
Service Instructions
137463E Rev. D
18
Section 5: Field Conversions
Field Conversions
Section 5: Field Conversions
5�1 Fail Mode Reversal (CW to CCW, or CCW to CW)
5.1.1 Disassemble actuator. (Refer to Section 2)
5.1.2 Converting to CCW:
5.1.2.1 Assemble actuator with spring cylinder assembly on the right side of
housing and housing adapter assembly on left side using the orientation
below. (Refer to Section 3)
5.1.3 Converting to CW:
5.1.3.1 Assemble actuator with cylinder assembly on the left side of housing and
housing adapter assembly on right side using the orientation below.
(Refer to Section 3)

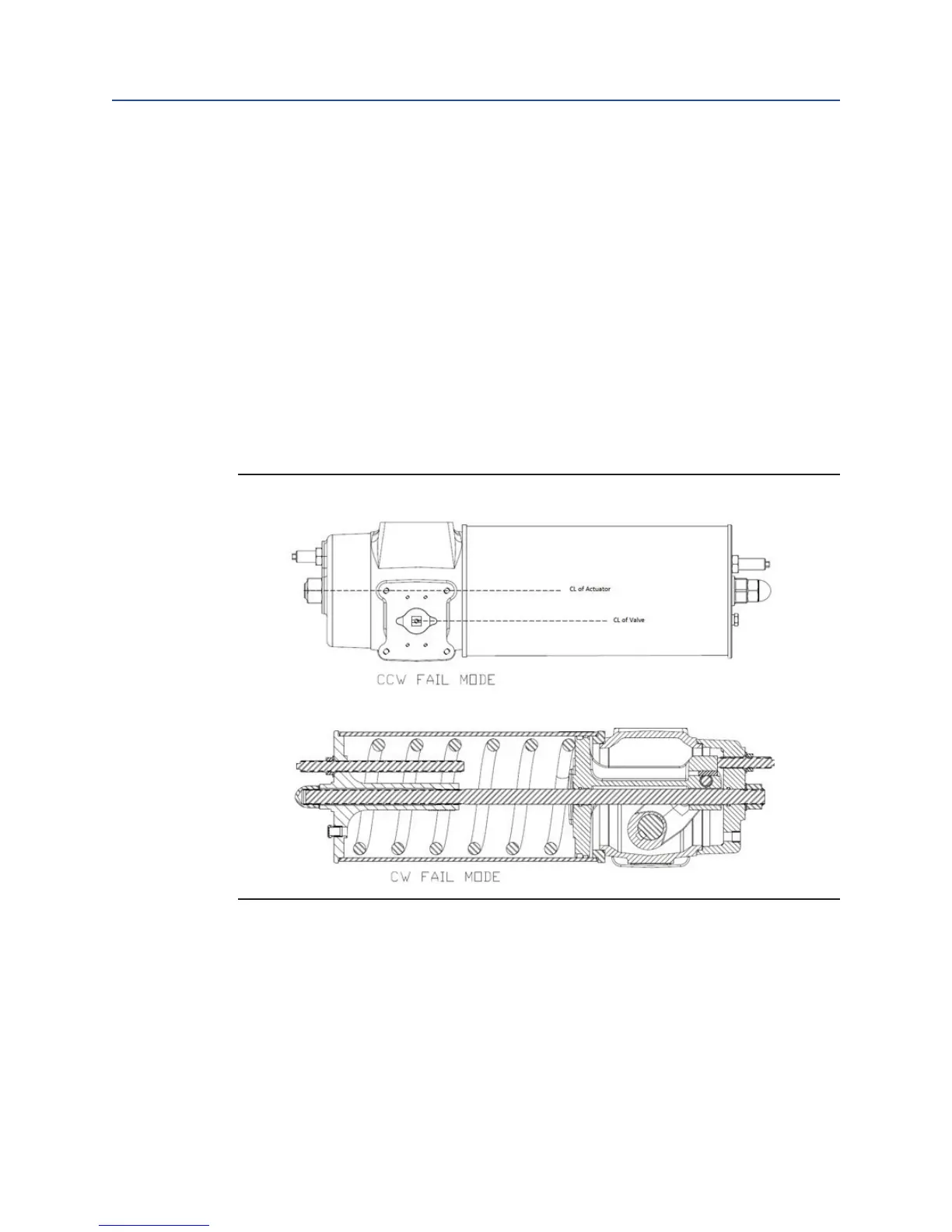

Figure 1 Fail Modes
