9
English
INTRODUCTION
PREPARATION WATCHING TV
USING FUNCTIONS
USEFUL TIPS
CONNECTING DEVICES
INFORMATION

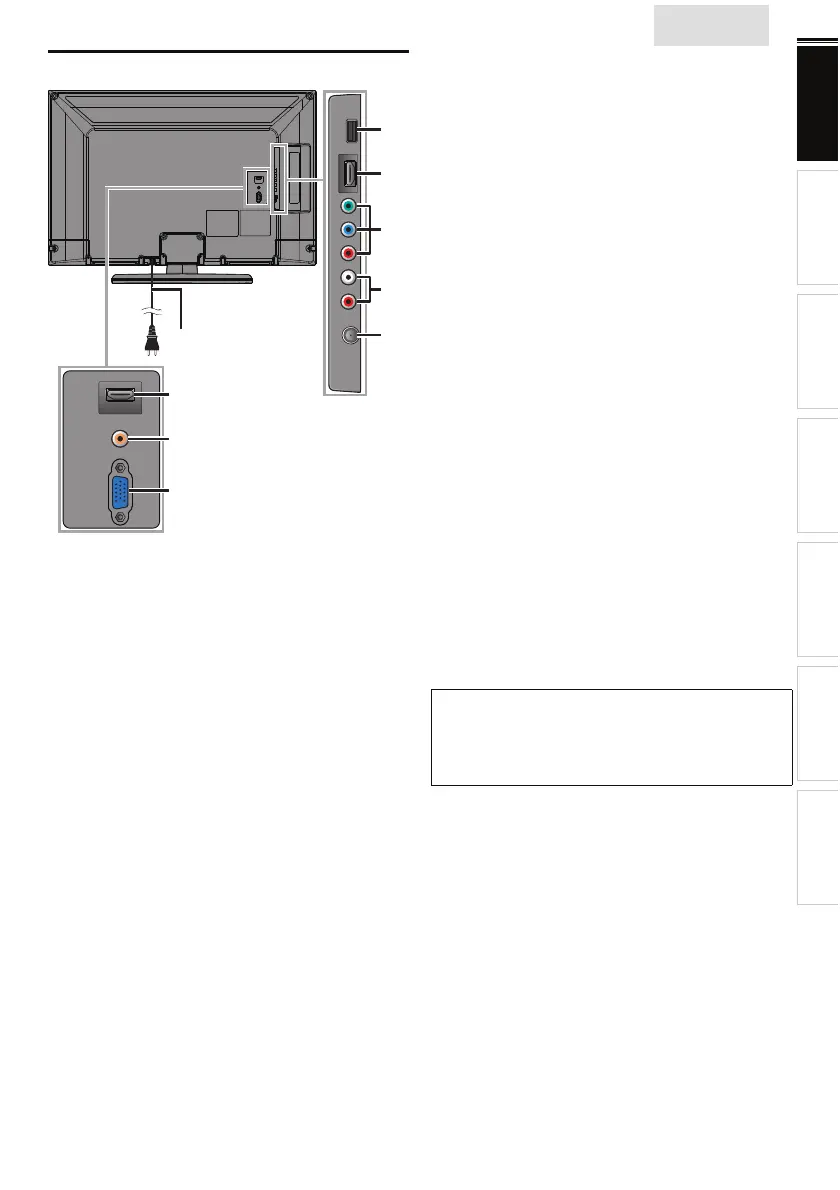

Terminals
DIGITAL
AUDIO OUT
(COAXIAL)
PC-IN
RGB
HDMI1
13
10
9
8
12
15
16
11
14
Side Panel
8 USB Terminal
➠
p. 27
Use this terminal only to play back the picture (JPEG) and
video (Motion JPEG) fi les stored on a USB storage device,
or when software update is needed.
9 HDMI 2 Input jack
➠
p. 10, 25
10 Component / Composite (VIDEO) Video Input jacks
for VIDEO
➠
p. 26
Composite Video Input jack (VIDEO) is shared jack with
Component Video Input (Y) jack.
11 Analog Audio (L/R) Input jacks
➠
p. 10, 25, 26, 27
Connect Analog Audio signals from
Component Video / Analog Audio (L/R) jacks signal or
HDMI-DVI / Analog Audio (L/R) jacks signal or
Composite Video / Analog Audio (L/R) jacks signal or
PC Connection / Analog Audio (L/R) jacks signal with
stereo mini plug conversion cable jack on PC.
Analog Audio (L/R) Input jacks are right below the
Component Video Input jacks. When the Audio is
monaural, then only connect to the Audio L Input jack.
12 Antenna Input jack
➠
p. 10
Rear Panel
13 AC power cord
➠
p. 10
14 HDMI 1 (HDMI-DVI) Input jack
➠
p. 10, 25
15 Digital Audio Output jack
➠
p. 26
16 PC (VGA) Input jack
➠
p. 27
Note for USB terminal
• User should not connect any devices to the USB terminal such as
digital camera, keyboard, mouse, etc. (because these will not work).
• The software update is, in most cases, handled by an authorized
service person or in some circumstances the user may be asked
to do the software update themselves.
To Next Page
