Emerson Control Techniques EN-208 Installation Manual

60
EN Drive Installation Manual
MG Motor Dimensions

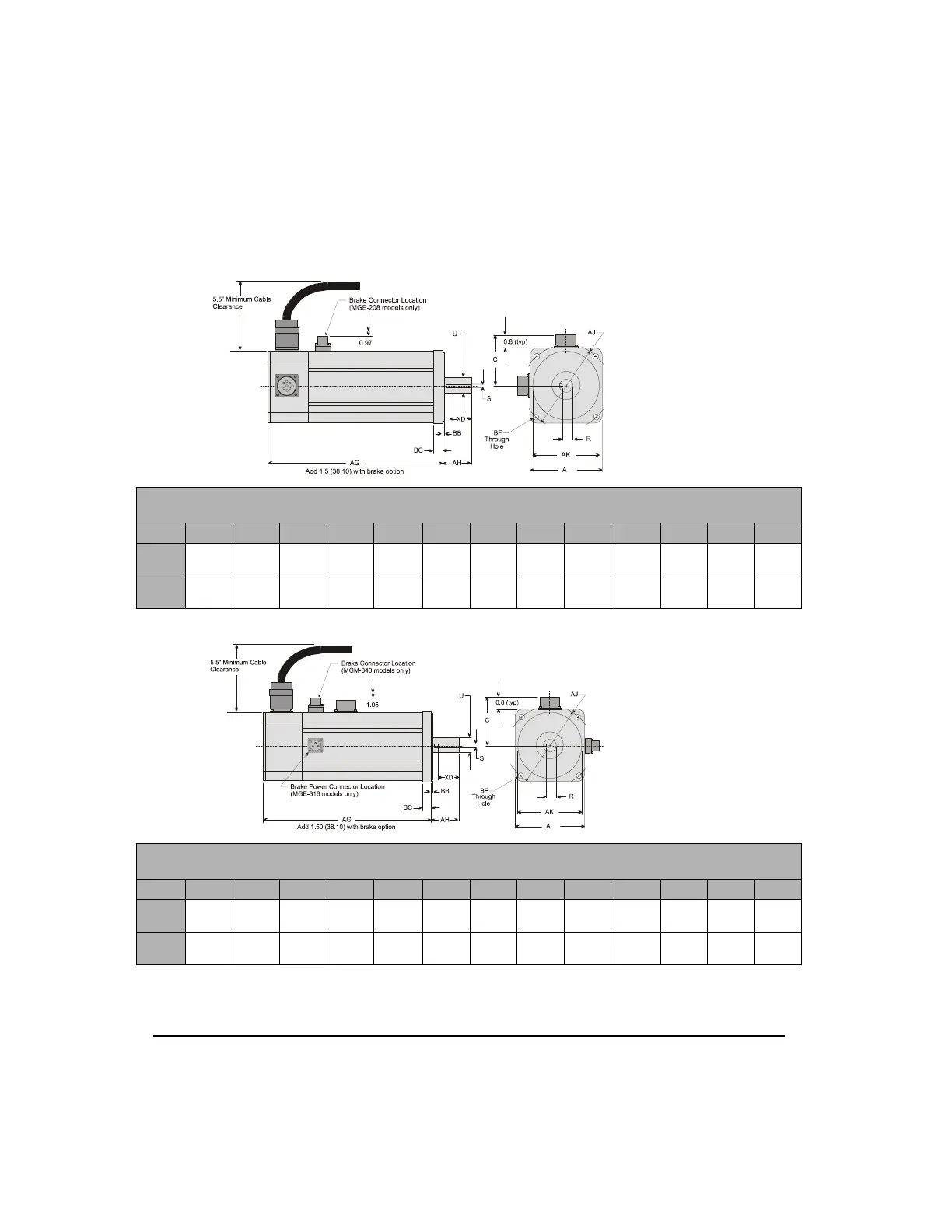

MGE-205 and 208 Motors
MGE-316 and 340 Motors
MGE-205 and 208 Mounting Dimensions
inches (mm)
AG A BC AH U Max XD S Min R C Max AJ BB AK BF
205
5.60
(143.0)
2.25
(57.2)
0.46
(11.2)
1.20
(30.5)
0.375
(9.525)
0.563
(14.3)
0.127
(3.23)
0.300
(7.62)
2.0
(51)
2.625
(66.68)
0.063
(1.60)
1.502
(38.15)
0.205
(5.21)
208
6.75
(171.4)
2.25
(57.2)
0.46
(11.2)
1.20
(30.5)
0.375
(9.525)
0.563
(14.3)
0.127
(3.23)
0.300
(7.62)
2.0
(51)
2.625
(66.68)
0.063
(1.60)
1.502
(38.15)
0.205
(5.21)
MGE-316 and MGM-340 Mounting Dimensions
inches (mm)
AG A BC AH U Max XD S Min R C Max AJ BB AK BF
316
7.24
(184.0)
3.31
(84.0)
0.44
(11.2)
1.21
(30.7)
0.4997
(12.69)
0.90
(22.9)
.1265
(3.213)
0.42
(10.7)
2.50
(64.0)
3.875
(98.43)
0.06
(1.600)
2.877
(73.08)
0.233
(66.0)
340
10.24
(260.1)
3.50
(89.0)
0.44
(11.2)
1.20
(30.6)
0.5512
(14.000)
0.787
(20.0)
.197
(5.00)
0.429
(10.90)
2.50
(64.0)
3.937
(100.00)
0.118
(3.00)
3.150
(80.01)
0.276
(7.01)
