Instruction Manual
D102175X012
EZ-C, ET-C, and EWT-C Valves
July 2017
23

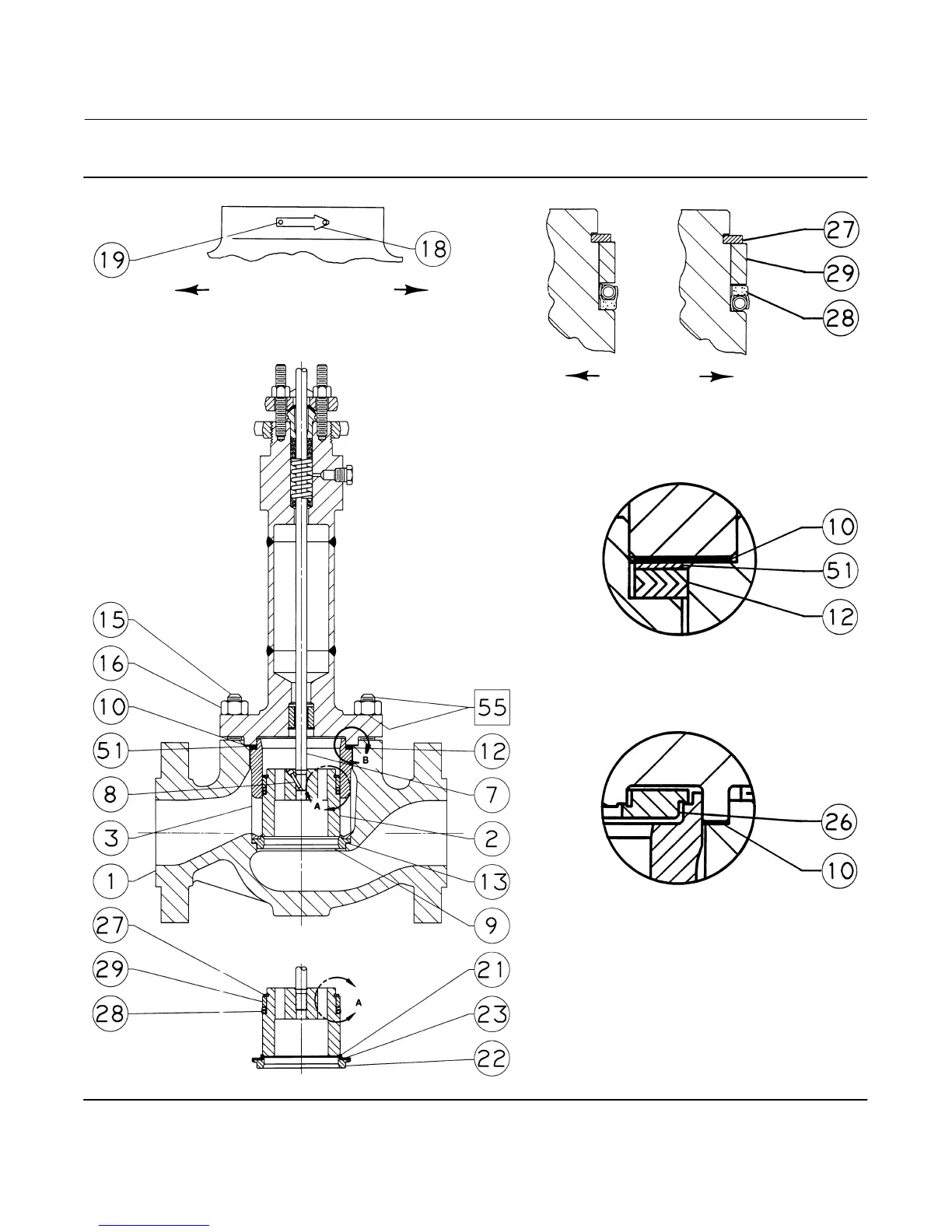

Figure 9. Fisher ET‐C and EWT‐C Valve Assembly
54B8568‐C
54B8579‐B
16A1943‐A
54B8568‐C
54B8568‐C
WHISPER TRIM
STD TRIM
CAVITROL TRIM
FLOW DIRECTION
VIEW A
FLOW UP
FLOW DOWN
ALL CONSTRUCTIONS EXCEPT
NPS 8 AND 10X8
FOR NPS 8 AND 10X8
CONSTRUCTIONS
VIEW B
METAL SEAT
COMPOSITION SEAT
