cable receiver or satellite box
with the DVI output jack
audio cables
audio cables
rear of this unit
rear of this unit
Note
For HDMI connection
•
The unit accepts 480i, 480p, 720p and 1080i of video signals, and 32kHz,
44.1kHz and 48kHz of audio signals.
•
This unit accepts only 2 channel audio signal (LPCM).
•
You need to select "PCM" for the digital audio of the device you connected
or check the HDMI audio setting. There may be no audio output if you
select "Bitstream", etc.
•
This unit accepts only signals in compliance with EIA861.

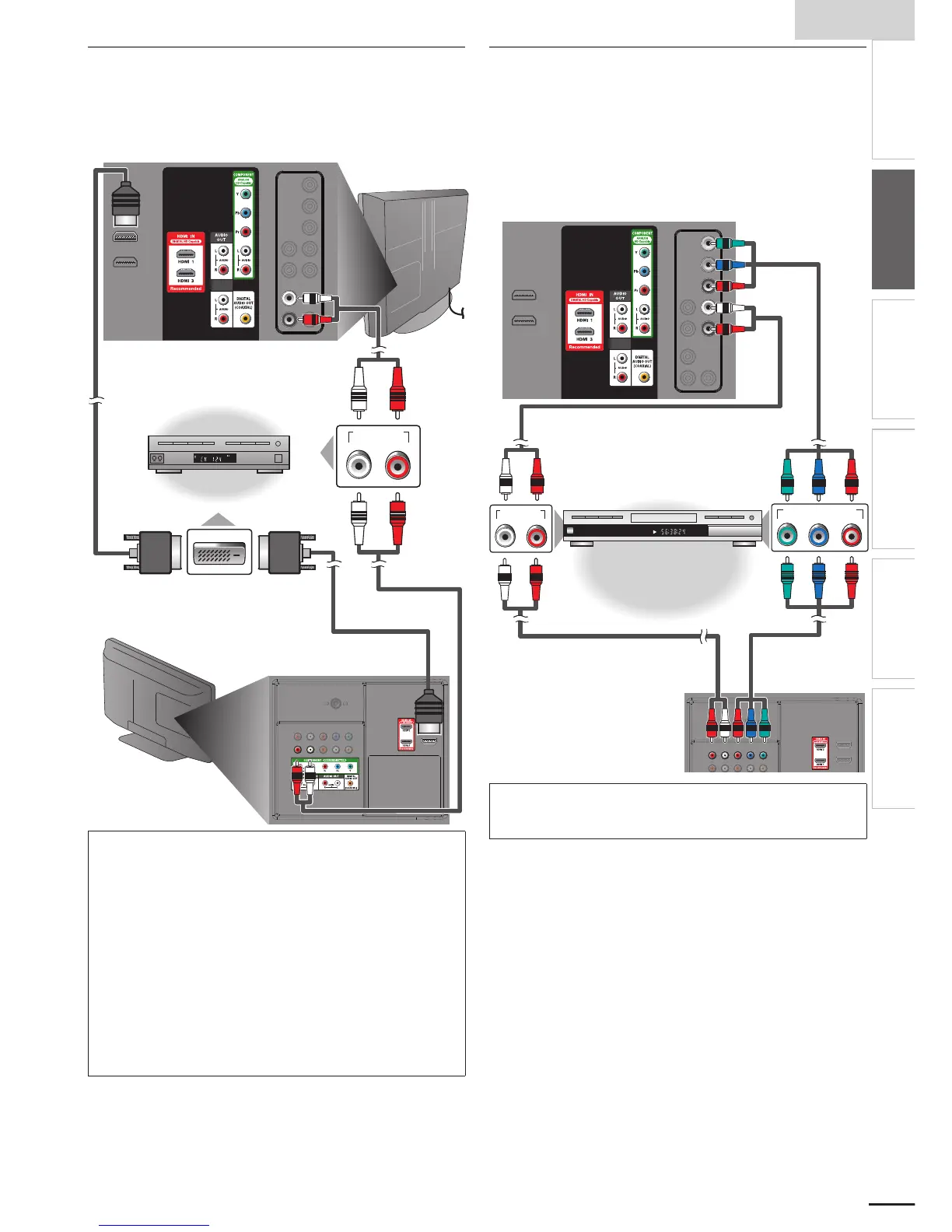

For HDMI-DVI connection
•
The unit accepts 480i, 480p, 720p and 1080i video signals.
•
HDMI-DVI connection requires separate audio connections as well and the
audio signals are converted from digital to analog.
•
DVI does not display 480i image which is not in compliance with EIA/
CEA-861/861B.
Component Video Connection
Component Video connection offers better picture quality for
video devices connected to the unit.
If you connect to the unit’s Component Video Input jacks,
connect audio cables to the Audio L/R Input jacks right beside
the Component Video connector.
e.g.)
CHAPTER 15
REPEAT A-B
TITLE 5
4
.
2T 2D
;
DVI
ANALOG
AUDIO
AUDIO OUT
RL
COMPONENT VIDEO OUT
Pr/CrPb/CbY
LC260EM1
LC320EM1F / LC320EM1
BD/DVD recorder with
the component video output jack
rear of this unit
rear of this unit
To Next Page
