Installation Instructions
11

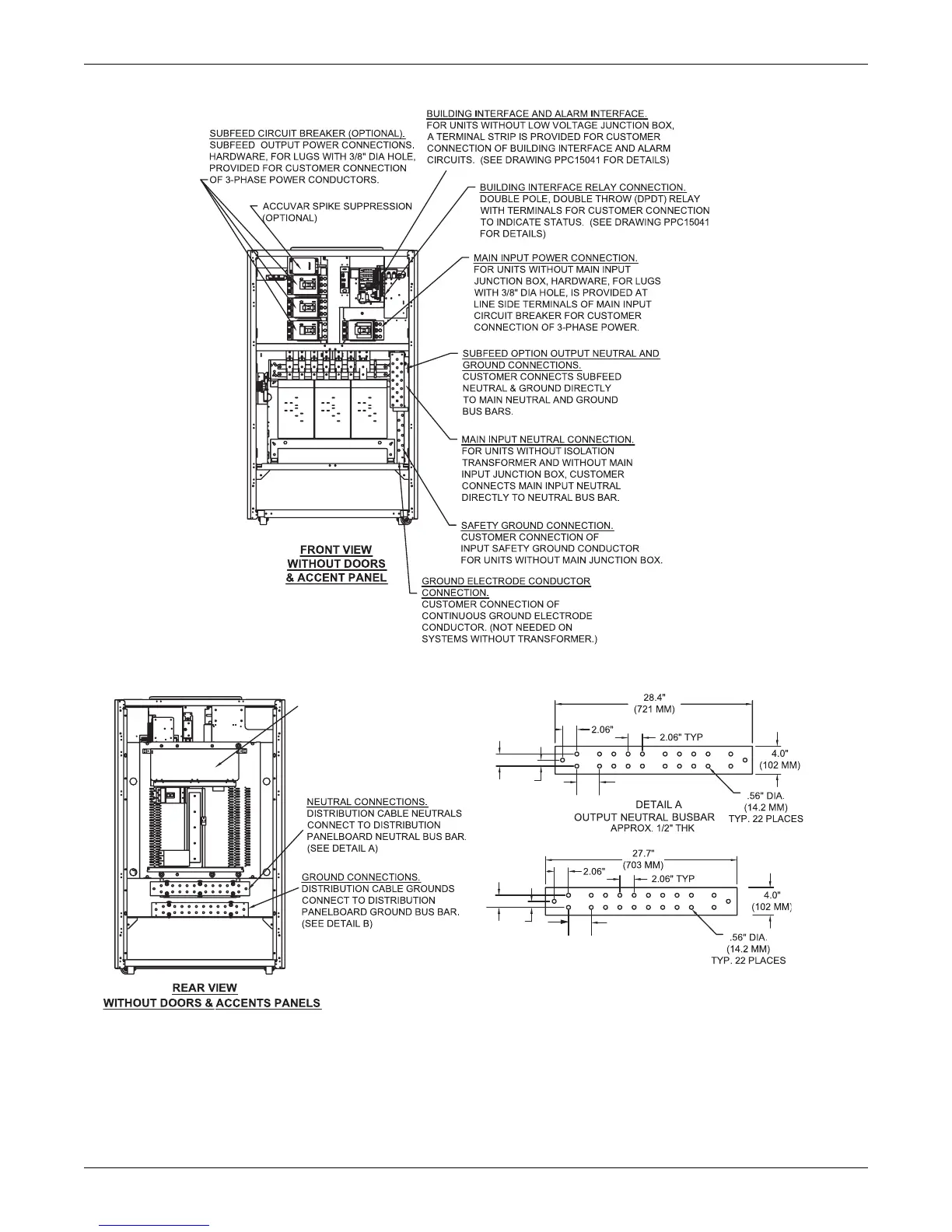

Figure 8 Electrical connection location for 47" cabinet with SqD I-Line panelboard—Front view
Figure 9 Electrical connection location for 47" cabinet with SqD I-Line panelboard—Rear view
FPC15002 Rev. 0
Square “D”
I-Line Panelboard
Detail B
Output Ground Busbar
Approx. 1/4" Thick
1.75"
(44.4mm)
1.75"
(44.4mm)
.88"
(22mm)
.88"
(22mm)
3.28" (83mm)
3.28" (83mm)
FPC15002 Rev. 0
