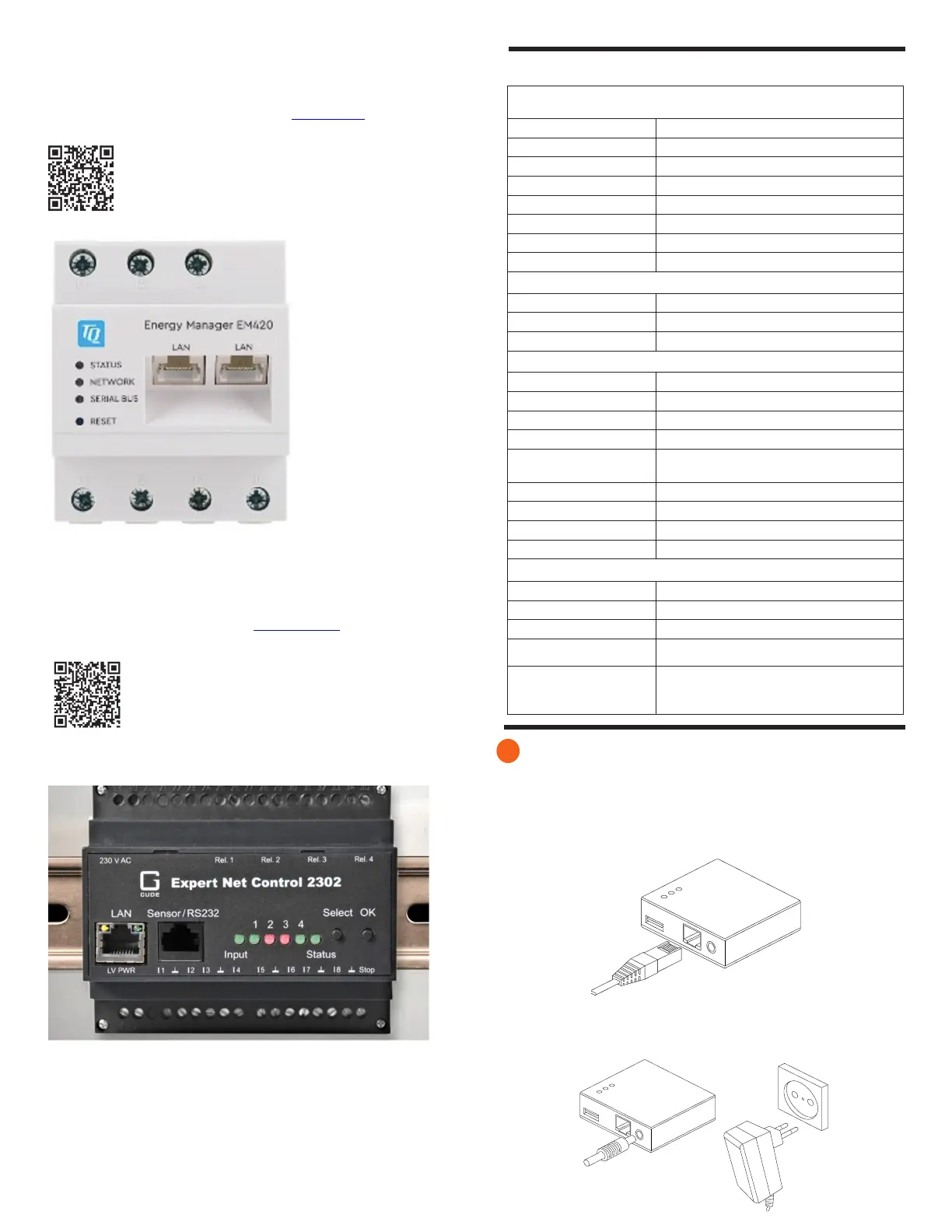

What’s in the box (Cont.)
The energy meter, TQ EM420 Energy Manager, communicates wirelessly
to the IQ Energy Router and measures the energy consumption of the heat
pump. For more detailed specications, click Energy Meter or scan the
following QR code:
The SG Ready Relay, the Gude Expert Net Control 2302, communicates
wirelessly to the IQ Energy Router and is needed to control the heat pump
through the SG Ready signal. The signal is sent through two dry contact
relays providing the ability to congure four different signal states.
For more detailed specications, click SG Ready Relay or scan the following
QR code:
IQ Energy Router Specications
Enviromental specication, standards, and certication
Temperature range 10°C to 40°C
Directive RoHS, WEEE, REACH
Flammability UL94
EMC EN 55032: 2015
Electrical safety EN IEC 62368-1:2020+A11: 2020
Compliance CE
Max. radiated power <10 dBm
Frequency 2405 – 2480 MHz
Electrical specication
Input voltage 5 VDC
Input current 1 A
Consumption 5 W
Mechanical specication
Weight 114 g
Height 27.3 mm
Width 96.1 mm
Length 96.6 mm
DC power cable USB A to 5 V DC jack cable (2.5 mm x 5.5 mm barrel
connector)
EU power supply - Voltage 100 V– 240 V@ 50 Hz – 60 Hz
EU power supply - Current 0.2 A
Ethernet port RJ-45
Colour White
Packaging specication
Weight 270 g
Height 72 mm
Width 115 mm
Length 117 mm
Included in box EU power supply, USB A to jack cable (2.5 mm x 5.5 mm
DC plug), CAT 6 Ethernet cable with RJ45 jack at either
end), TQ EM420 Energy Meter, and SG Ready Relay
Setting up the IQ Energy Router
A ) Location: Set up the IQ Energy Router close to the internet router or
an Ethernet switch connected to the internet router.
B ) Network connectivity: Plug one end of the CAT 6 Ethernet cable to
the IQ Energy Router and the other end into the Ethernet port of your
internet router or Ethernet switch.
C ) Powering the IQ Energy Router: Connect the IQ Energy Router to an
electrical outlet using the provided DC power cable.
