All of the features in this guide are explained using illustrations of EB-X24
unless otherwise mentioned.

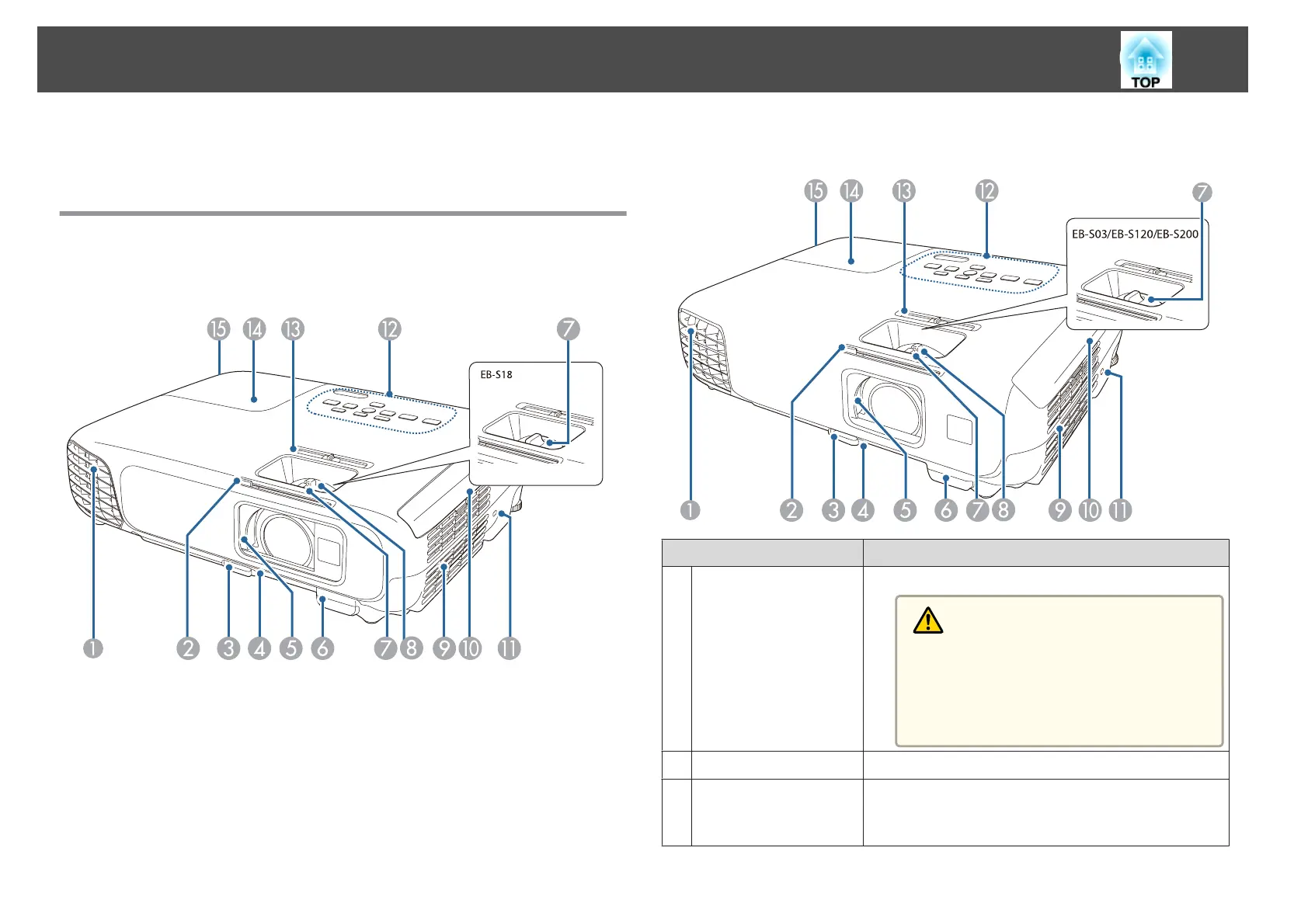

Front/Top
EB-X24/EB-W18/EB-X18/EB-S18
EB-W03/EB-X03/EB-S03/EB-W120/EB-X120/EB-S120/EB-X200/EB-S200
Name Function
A
Air exhaust vent
Exhaust vent for air used to cool the projector internally.
Caution
While projecting, do not put your face or hands
near the air exhaust vent, and do not place objects
that may become warped or damaged by heat near
the vent. Hot air from the air exhaust vent could
cause burns, warping, or accidents to occur.
B
A/V mute slide knob
Slide the knob to open and close the A/V mute slide.
C
Foot adjust lever
Press the foot adjust lever to extend and retract the front
adjustable foot.
s "Adjusting the Image Position" p.41
Part Names and Functions
10
To Next Page
