Epson L130 User Manual

L365/L366,L360/L362,L310/L312,L220/L222,L130/L132 Series Revision A
Confidential
Maintenance Lubrication Points and Instructions 67
4.2 Lubrication Points and Instructions

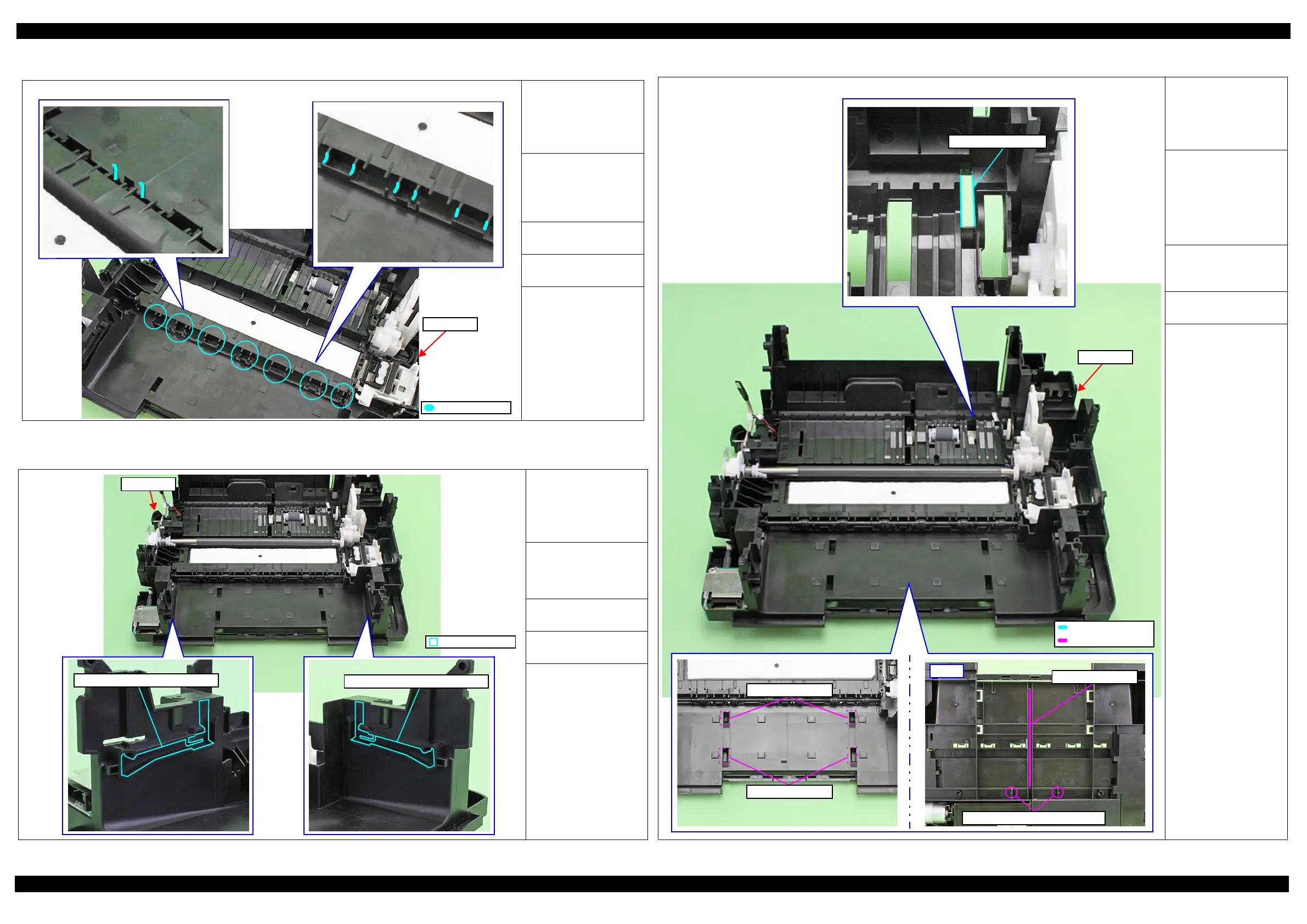

Figure 4-1. Lubrication of the Frame Base (1)
<Part supply as ASP>
None
<Lubrication status when
supplied as ASP>
---
<Lubrication Point>
Ribs (x12) and hooks (x6)
on the Frame Base
(Contact points of the EJ
Roller)
<Type>
G-74
<Application Amount>
Appropriate amount
<Remarks>
 Apply with flux
dispenser.
 Stir G-74 before use.
Frame Base
Application Point
Figure 4-2. Lubrication of the Frame Base (2)
<Part supply as ASP>
None
<Lubrication status when
supplied as ASP>
---
<Lubrication Point>
Contact points (x2) on the
Frame Base with the Panel
Assy
<Type>
G-74
<Application Amount>
Appropriate amount
<Remarks>
 Apply with flux
dispenser.
 Stir G-74 before use.
Apply grease inside the rail section.
Apply grease inside the rail section.
Application Point
Frame Base
Figure 4-3. Lubrication of the Frame Base (3)
<Part supply as ASP>
None
<Lubrication status when
supplied as ASP>
---
<Lubrication Point>
1.Contact points (x2) on
the Frame Base with the
Hopper
2. Contact points (x7) on
the Frame Base with the
Stacker Assy
<Type>
1. G-71
2. G-74
<Application Amount>
Appropriate amount
<Remarks>
 Apply with flux
dispenser.
 Stir G-74 before use.
Apply grease on ribs
Apply grease on ribs
Bottom
Apply grease on both sides of dowels
Apply grease on ribs
2. Application Point
1. Application Point
Frame Base
Apply grease on sides.
