5.2 Points to be checked before packing the printer
Attaching the Air Release Hole Caps
To prevent the ventilation film from getting wet, attach the Air Release Hole Caps to the air release holes of the Ink
Supply Tank Assy.

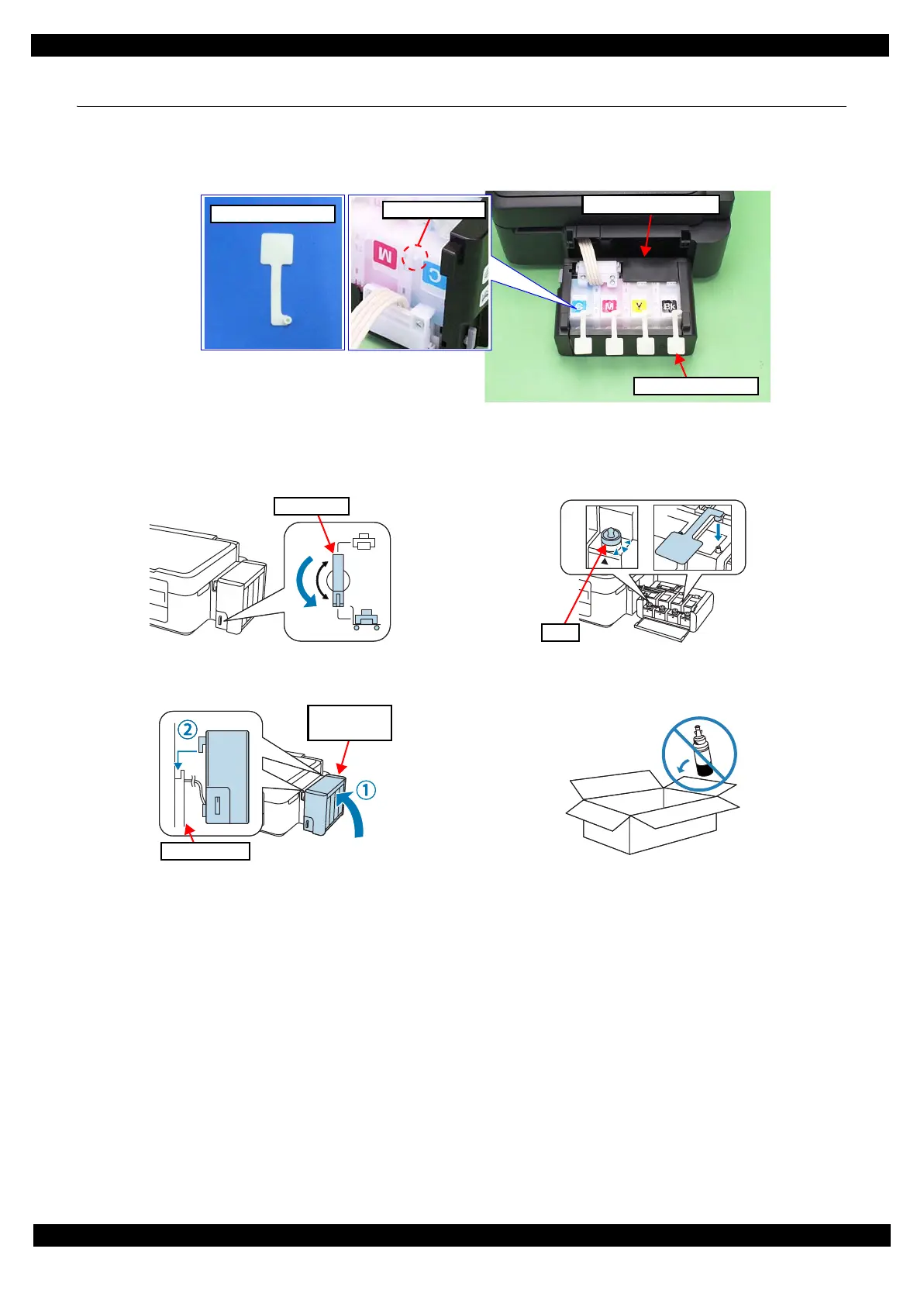

Figure 5-2. Attaching the Air Release Hole Caps
The Valve Lever is on the position shown below (the
Choke Valve is closed). (See Figure 2-10.)
All the caps of the Ink Supply Tank Assy are securely
closed.
The hooks (x2) of the Ink Supply Tank Assy are
securely engaged with the Housing Right.
The opened ink bottle is not included in the box.
Ink Supply Tank Assy
Air Release Hole Cap
Air Release Hole Cap
Air release hole
Valve Lever
Cap
Ink Supply
Tank Assy
Housing Right
