Printable area
This section describes the printable areas for the printer.
If the print range settings in application software are
larger than the following printer printable areas,
sections beyond the specified margins are not printed.
Roll Paper

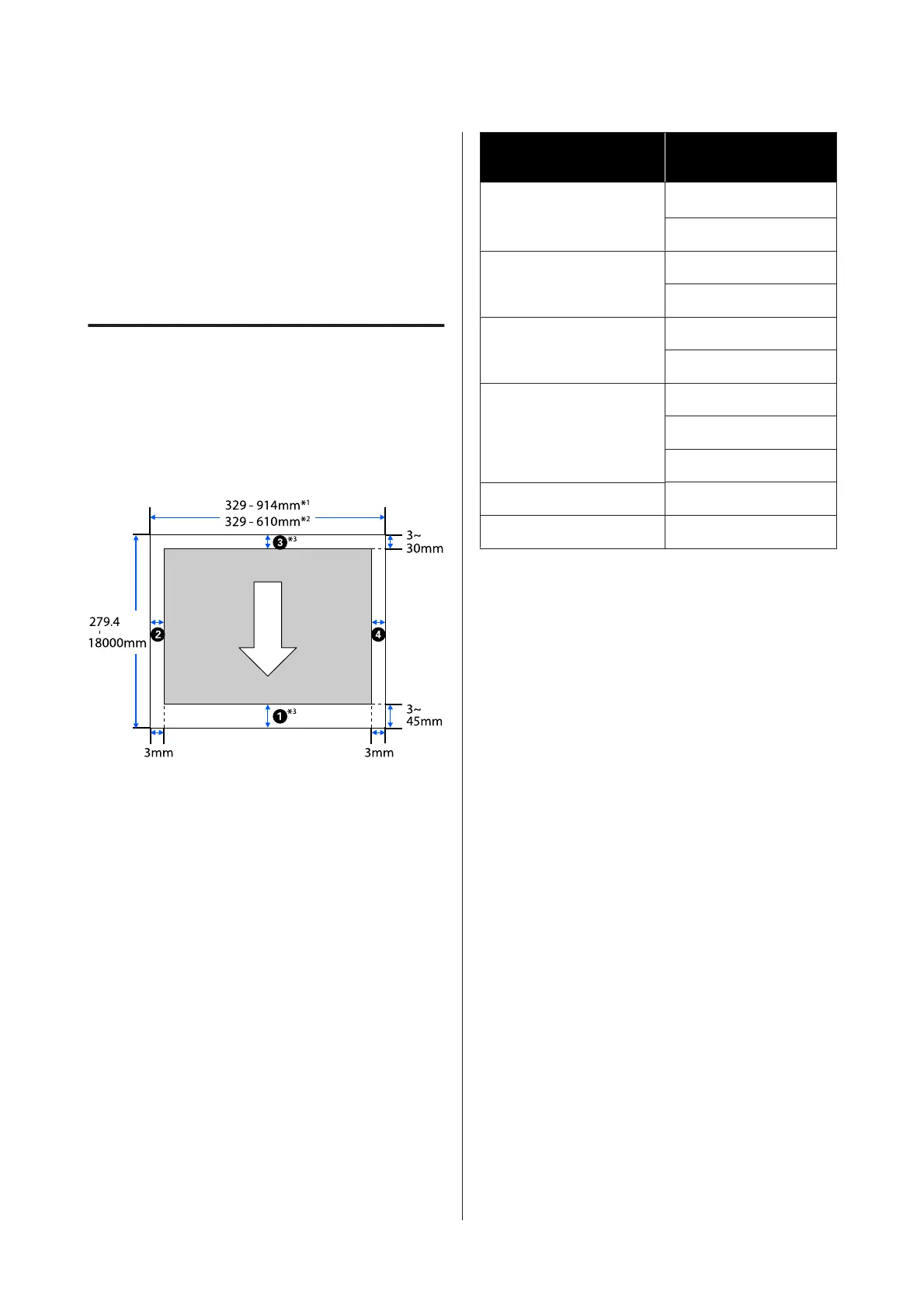

The gray area in the illustration below shows the
printable area.
The arrow in the illustration indicates the direction
that the paper is ejected.
*1 SC-T5100 Series/SC-T5100N Series
*2 SC-T3100M Series/SC-T3100 Series/SC-T3100N
Series/ SC-T2100 Series
*3 In the printer driver Layout screen, selecting
Print Banner sets the top and bottom margins
of the paper to 0 mm.
Margins for roll paper depend on the settings values
for Top/Bottom Margins in the menu, as shown in
the table below.
Settings for Top/Bottom Margins
U “Roll Paper menu” on page 130
The default setting is Standard.
Settings of Top/Bottom
Margins
Margin Values
Standard
A, C = 30 mm
*
B,D = 3 mm
Top 3 mm/Bottom 3 mm A,C = 3 mm
B,D = 3 mm
Top 15 mm/Bottom 15 mm A,C = 15 mm
B,D = 3 mm
Top 45 mm/Bottom 15 mm A = 45 mm
C = 15 mm
B,D = 3 mm
3 mm A,B,C,D = 3 mm
5 mm A,B,C,D = 5 mm
*If Standard is selected when the following two
conditions are met, then the top and bottom
margins will be 3 mm.
❏ The paper type settings are one of the following
Singleweight Matte, Coated Paper(Generic), Plain
Paper, Plain Paper Thin, Plain Paper Thick, Tracing
Paper, Tracing Paper <LowDuty>, Matte Film,
Blueprint Paper
❏ The printer driver print targets are one of the
following
CAD/Line Drawing - Black, CAD/Line Drawing -
Color,CAD/Line Drawing - Bi-Level
