1-2 Setting Up the Printer
Connecting the Cables and Grounding the Printer

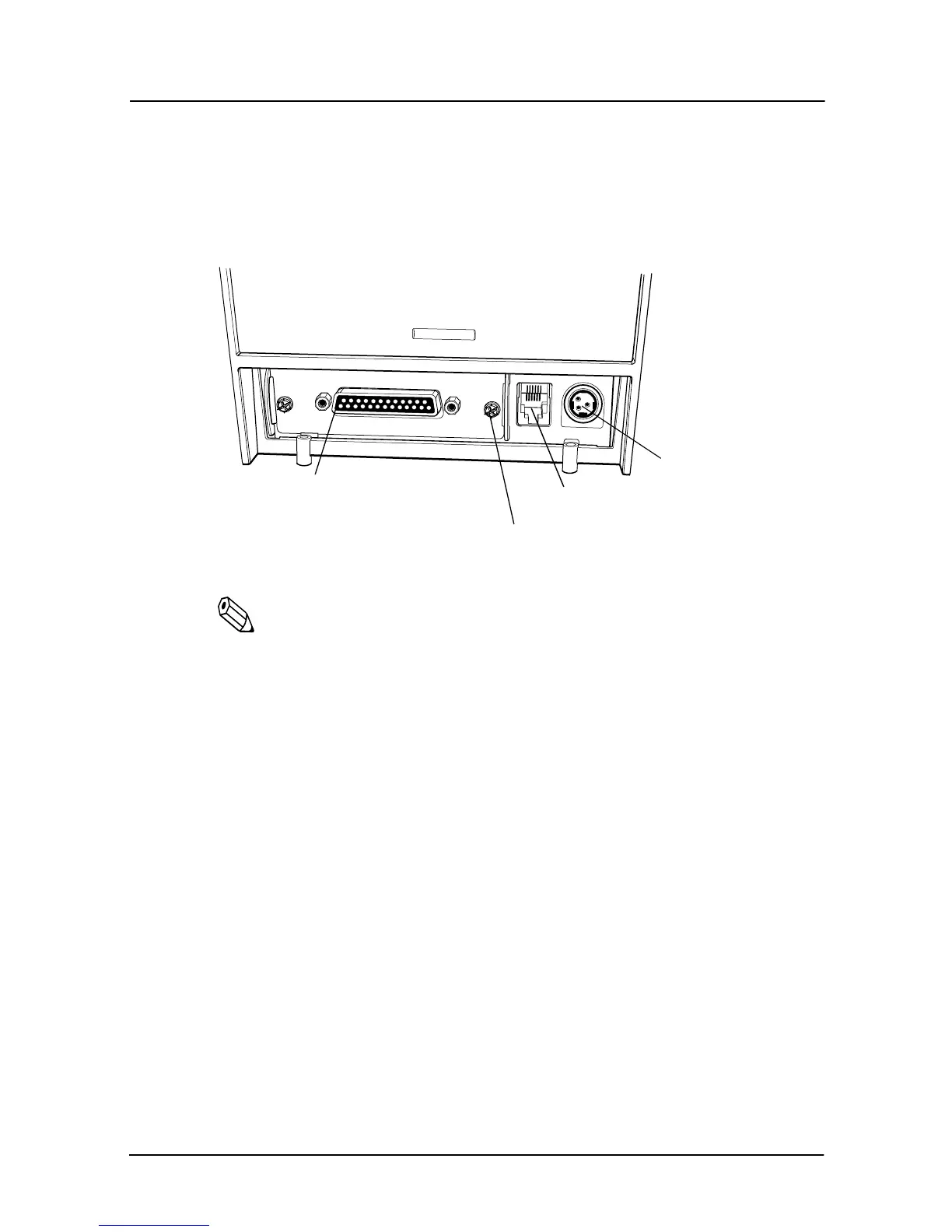

You can connect up to four cables to the printer. They all connect to
the connector panel on the back of the printer, which is shown
below:
Notes:
There is a caution label above the drawer kick-out connector.
Depending on the interface installed, the interface connector on
your printer may look different from the one illustrated.
Before connecting any of the cables, make sure that both the printer
and the computer are turned off.
Connecting the computer
You need an appropriate interface cable.
1. Plug the cable connector securely into the printer’s interface
connector.
DK
DC24V
FG
FG
Power supply
Drawer kick-out
Interface
Grounding screw
(The shape of the interface
connector is different from
the illustration if the printer
hsa a parallel interface.)
To Next Page
