DOWN UNDER SERIES

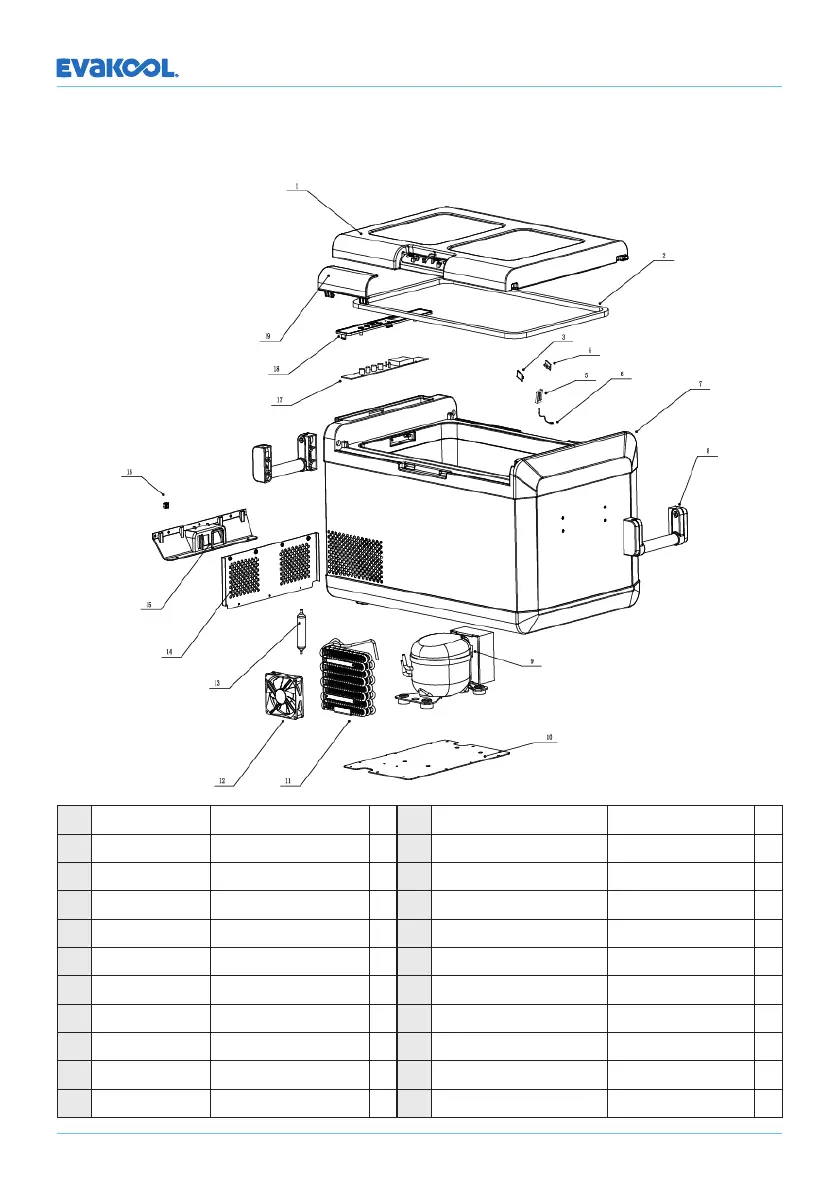

6. Exploded View - DU47-SZ

1 Door LID-DU47 1 12 Fan FAN-C 1

2 Door Seal FOAM-SEAL-2 1 13 Dry Filter DRIER-FILTER-1 1

3 Lampshade LED-CVR-DU 1 14 Rear Cover MTR-CVR-DU47 1

4 Lighting Panel LED-DU 1 15 Rear Cover Base MTR-CVR-B-DU47 1

5 NTC Hood NTC-HOOD-DU 1 16 DC Socket - 1

6 NTC NTC-DU 1 17 Control Panel BRD-DISP-22 1

7 Box Body - 1 18 Display Mounting Plate HOUSE-DISP-8 1

8 Handle KHA-DU47 2 19 Door Holder LATCH-LID-5 1

9 Compressor COMP-PBC2.0 1 20 Large Basket BASKET-1-DU47 1

10 Compressor Tray - 1 21 Small Basket BASKET-2-DU47 1

11 Condenser - 2
