EVAPCO LSWE - Lrc;Lrwb;Eco-LRWB 3 Wide Units

51

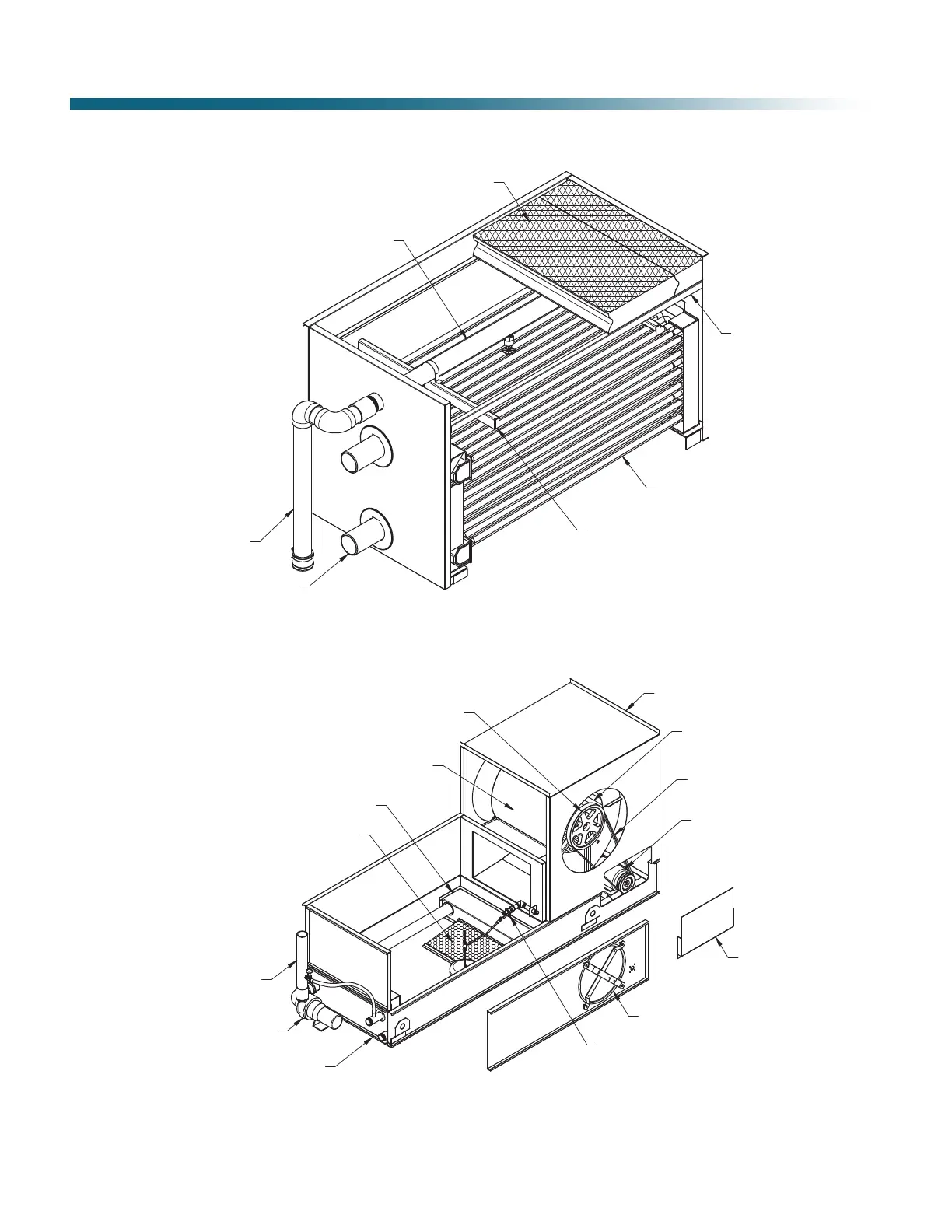

COIL CASING SECTION
DRIFT ELIMINATORS
W
A
TER DISTRIBUTION
SPRAY BRANCH
PUMP RISER PIPING
COIL CONNECTIONS
C
OIL
WATER DISTRIBUTION
SPRAY BRANCH SUPPORT
D
RIFT ELIMINATOR
S
U
PPORT
FAN HOUSING
FAN BELT
MOTOR
ACCESS DOOR
TEFC FAN MOTOR
FAN WRAPPER
FAN SHEAVE
FAN WHEEL
SUCTION HOOD
SUCTION STRAINER
PUMP RISER PIPING
RECIRCULATOR PUMP/
MOTOR ASSEMBLY
COLD WATER BASIN
MAKE-UP VALVE
WITH ADJUSTABLE FLOAT
ACCESS DOOR
PAN SECTION
LRC/LRWB/eco-LRWB 3’ Wide Units
