EVOLV CORSA User Manual

How to Charge
9
Always plug the charger into a household outlet before connecting to the scooter,
to safely start charging. Sparks may occur due to the voltage difference when
connecting the connector to the charging port, but this is normal.

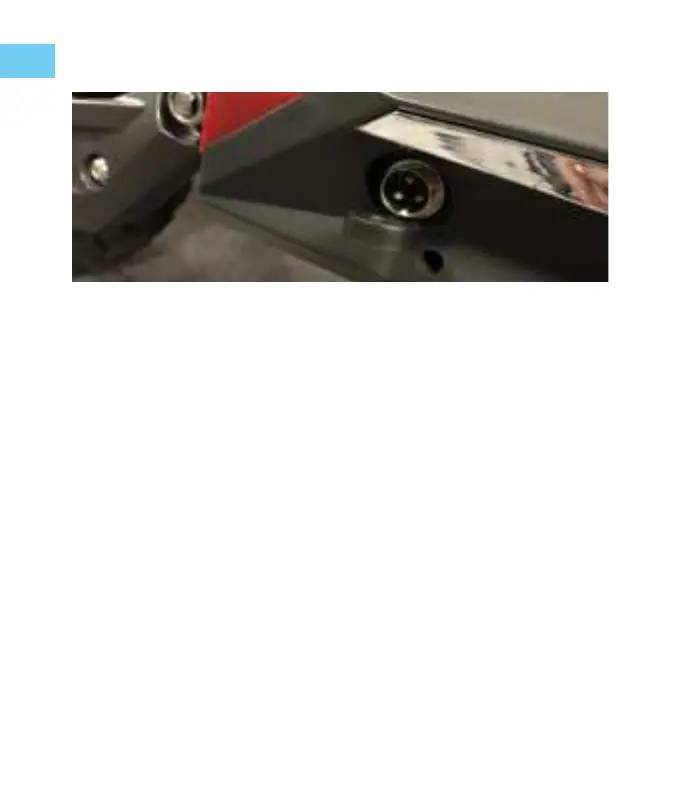

Charging port is located on the left side of the deck. Open the charging port cover
to connect the charger to the scooter.
LED charging status indicator on power brick.
Red: Charging Green: Fully charged
1.
2.
3.
1.
2.
3.
4.
CAUTION:
We recommend that you always use the original charger. Performance and safety
may be compromised when using a different charger.
Charger failure may cause a re while charging.
Do not leave your scooter charging unattended.
After unplugging the charger, charging connectors may be hot.
Battery Pack inside Electric Vehicle

EVOLV CORSA Specifications

General

Product Name	EVOLV Corsa
Folding	Column Lock Folding
Colour	Black, Silver, and Grey Combination
Dual Motors	Dual 60V 1, 200Watt Nominal per Motor
Max Speed	70 km/h / 44 mph
Range	55 - 60 km / 34 - 37 mi. (Under Ideal Conditions)
Gradeability (Max Uphill Climb Ability)	40 ° Max Road Inclination
Battery Type	Lithium-ion Battery
Battery Capacity	60V 26AH
Lights	LED Front Light & Taillight / Brake Light / Signal Turn Lights
Braking	Dual Hydraulic Disc Brakes
Tires	11 Inch Pneumatic Tires
Suspension	Front C Type Suspension + Rear Suspnesion
Body Frame	Aluminum Alloy
Display Functions	Battery, Trip, ODO, Time, Speed, Mode, and Cruise Control

Weight and Dimensions

Max Rider Weight	150 kg / 330 lbs
Product Size	130 * 56 * 60 cm
Product Weight	45 kg / 99 lbs
Box Size	146 * 38 * 66 cm
