Fender Blues Junior User Manual

5
K . ELECTRIC LINE CORD - Make sure the amplifier’s
electrical supply rating matches that of the outlet at
your location. Connect the power AC line cord to a
g rounded receptacle only.
L . “ FAT” FOOTSWITCH CONNECTOR - This jack
p rovides a connection for the optional extern a l
footswitch (Fender Part# 041228). When plugged
in, the external footswitch disables the FAT switch
(Item H) on the top panel.
M . SPEAKER CONNECTOR - This jack provides a connection for the internal speaker OR any
quality 8–ohm external speaker cabinet that you choose.

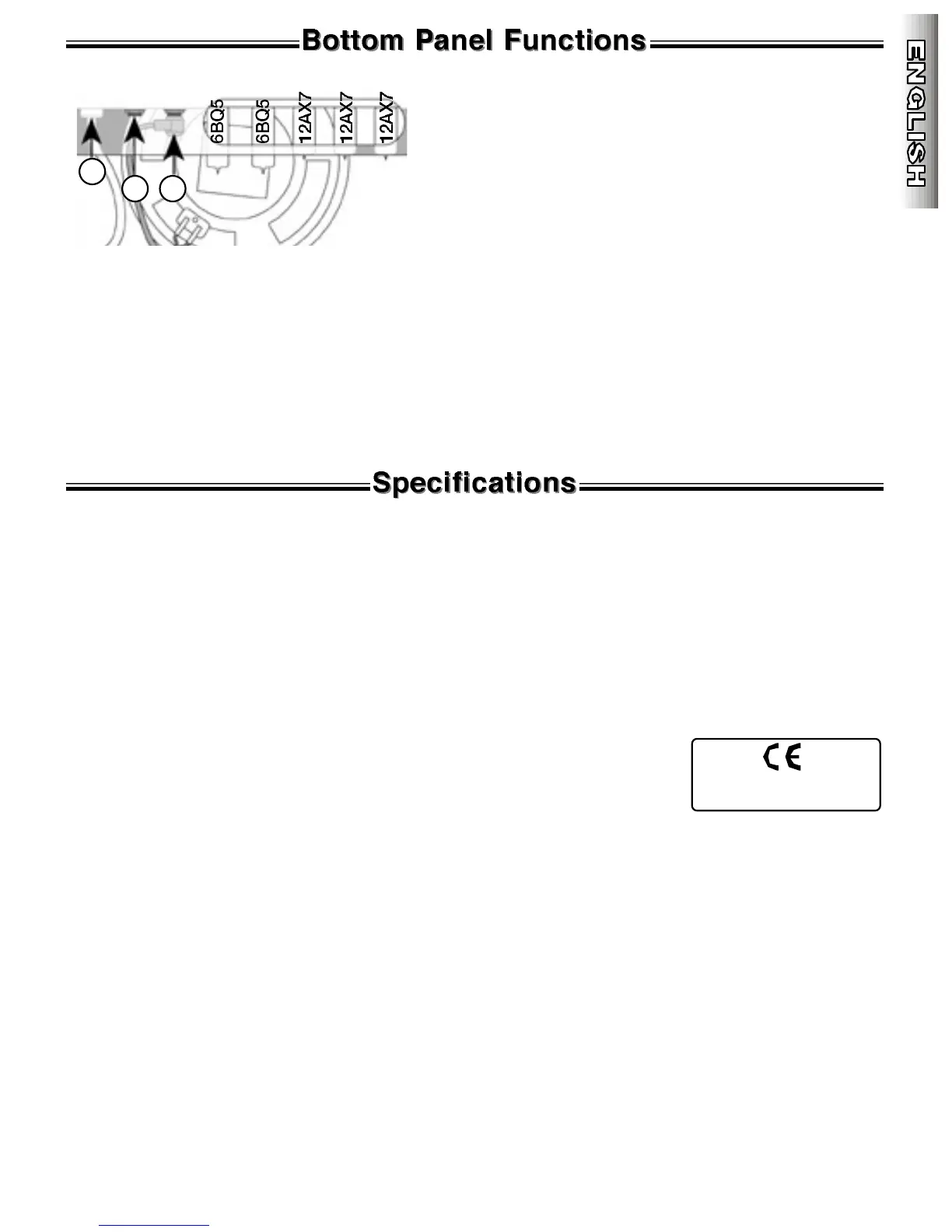

• TUBE LOCATIONS - The tube order as it appears above: 6BQ5 6BQ5 12AX7 12AX7 12AX7
TYPE: PR 295
PART NUMBER: 120V, 60Hz US 21-3105
100V, 50/60Hz JPN 21-3175
230V, 50Hz EUR 21-3165
230V, 50Hz UK 21-3145
230V, 50Hz NORDIC 21-3185
240V, 50Hz AUSTRALIA 21-3135
POWER OUTPUT: 15W RMS minimum into 8-ohm @ 5% THD, 1kHz
INPUT IMPEDANCE: 1MΩ
POWER REQUIREMENTS: 180W
SPEAKER COMPLEMENT: One 8-ohm 12” Fender re-issue “Gold Label” speaker
(Part- 037617)
TUBES: Two “6BQ5 (EL84)” (Part-041255)
Four “12AX7” (Part-013341)
DIMENSIONS: HEIGHT: 16” (41cm)
WIDTH: 18” (46cm)
DEPTH: 9-13/16” (25cm)
WEIGHT: 31lbs (14 kg)
Product specifications are subject to change without notice.
THIS EQUIPMENT CONFORMS TO
THE FOLLOWING DIRECTIVES :
EMC 89/336/EEC AND LV 73/23/EEC

Fender Blues Junior Specifications

General

Type	Tube Amplifier
Output Power	15 Watts
Preamp Tubes	3 x 12AX7
Power Tubes	2 x EL84
Inputs	1 x 1/4"
Channels	1
Reverb	Yes
Effects Loop	No
Controls	Volume, Treble, Middle, Bass, Master, Reverb
Weight	31 lbs
Footswitch	Optional
