4
G-DEC Jr
f e n d e r . c o m
G-DEC Jr
f e n d e r . c o m

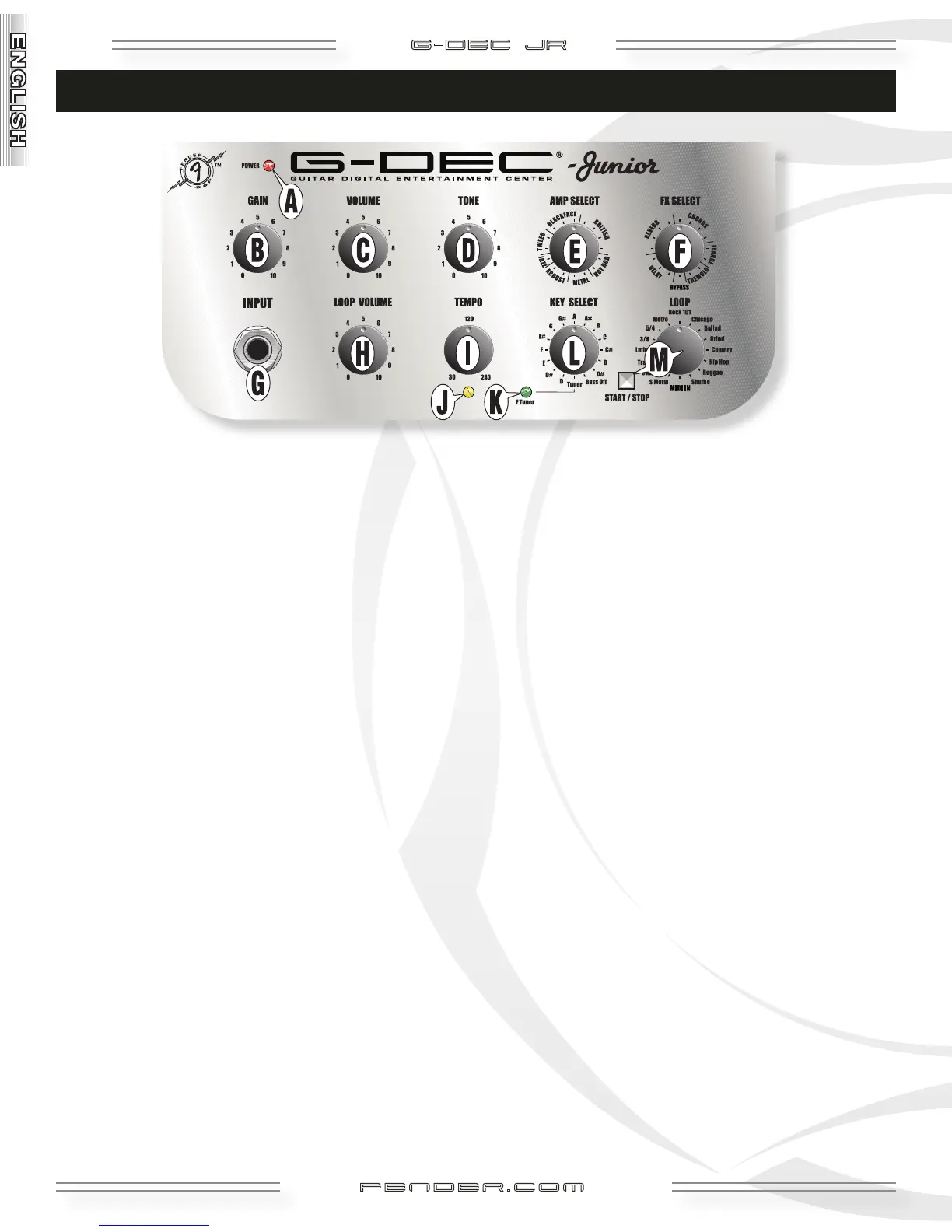

A. Power LED— Indicates Amplifier is on.
B. GAIN—
Controls preamp gain.
C. VOLUME
—Controls the loudness of the amplifier.
D. TONE
—Controls the frequency response
characteristics of the amplifier.
E. AMP SELECT
—Selects one of 16 core amplifier
sound styles.
Note: Use the extreme flexibility of the Amp Select
knob wisely! Treble harshness or boomy bass tones
can be avoided by using the right guitar settings and
playing style for a particular amp type.
F. FX SELECT
—Selects one of the 15 effects or effects
off (BYPASS).
G. INPUT
—Plug your guitar in here.
H. LOOP VOLUME
—Controls the loudness of the Loop
selected in relation to the guitar input.
I. TEMPO
—Controls the tempo of the selected loop
from 30 to 240 beats per minute.
J. TEMPO LED
—Flashes at the tempo rate dialed in.
K. E TUNER LED
—When the Tuner function is selected
the LED flashes faster as the guitar note moves away
in pitch (+ or -) from E. When in tune with E, the
yellow E Tuner LED and the green Tempo LED will
both illuminate solid.
L. KEY SELECT
—Selects the key of the bass line for the
loop being played. Bass Off turns off the bass line of
the loop. Tuner position enables the tuner function.
The guitar note played is compared against reference
E tone and when in tune with E, the yellow E Tuner
LED and the green Tempo LED will both illuminate
solid. To assist in tuning, an E reference tone is
produced when the Start/Stop Loop Select button is
pressed. To turn the tone off press the button once
again.
M. LOOP SELECT and START/STOP
—Selects the
Loop sequence pattern to be played. Pressing the
momentary Start/Stop button starts the sequence
which plays repeatedly until the Start/Stop button
is pressed once again. The MIDI IN position turns
off the internal loop sequencer and allows external
loops to be played via the MIDI input.
Control Panel Overview
