FENDT Vario 720 User Manual

CHAPTER
3
Manual No. 016-5030-043 Rev. A 9
C hapter 3 Mechanical Drive
Installation

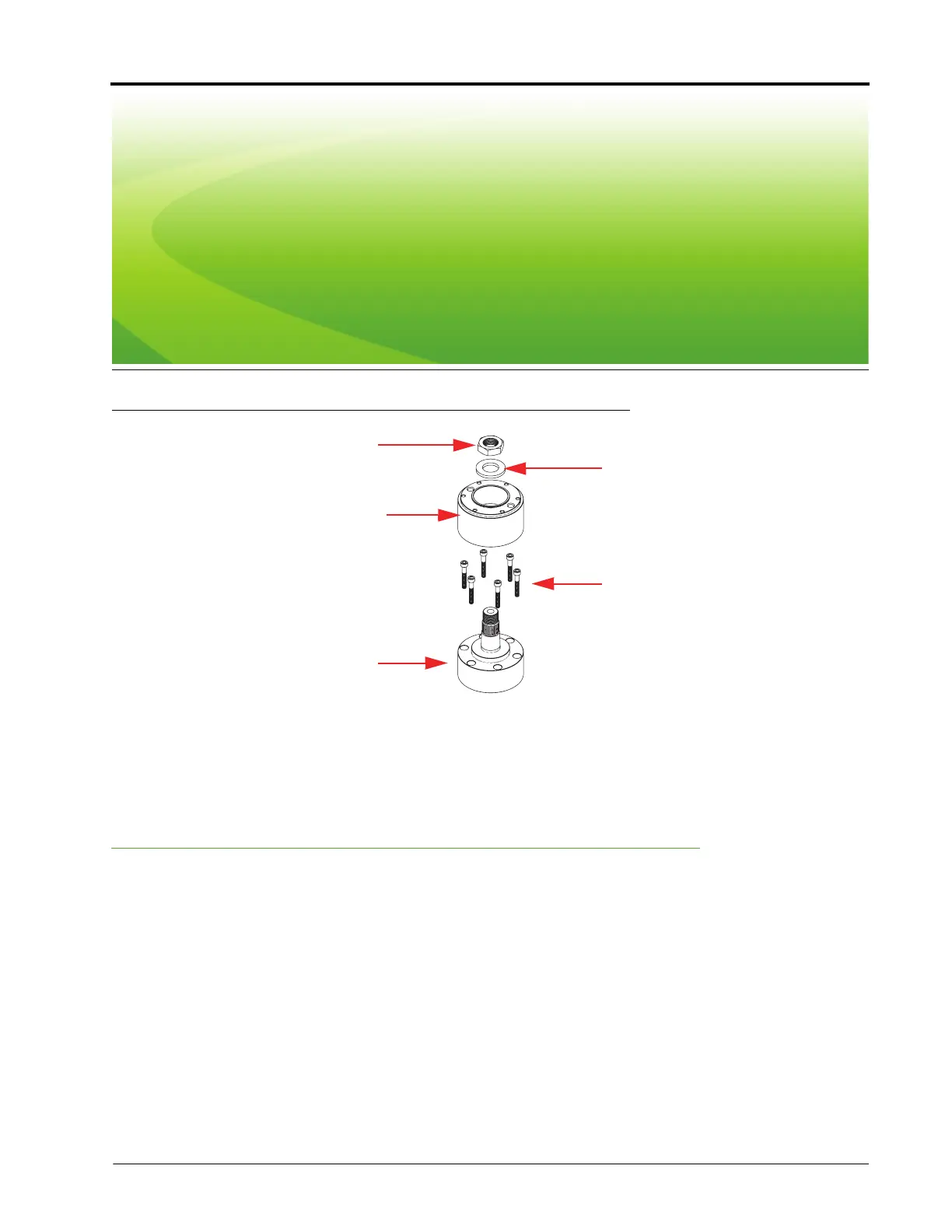

FIGURE 1. Spline Assembly Disassembled
1. Locate the 20 mm x 36 tooth spline adapter assembly (P/N 063-4001-022).
2. Disassemble the spine adapter assembly as shown in Figure 1 above.
Remove the Steering Wheel
Note: The steps in this section require use of a steering wheel puller (not supplied). For questions on the
proper procedure for removing the steering wheel, contact your local equipment dealer.
Nut
Washer
Female Spline
Adapter
Bolts
Male Spline
Adapter

FENDT Vario 720 Specifications

General

Rated Engine Speed	2100 rpm
Tire Size - Front	540/65 R30
Tire Size - Rear	650/65 R42
Max Speed	50 km/h
Fuel Tank Capacity	400 liters
Hydraulic System	Load-Sensing
Engine Type	6-cylinder
