Troubleshooting, Adjustment & Repair
Hood Latch Operation
This unit is equipped with a hood latch that must be
released prior to opening the hood.
1. Pull the hood latch (A, Figure 28) towards the rear
of the machine to release the hood latch.
2. Open the hood.
Floor Pan Removal & Installation -
(Models S/N: 2016098451 & Above)
This unit is equipped with a removable floor pan
which can be removed to provide better access to the
mower deck.
Removing the Floor Pan
1. Loosen and remove the knob (A, Figure 29) that
secures the floor pan (B) to the frame of the unit.
2. Tilt the back end of the floor pan up and then
remove it from the unit.
Reinstalling the Floor Pan
1. Reverse the removal procedure.
Figure 29. Floor Pan Removal / Installation
A. Knob
B. Floor Pan
A
B

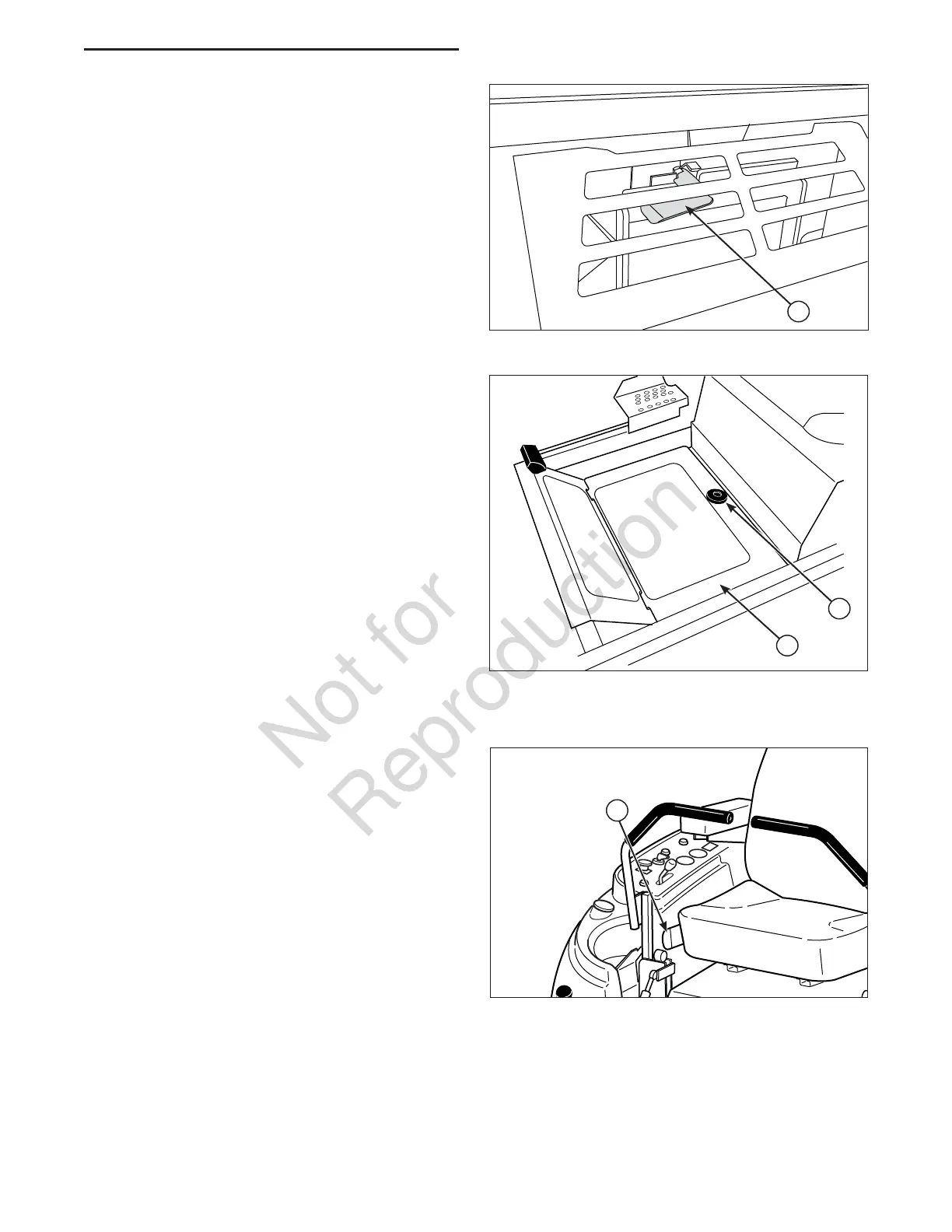

Figure 28. Hood Latch Operation
A. Hood Latch
A
Seat Adjustment
The seat can be adjusted fore and aft. Move the seat
adjustment lever (A, Figure 30) to the left, position the
seat as desired, and release the lever to lock the seat
into position.
Figure 30. Seat Adjustment
A. Seat Adjustment Lever
A
