5 Technical Data
Cordless oscillator OSC 18
Motor voltage 18 V
Speed 10000 - 19500 rpm
Oscillation angle 2 x 2.0°
Tool holder
Compatible with
StarlockMax
StarlockMax/
StarlockPlus/
Starlock
Compatible with battery packs
from the series
BP 18
Weight as per EPTA-Proce
dure 01:2014:
3.5 lbs
(1.6 kg)
6 Functional description
[1-1]
Clamping lever for changing tools
[1-2]
On/off switch
[1-3]
Gripping surface
[1-4]
Cooling air openings
[1-5]
Capacity display
[1-6]
Capacity display button on battery
pack
[1-7]
Button for releasing the battery pack
[1-8]
Battery pack
[1-9]
Speed control
[1-10]
Tool
[1-11]
Adapter*
[1-12]
Depth stop with sliding shoe*
[1-13]
Rotary depth stop*
[1-14]
Dust extraction device*
[1-15]
Positioning aid*
* Accessories shown or described are not al
ways included in the scope of delivery.
The pictures for the functional description are
on a fold-out page at the beginning of the in
struction manual. While reading the manual
you can fold out the page for comparison and
quick reference.
7 Commissioning
7.1 Switch on/off
The switch [1-2] is an on/off switch (I = ON, 0 =
OFF).
When the battery pack is empty, or if there
is a power failure or the mains plug is re
moved, move the on/off switch immediate
ly to the Off position. This prevents uncon
trolled restarting.
8 Battery pack

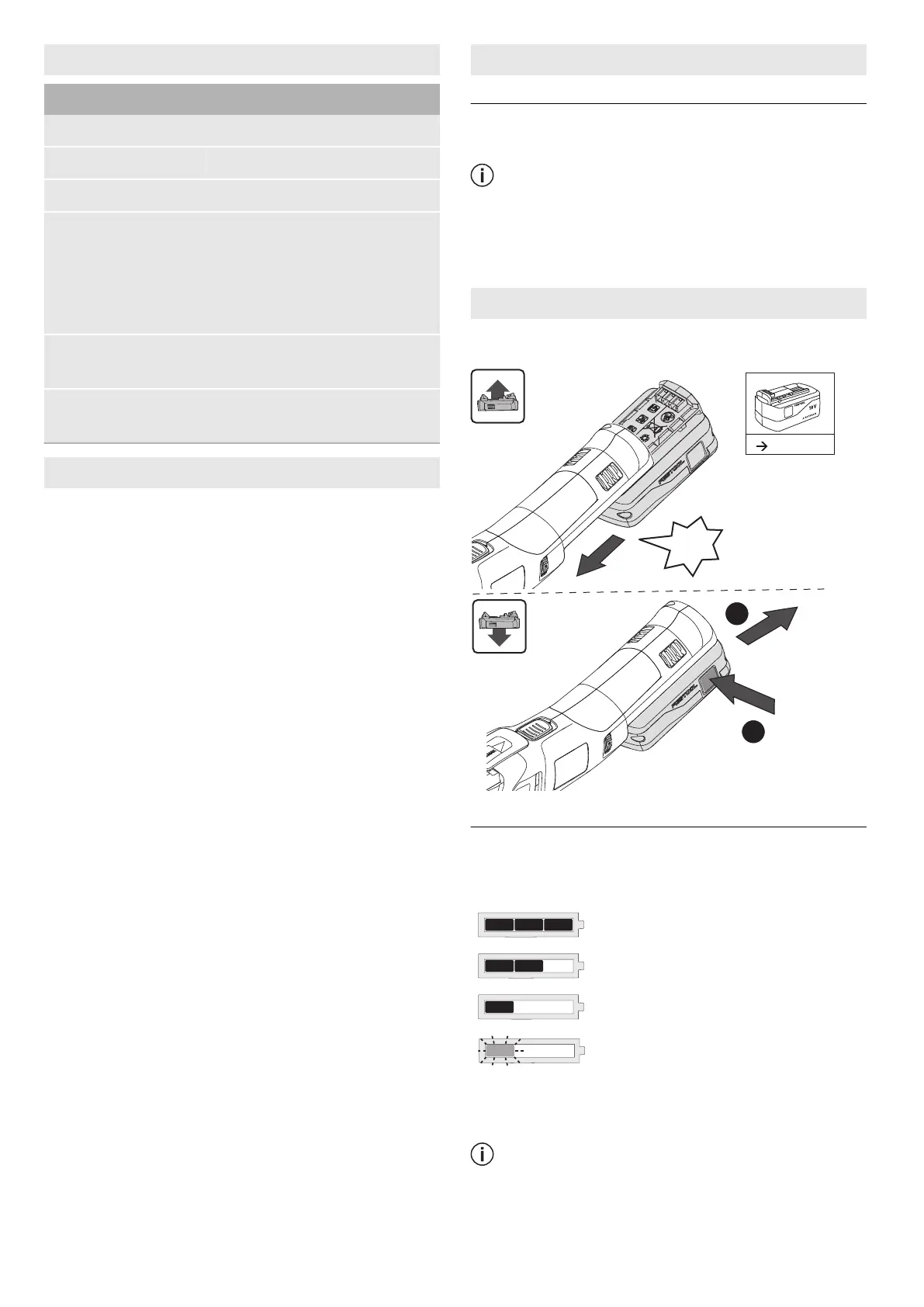

► Inserting the battery pack [2a]
► Removing the battery pack [2b]
8.1 Capacity display
The capacity display [1-5] indicates the charge
of the battery pack for approx. 2 seconds after
the button [1-6] is pressed:
70‑100%
40‑70%
15‑40%
< 15%
*
*
Recommendation:
Charge the battery pack
before any further use.
Further information about the battery pack
and charger can be found in the corre
sponding operating manual.
English
10
