To remove a fuse use the fuse puller tool provided on the fuse panel
cover.

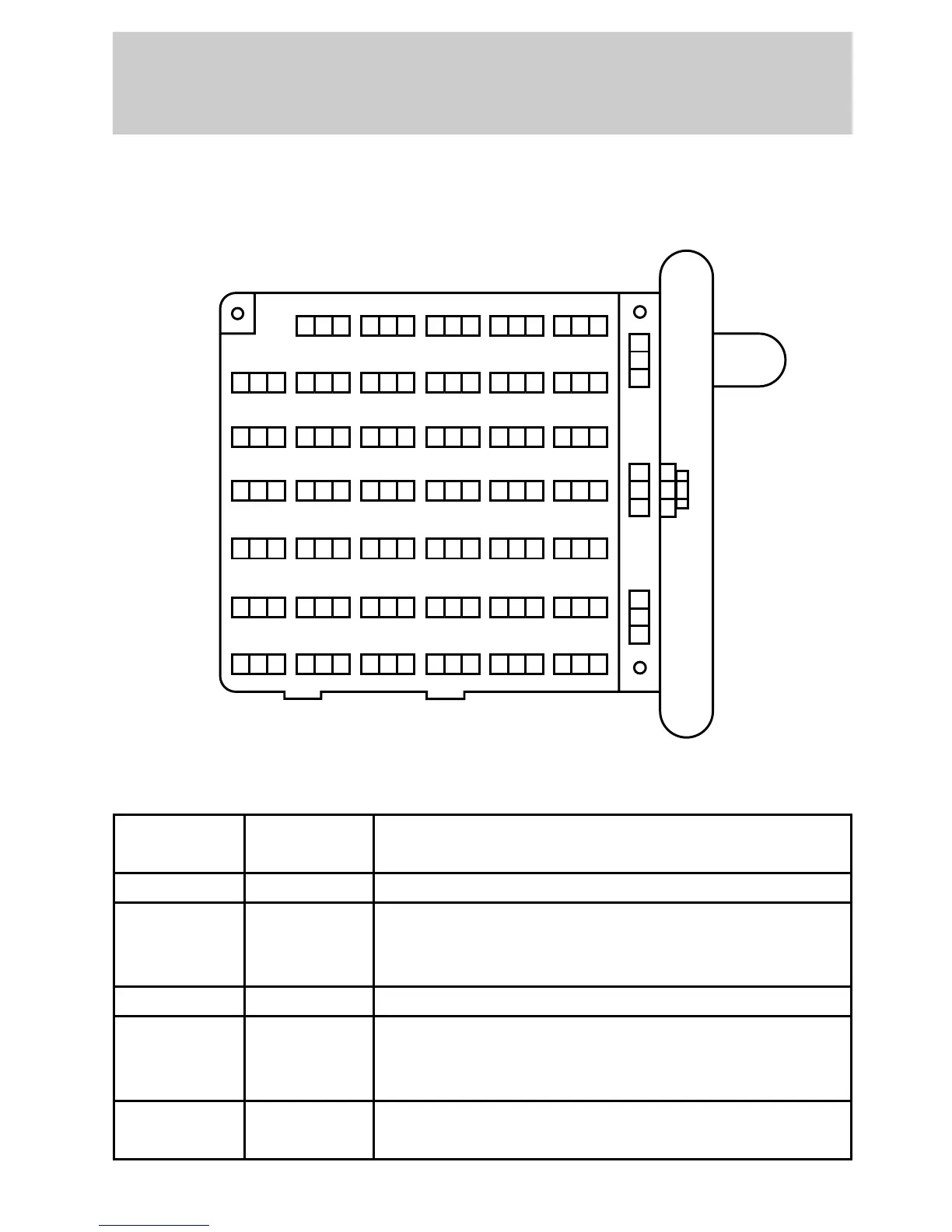

The fuses are coded as follows.
Fuse/Relay
Location
Fuse Amp
Rating
Description
1 20A RABS/4WABS Module
2 15A Brake Warning Diode/Resistor, Instrument
Cluster, Warning Chime, 4WABS Relay,
Warning Indicators
3 15A Main Light Switch, RKE Module, Radio
4 15A Power Locks w/RKE, Illuminated Entry,
Warning Chime, Modified Vehicle, Power
Mirrors, Main Light Switch, Courtesy Lamps
5 20A RKE Module, Power Lock Switches, Memory
Lock, Power Locks with RKE
123
4
5
7
68910
11
42
43
44
13
12 14
15 16 17
19
18
20
21 22 23
25
24
26 27 28 29
3130 32 33 34
35
37
36
38 39
40
41
