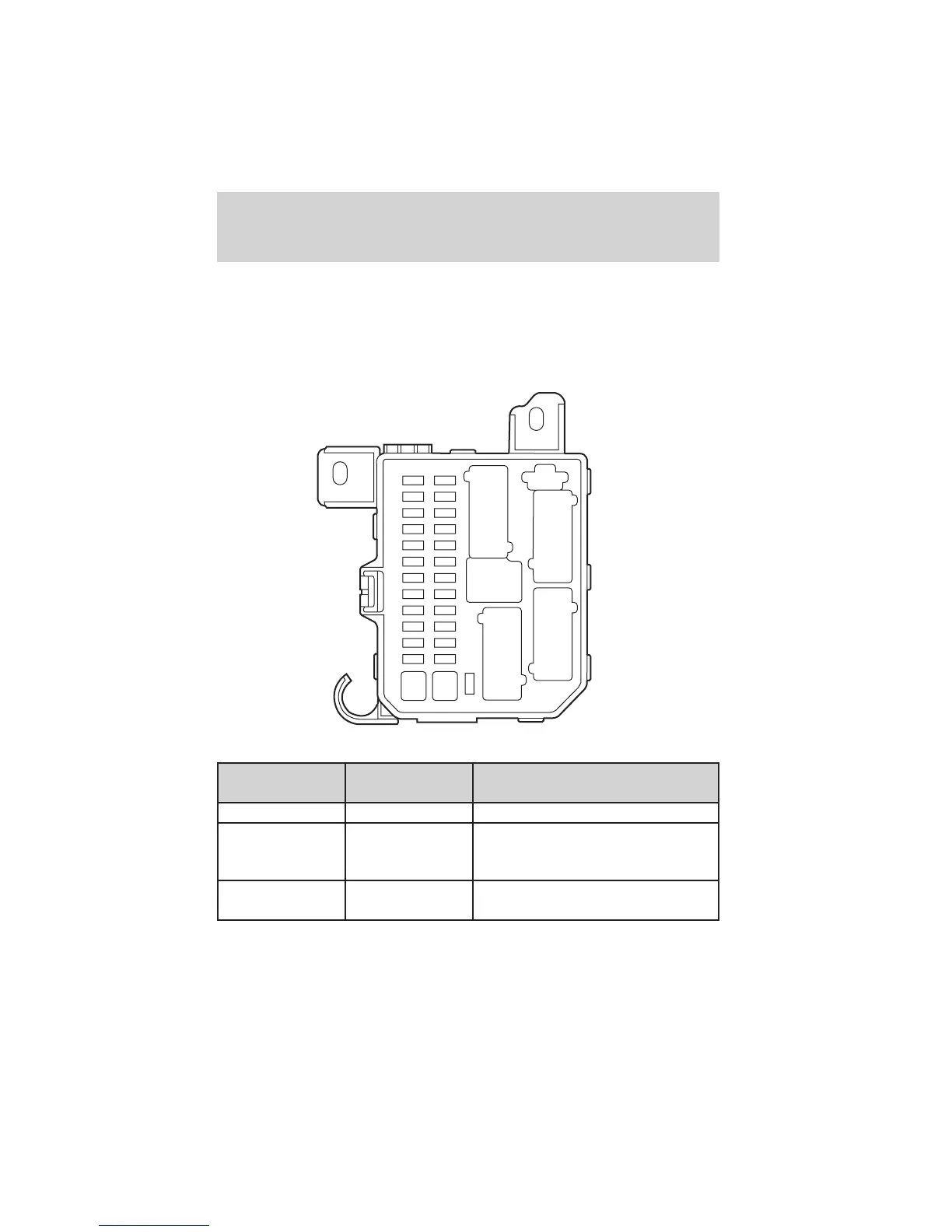

Passenger compartment fuse panel
The fuse panel is located on the left hand side kick panel. Remove the
panel cover to access the fuses.
To remove a fuse use the fuse puller tool provided on the fuse panel
cover.
The fuses are coded as follows:
Fuse/Relay
Location
Fuse Amp
Rating
Passenger Compartment Fuse
Panel Description
1 5A Canister Vent Control Solenoid
2 5A Blower Relay (coil), Rear Defrost
Relay (coil), Pressure Switch to
PCM
3 10A Rear Wiper Motor, Rear Washer
Motor, Rear Wiper Relay (coil)
ACC
12
34
56
78
910
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27
