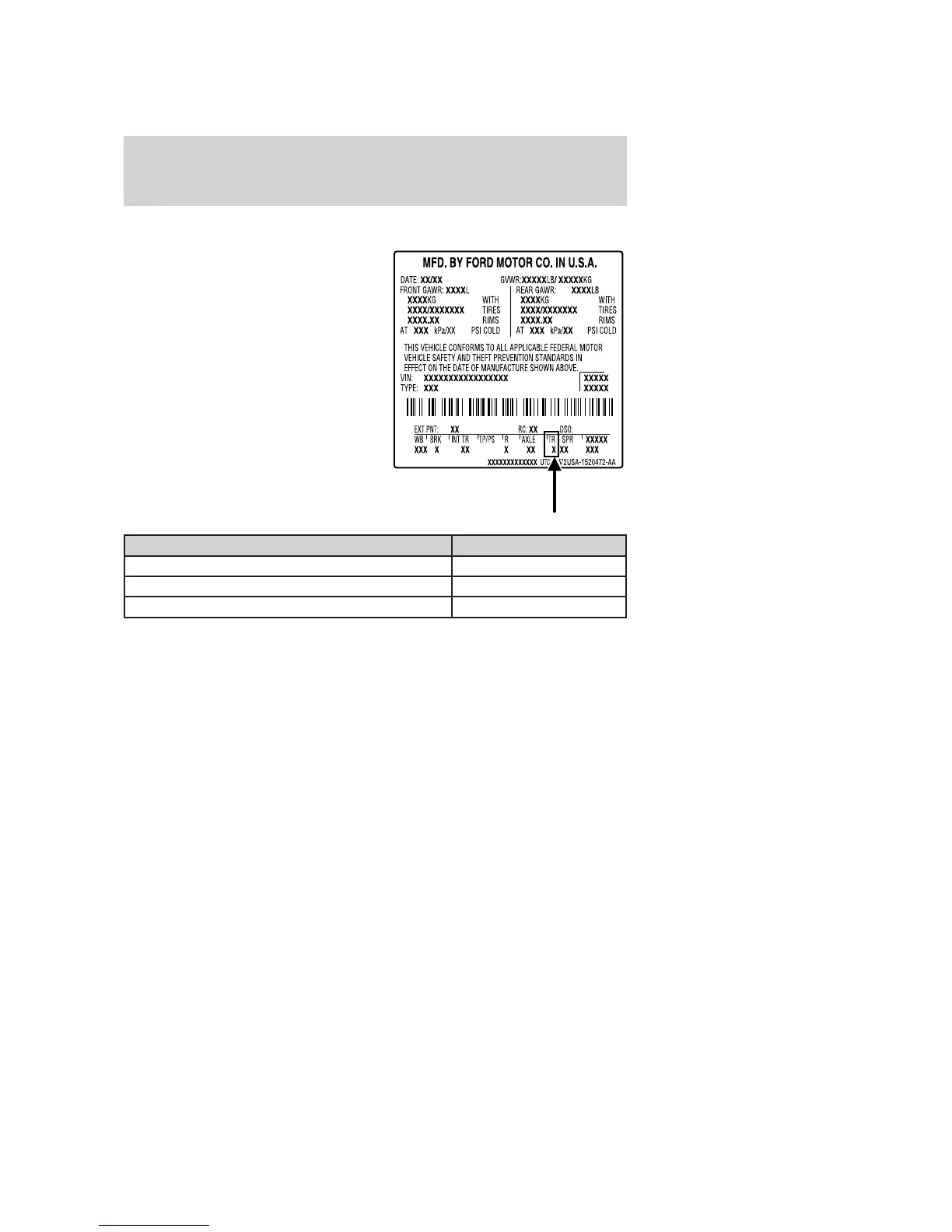

T
RANSMISSION/T
RANSAXLE
CODE
DESIGNATIONS
Y
ou
can
find
a
transmission/transaxle
code
on
the
Safety
Compliance
Certification
Label.
The
following
table
tells
you
which
transmission
or
transaxle
each
code
represents.
Description
Code
5–Speed
Manual
T
ransaxle
A
Mazda
G5M
5
5–Speed
Automatic
T
ransaxle
Mazda
FNR5
C
6–Speed
Automatic
T
ransaxle
Aisin
F21
B
2006
Fusion
(fsn)
Owners
Guide
(post-2002-fmt)
USA
(fus)
Maintenance
and
Specifications
250
249
251
