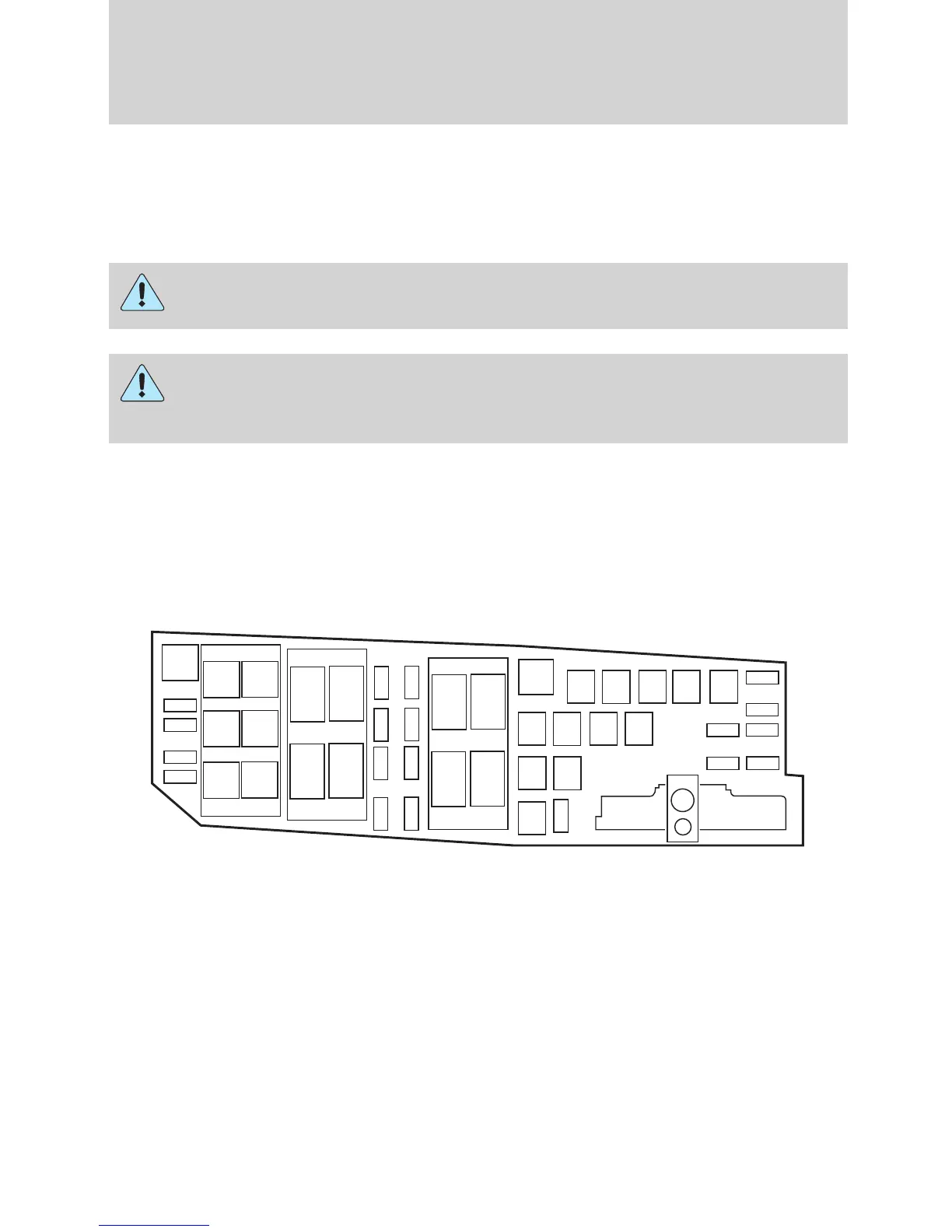

Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
WARNING: Always disconnect the battery before servicing high
current fuses.
WARNING: To reduce risk of electrical shock, always replace
the cover to the Power Distribution Box before reconnecting the
battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Battery section of the Maintenance and Specifications chapter.
Note: To remove the power distribution box cover, the battery negative
cable clip needs to be removed first. Pull up on the clip to detach it from
the battery tray.
25
24
22
23
26
27
28
29
21A
21B
21C
21D
30A
30B
30C
30D
31A
31B
31C
31D
31E
31F
32
33
34
35
36
15
16
17
18
19
20
10
11
12
9
3
4
1
2
5
6
7
8
13
14
Roadside Emergencies
179
2010 Transit Connect (tst)
Owners Guide (own2002), 1st Printing
