GAUGES

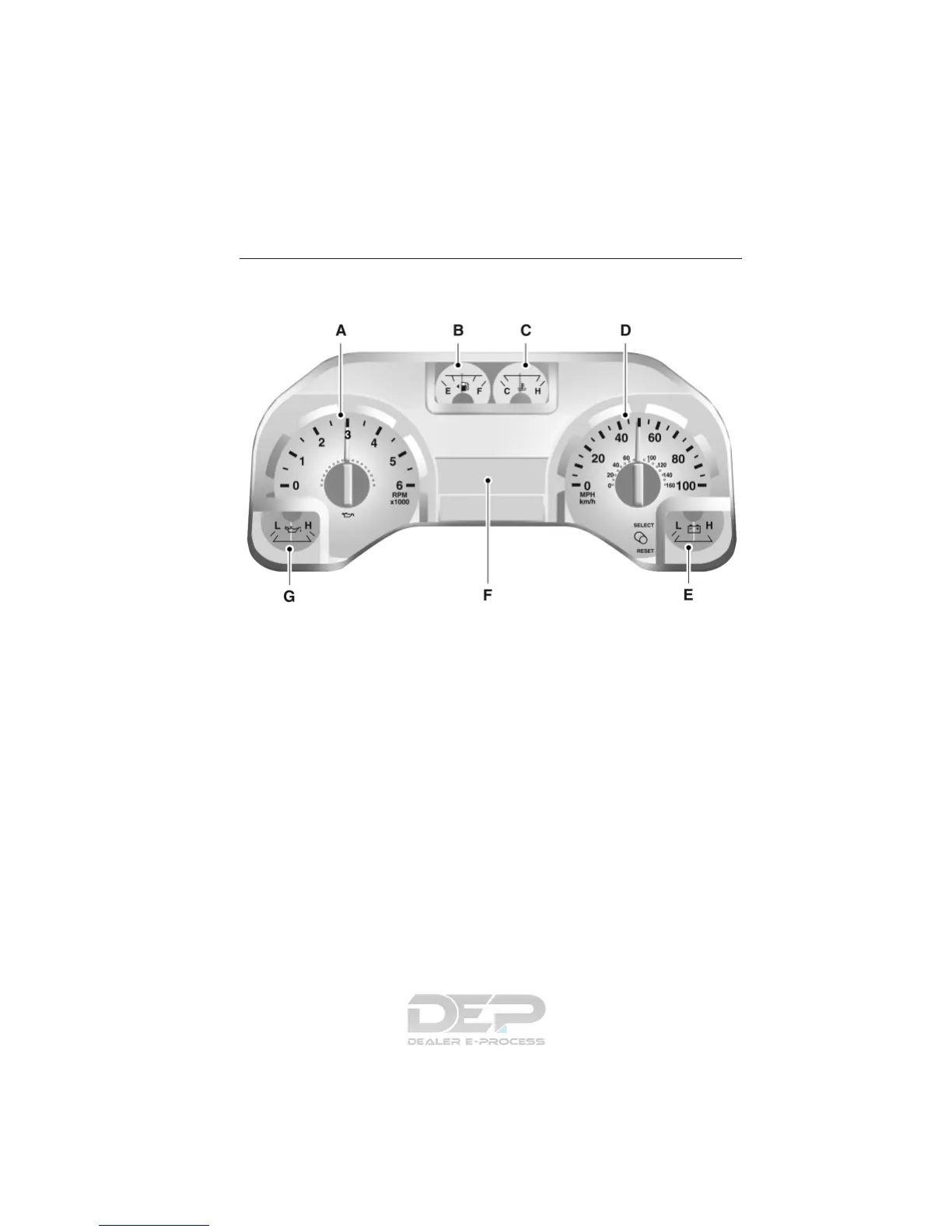

Cluster shown in standard measure. Metric similar.
A. Tachometer
B. Fuel gauge
C. Engine coolant temperature gauge
D. Speedometer
E. Battery voltage gauge
F. Information display. See Information displays for more information.
G. Engine oil pressure gauge
Fuel Gauge
Indicates approximately how much fuel is left in the fuel tank (when the
ignition is on). The fuel gauge may vary slightly when the vehicle is in
motion or on a grade. The fuel icon and arrow indicates which side of
the vehicle the fuel filler door is located.
76 Instrument Cluster
2014 Econoline (eco)
Owners Guide gf, 1st Printing, November 2012
USA (fus)
