General| Manufacturer | Ford |
|---|---|
| Model | 9N |
| Production Years | 1939-1942 |
| Type | Utility Tractor |
| Engine Type | 4-cylinder gasoline |
| Weight | 2, 340 lbs (1, 061 kg) |
| Front Tire | 4.00-19 |
| Transmission | 3-speed |
| Wheelbase | 70 inches (177.8 cm) |
| Width | 64 inches (162.6 cm) |
| Height | 54 inches (1, 400 mm) |
Provides detailed technical specifications for the Model 8N Ford tractor.
Details engine type, rated speeds, bore, stroke, displacement, torque, and compression.
Presents general data for the Ford 4-cylinder engine, including type, displacement, and torque.
Provides steps for disassembling the engine, starting with intake and exhaust manifolds.
Instructions for crankshaft and flywheel inspection, remachining, and replacement.
Details inspection and repair procedures for the cylinder block.
Covers inspection and repair of pistons and connecting rods.
Procedure for removing and replacing steel cylinder sleeves using specific tools.
Procedure for disassembling, inspecting, and reassembling pistons and connecting rods.
Instructions for fitting and installing piston rings into cylinder bores.
Procedure for inspecting and servicing the camshaft and valve mechanism.
Procedure for inspecting and repairing the cylinder head and front cover.
Instructions for cleaning, inspecting, and repairing the oil pump.
Procedure for disassembling, inspecting, cleaning, and assembling the water pump.
Procedure for disassembling, inspecting, and assembling the governor.
Covers inspection and repair of transmission gears, shafts, bearings, and covers.
Steps for assembling the transmission subassemblies, ensuring all parts are serviceable.
Covers inspection and repair of PTO adapter components like guard, shaft, sleeve, and bearing.
Steps for assembling the power take-off adapter, including bearing preload adjustments.
Covers inspection and repair of the belt pulley housing, gears, bearings, and pulley itself.

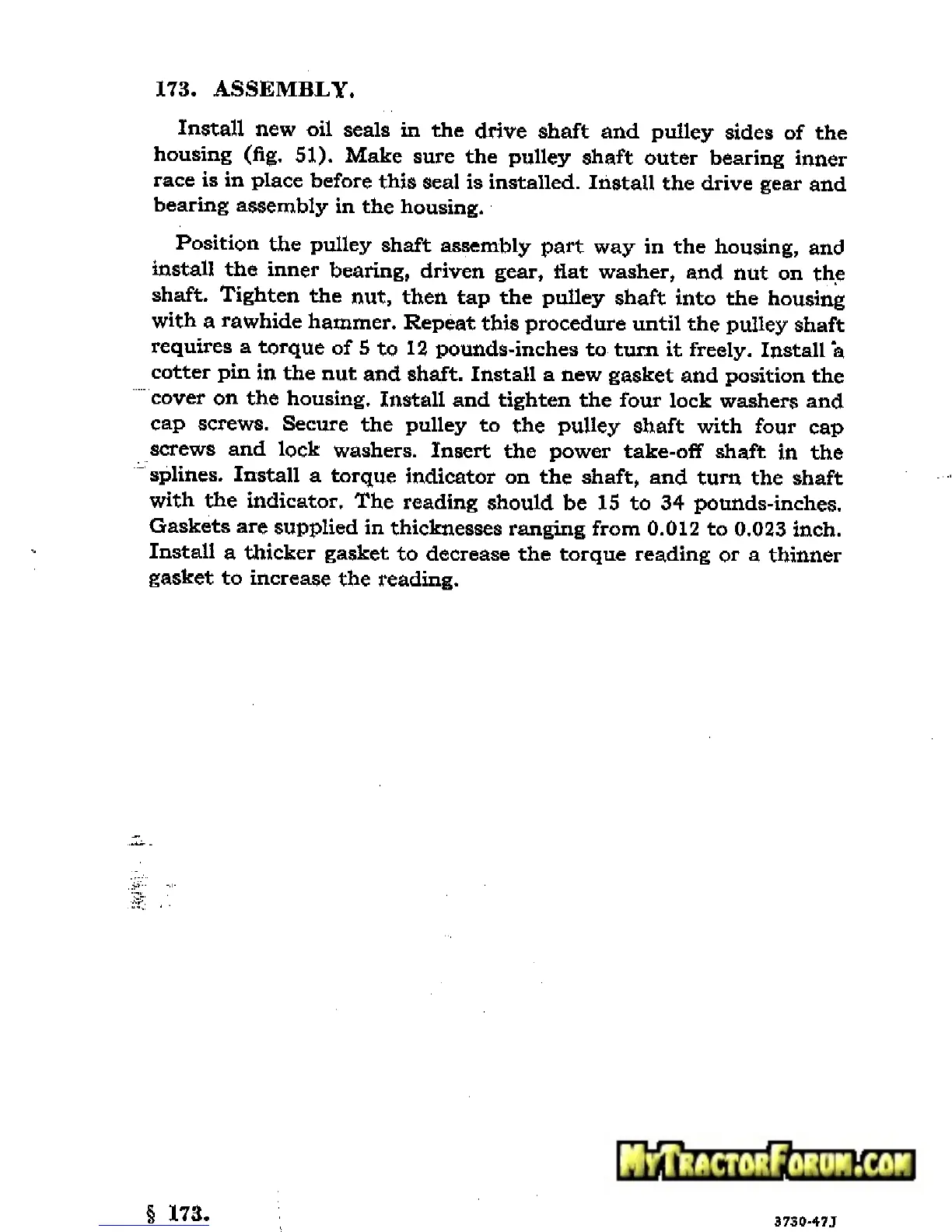

Steps for assembling the belt pulley, including seals, bearings, and torque specifications.
Covers inspection and repair of axle housing, bearings, drive pinion, and differential gears.
Steps for assembling the rear axle components, including shims and final torque.
Details external and internal adjustments for the hydraulic touch control lever.
Covers inspection and repair of steering gear components like tube, bearings, and ball nut.
Steps for assembling the steering tube shaft and sectors, including ball circuit filling.
