Protected componentsFuse amp ratingFuse or relay number

Heater blower.Mini relayR13

Engine control relay.Mini relayR14

*Mini fuses **Cartridge fuses

Passenger Compartment Fuse

Panel

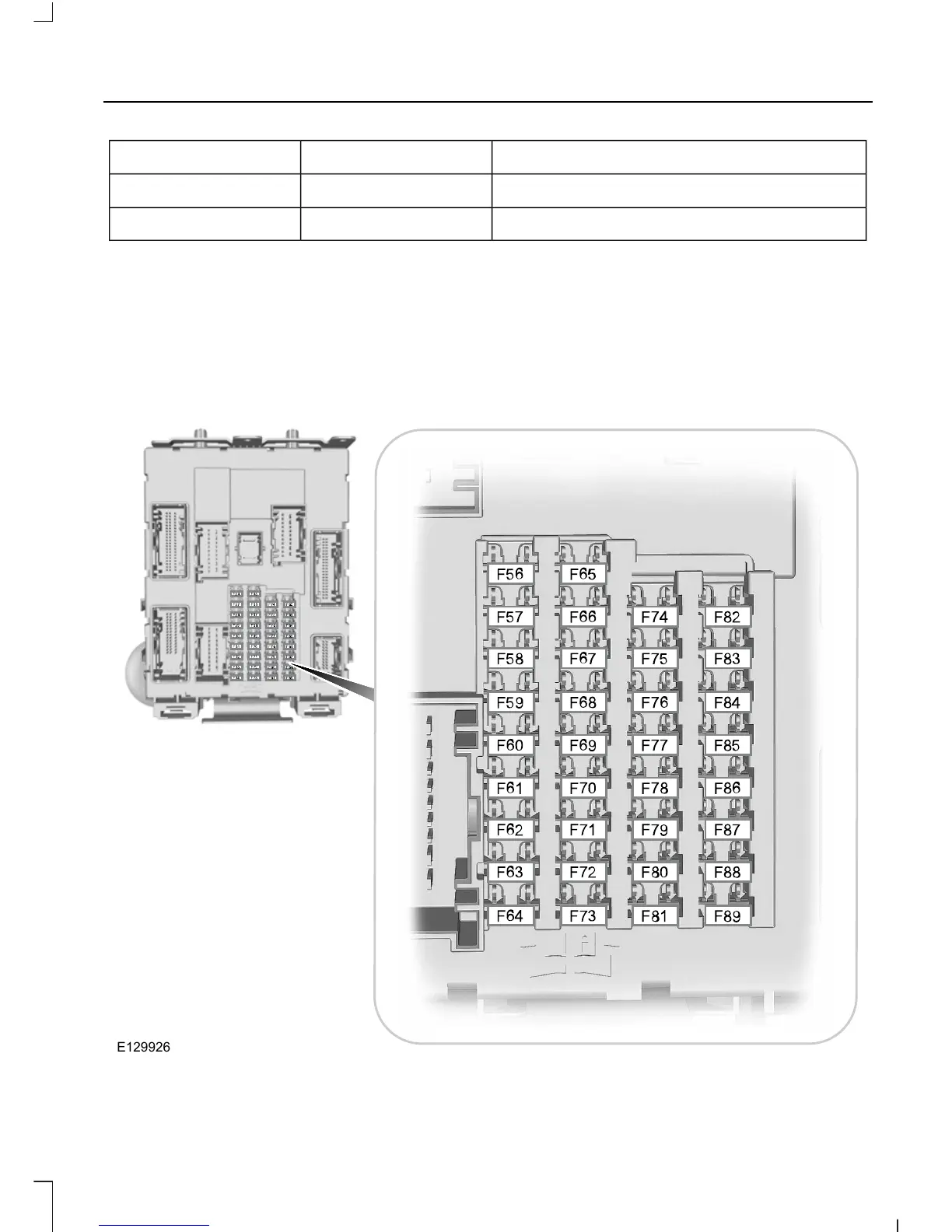

The fuse panel is located on the right-hand

side below the glove box. You may need

to remove a trim panel to access it.

E129926

203

C-MAX (CCG) Mexico/United States of America/Canada, enUSA, CPE Review

Fuses

Default Chapter4
