If the battery has been disconnected and reconnected, refer to the
Battery section of the Maintenance and Specifications chapter.

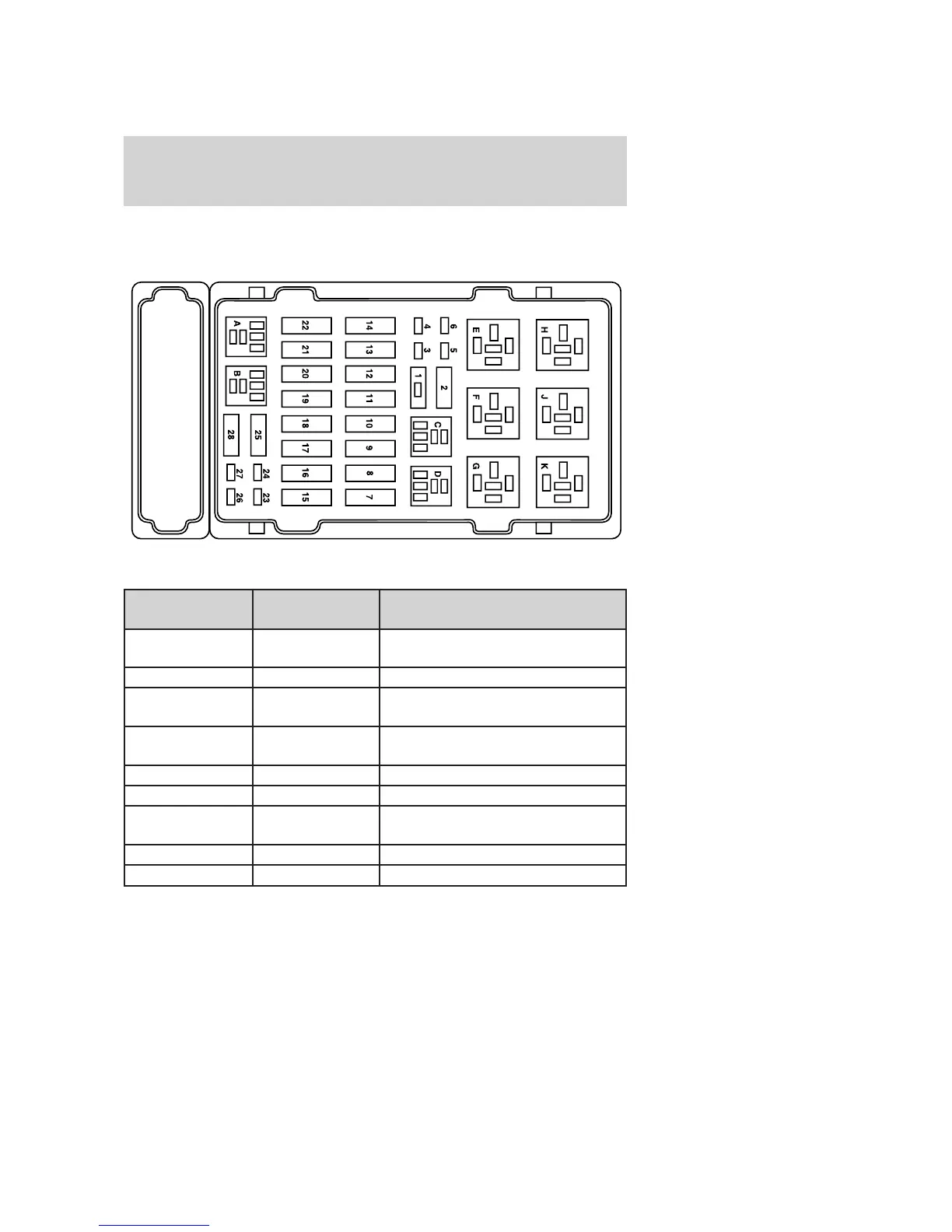

The high-current fuses are coded as follows.
Fuse/Relay
Location
Fuse Amp
Rating
Power Distribution Box
Description
1 — Powertrain Control Module (PCM)
diode
2 — Auxiliary battery diode
3 15A* Daytime Running Lamps (DRL)
module, A/C clutch
4 5A* Heated PCV (4.6L and 6.8L
engines)
5 15A* Horn relay
6 20A PCM —fuel injectors
7 60A** Ignition switch, Delayed accessory
delay
8 40A** Trailer tow battery charge relay
9 50A** Modified vehicle power
