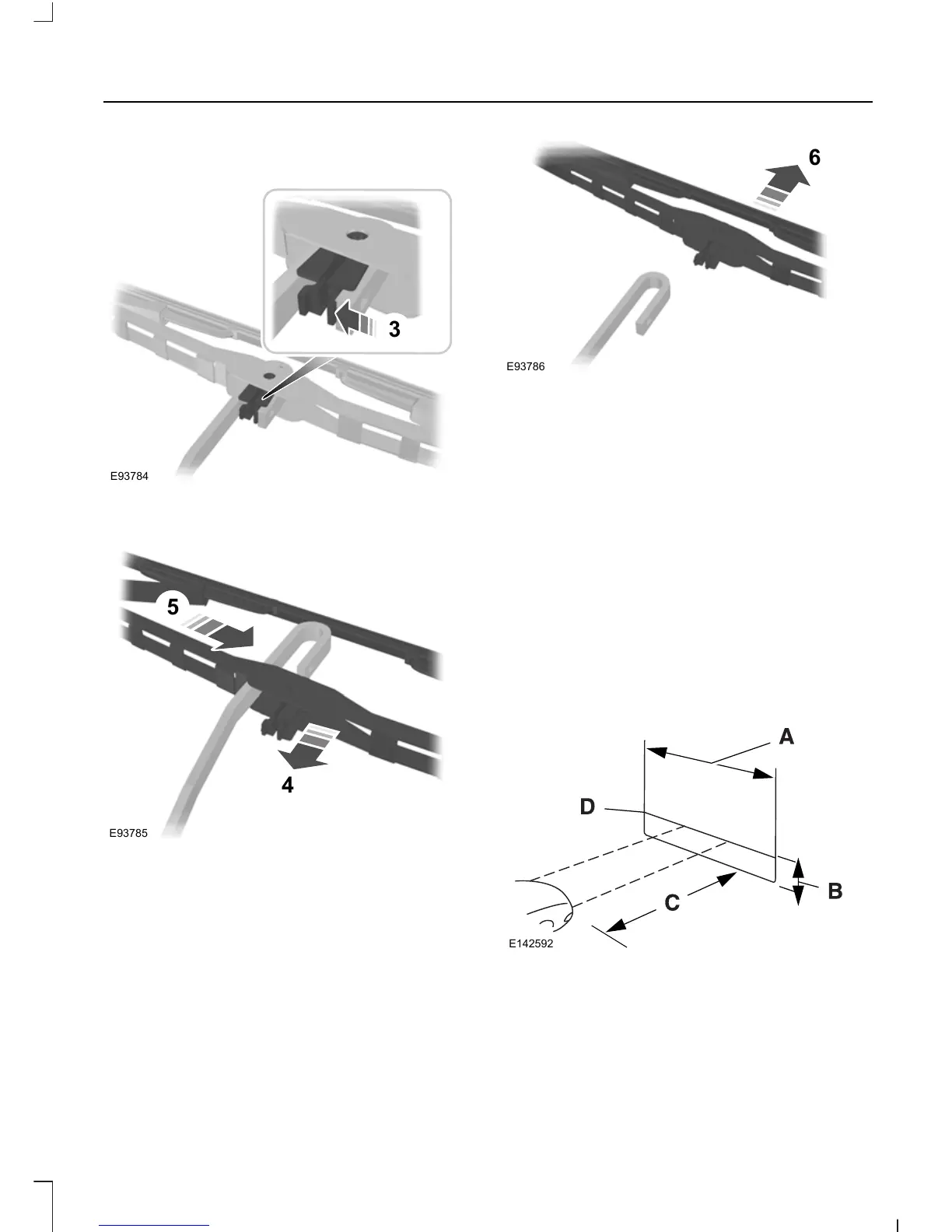

2. Position the wiper blade at right angles

to the wiper arm.

E93784

3. Disengage the wiper blade from the

wiper arm.

E93785

4. Unhook the wiper blade from the wiper

arm.

5. Slide the wiper blade to the side.

E93786

6. Remove the wiper blade.

Install new wiper blades in the reverse

order.

Note: Make sure that the wiper blade locks

into place.

ADJUSTING THE HEADLAMPS

Vertical Aim Adjustment

If your vehicle has been involved in a crash,

have the aim of the headlamp beam

checked by an authorized dealer.

Headlamp Aiming Target

E142592

8 feet (2.4 meters)A

Ground to the center of the

headlamp bulb
