Fostex Speaker User Manual

CAUTION:HEATSINK MAY GET HOT
WARNING
MADE I N C HINA
To reduc e the risk of fire o r elect r ical
Shoc k, do no t ex po se t hi s equl pmen t to r ai n or
Moi s ture .Do not rem ov e cover.No user serv icea ble
pa rt s in sid e. Re fer s er vic in g to q ual lf ied p er so nna l.
CAUTION
AVIS
.
AC IN
POWER
3024002
US
CN
L
I
S
T
E
D
INPUT
L
R
WO O F E R
GA I N
PHASE
OUTPUT
I
N
T
E
R
T
E
K
L
R
MAX
MIN
+
-
1. XLR & TRS Combination Inputs
These inputs is are electronically balanced inputs
and are compatible with both -10dBV and
+4dBusignals.
2. Woofer Gain
This control adjusts the Subwoofer level.
Use the control to blend the low frequency
seamlessly with the satellite speakers.
3. Phase Switch
This switch reverses the phase of the Subwoofer.
Depending on the placement of the PM0.5-Sub MKⅡ
relative to the satellite speakers in the room,
you may obtain the smoother frequency response
4. XLR Outputs
if you set the switch to the negative position.
These outputs are electronically balanced outputs
and supply +4dBu signal to the satellite speakers.
5. Power Switch
6. Standard IEC Power Input
7. Heatsink
Turns the power to the PM0.5-Sub MKⅡ amplifier
section on or off.
This power connection should be used with a
properly grounded three pin power cable.
The heatsink dissipates heat from the internal amplifier.
It is important that the heatsink receives proper
ventilation. Do not place the heatsink near any
exernal sources of heat.
1
2
3
4
5
6
7
RISQUE DE CHOC ÉLECTRIQUE
NE PAS OUVRIR
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CONFORMS TO
UL STD.6500
PM0.4-Sub MKⅡ

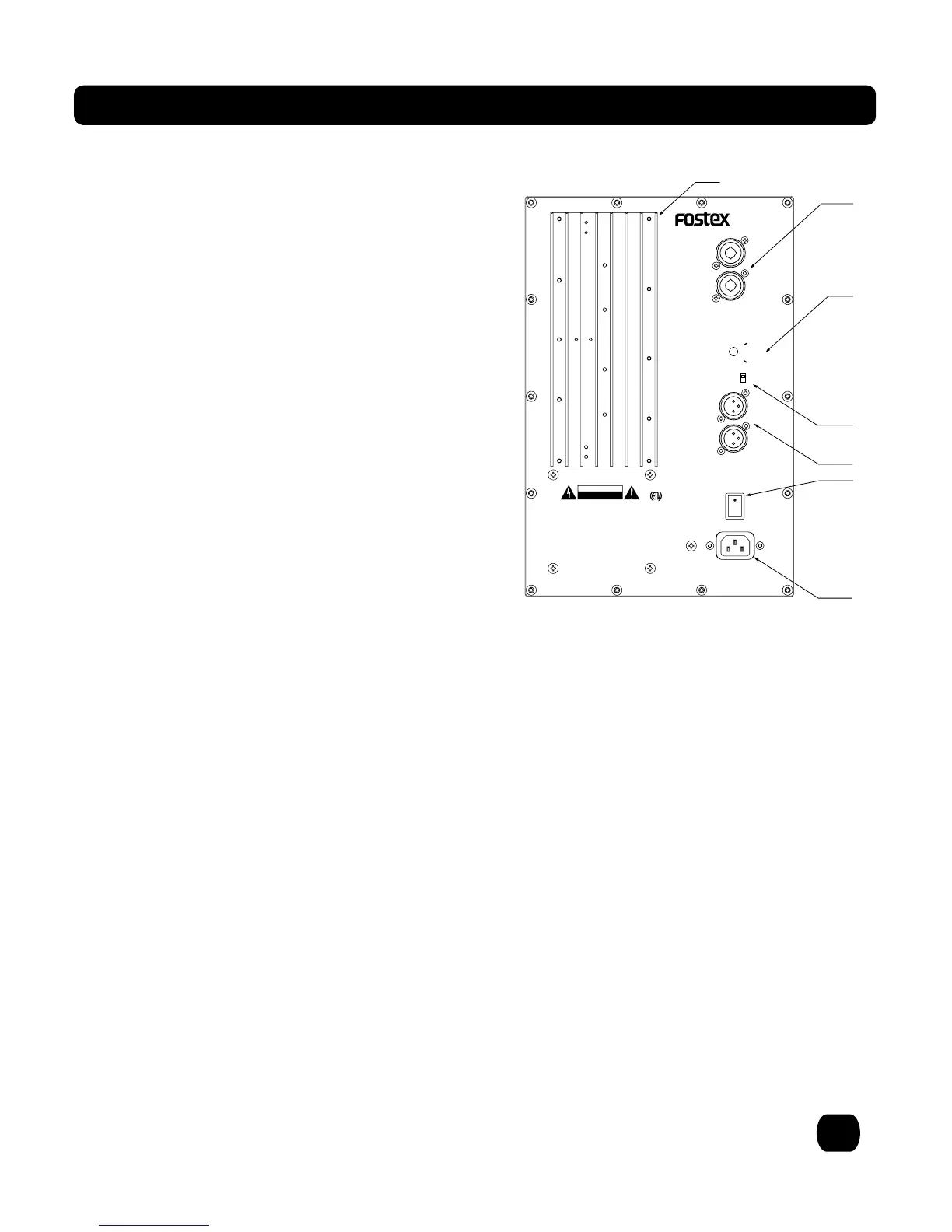

Back Panel Overview
p-5
®
