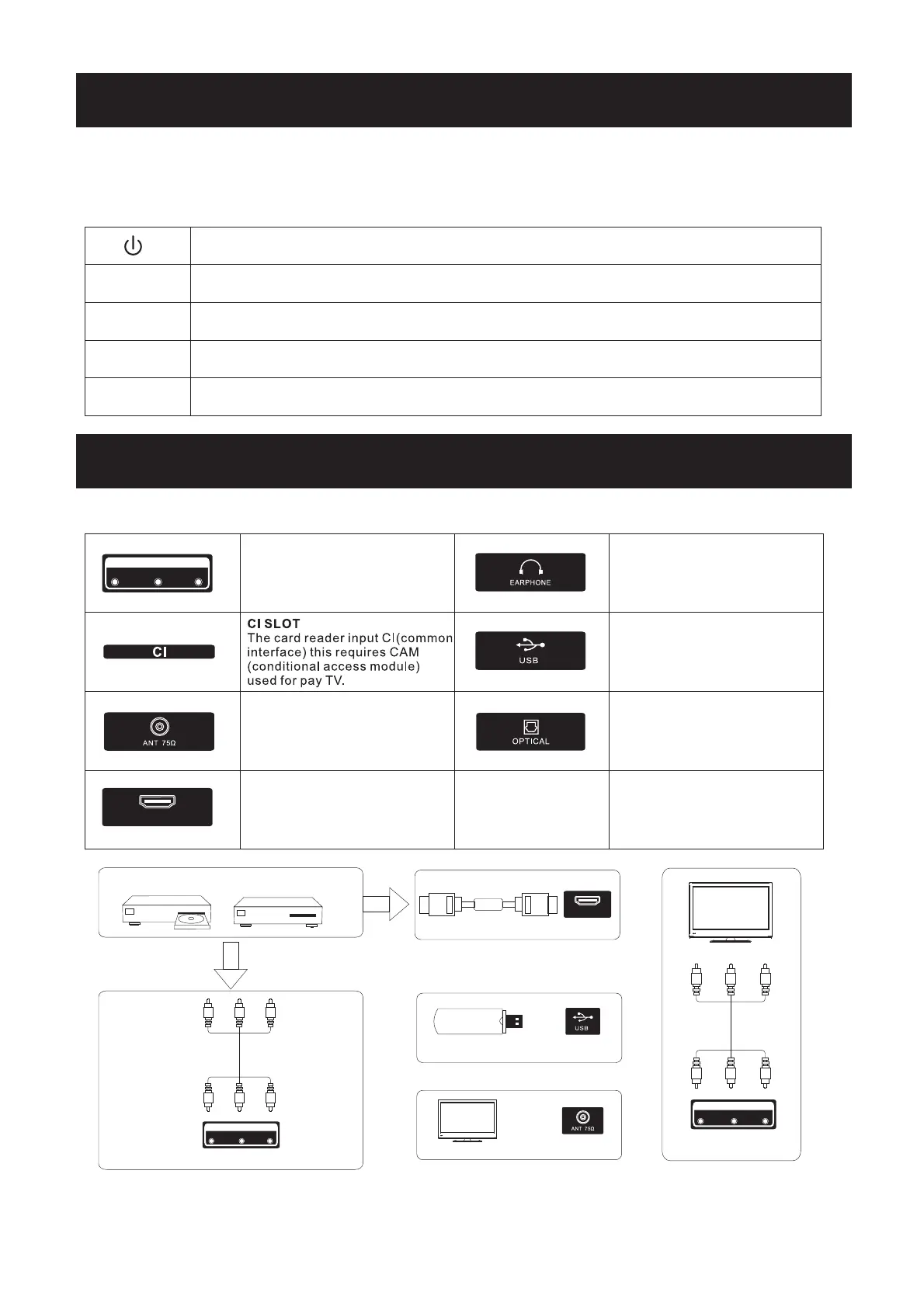

TV Buttons And Terminal Interface
TV Buttons
Turn ON/OFF Power.
External Signal Input Selection.
SOURCE
Display Main MENU And Confirm MENU Item Selection.
MENU
Selecting Channel.
CH+/-
Adjusting Volume.
VOL+/-
Note: The following is only functional schematic, And the actual position and
arrangement of different models may be different.
Terminal Interface
Note: The following are the various terminal interface, the actual position and
arrangement, the number of different models may be different.
VIDEO RL
INPUT
HDMI
AV input
External AV Signal Input And
Relevant Right/Left Sound Channel
HDMI input
Digital signal input from HDMI video
connector.
ANT 75
Connect the antennal/cadle tv input
(75/VHF/UHF)
EARPHONE output
When earphones are plugged in,
speakers are disabled
USB input
Connect a USB device here to play
its media files or to recordprograms
via the PVR function.
OPTICAL output
Connect the SPDIF receiver.
4
External device connection diagram
DVD
Set-top boxes
HDMI
HDMI
HDMI input connection
VIDEO RL
INPUT
AV input connection
USB connection
TV connection
VIDEO RL
OUTPUT
AV output connection
AV input connection
