8 P/N 450368 Rev I

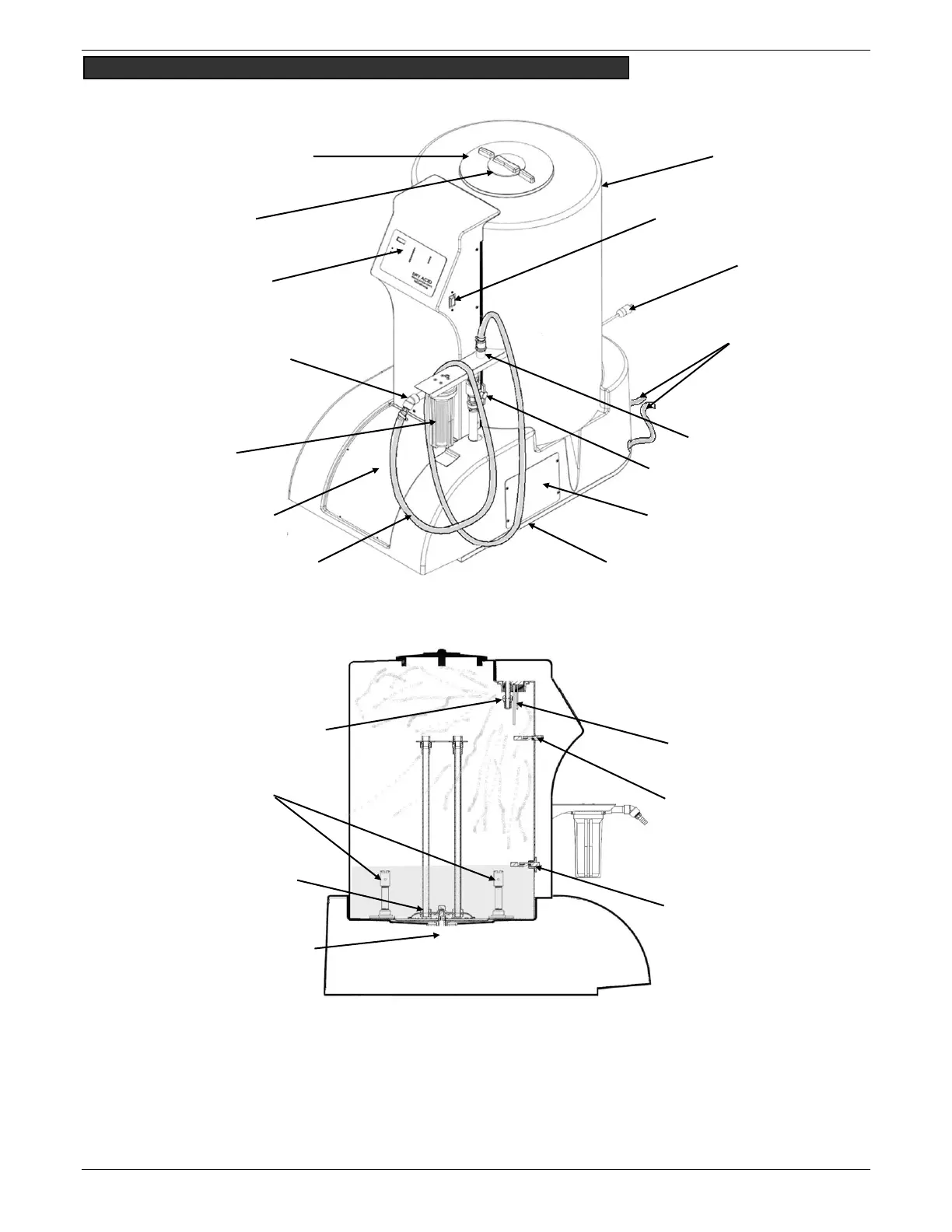

DIAGRAM 2: EXTERNAL AND INTERNAL GRANUFLO DISSOLUTION UNIT II PARTS
Mixing Jets
Tank Filter Stand
25 – Gallon Sensor
Mid-Level Sensor
Final Fill Sensor
Spray Ball
Pump Dry Sensor (inside
base; below tank)
Transfer Hose
Motor Access Panel
Filter Housing
¾” Transfer Barb
Control Panel
Small Access Port Lid
Large Access Lid
Dissolution Tank
120 VAC Power Cord
Main Power Switch/Breaker
Cord
Water Inlet or Drain
Outlet…Location will
vary
Transfer Hose Holder
Main Transfer Ball Valve
Side Access Panel
Leveling Feet (All items under Unit)
External Parts
Internal Parts
