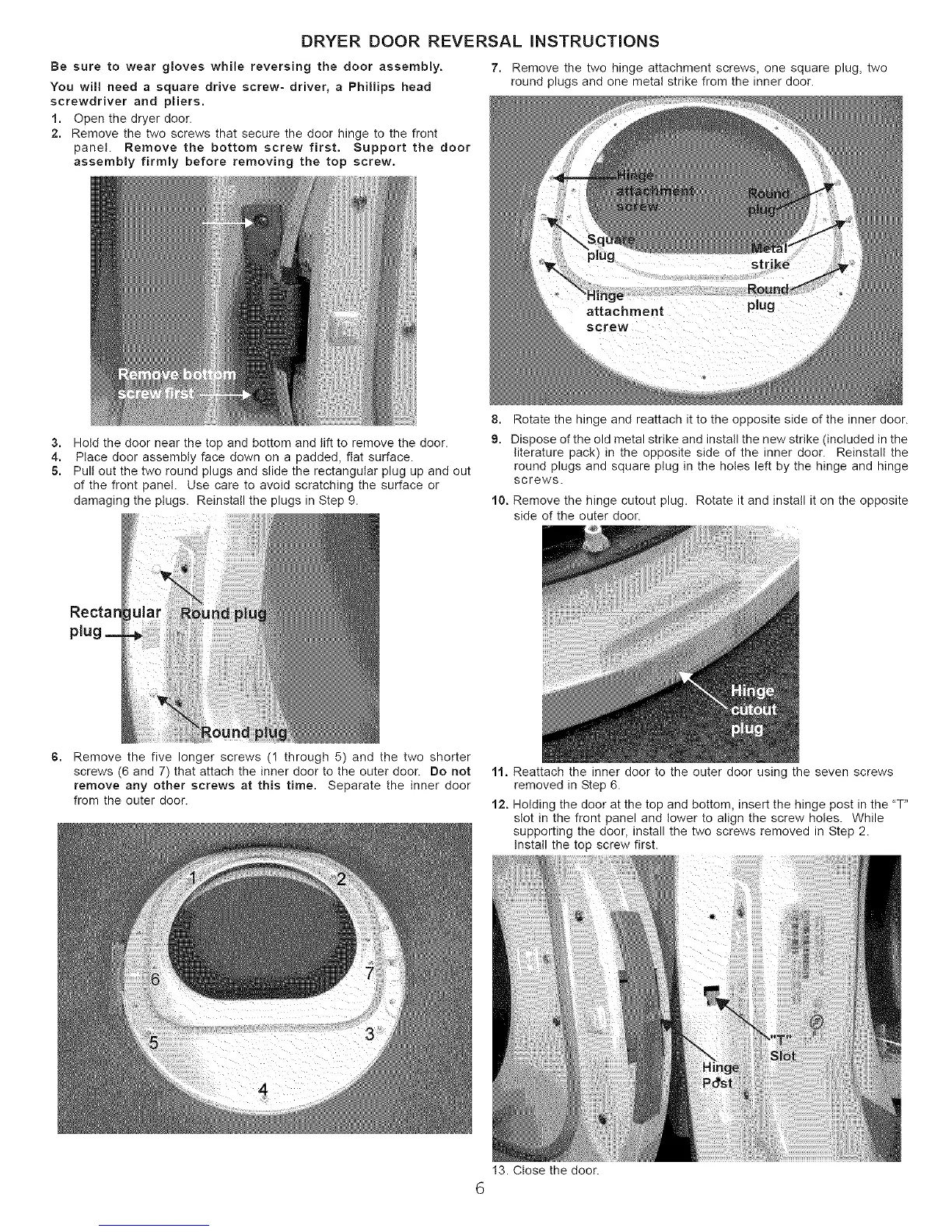

DRYER DOOR REVERSAL INSTRUCTIONS
Be sure to wear gloves while reversing the door assembly.
You will need a square drive screw- driver, a Phillips head
screwdriver and pliers.
1. Open the dryer door.
2. Remove the two screws that secure the door hinge to the front
panet. Remove the bottom screw first. Support the door
assembly firmly before removing the top screw.
7. Remove the two hinge attachment screws, one square plug, two
round plugs and one metal strike from the inner door.
attacN
screw
3,
4.
5.
Hold the door near the top and bottom and lift to remove the door.
Place door assembly face down on a padded, flat surface.
Pull out the two round plugs and slide the rectangular plug up and out
of the front panel. Use care to avoid scratching the surface or
damaging the plugs. Reinstall the plugs in Step 9.
plug
8. Rotate the hinge and reattach it to the opposite side of the inner door.
9. Dispose of the old metal strike and install the new strike (included in the
literature pack) in the opposite side of the inner door. Reinstall the
round plugs and square plug in the holes left by the hinge and hinge
screws.
10. Remove the hinge cutout plug. Rotate it and install it on the opposite
side of the outer door.
6,
Remove the five longer screws (I through 5) and the two shorter
screws (6 and 7) that attach the inner door to the outer door. Do not
remove any other screws at this time. Separate the inner door
from the outer door.
11. Reattach the inner door to the outer door using the seven screws
removed in Step 6.
12. Holding the door at the top and bottom, insert the hinge post in the "T"
slot in the front panel and lower to align the screw holes. While
supporting the door, install the two screws removed in Step 2.
Install the top screw first.
I3. Close the door.
