HANDLE INSTALLATION
IMPORTANT
To ensure proper installation of handles,
please review these instructions and
illustrations thoroughly prior to installing the
handles.
CAUTION
Wear gloves and safety goggles and use
extreme CAUTION when installing these
handles. The rounded end of the handles
may be sharp (some models).
Ensure Handle Set Screws
are Facing Each Other
with Doors Closed

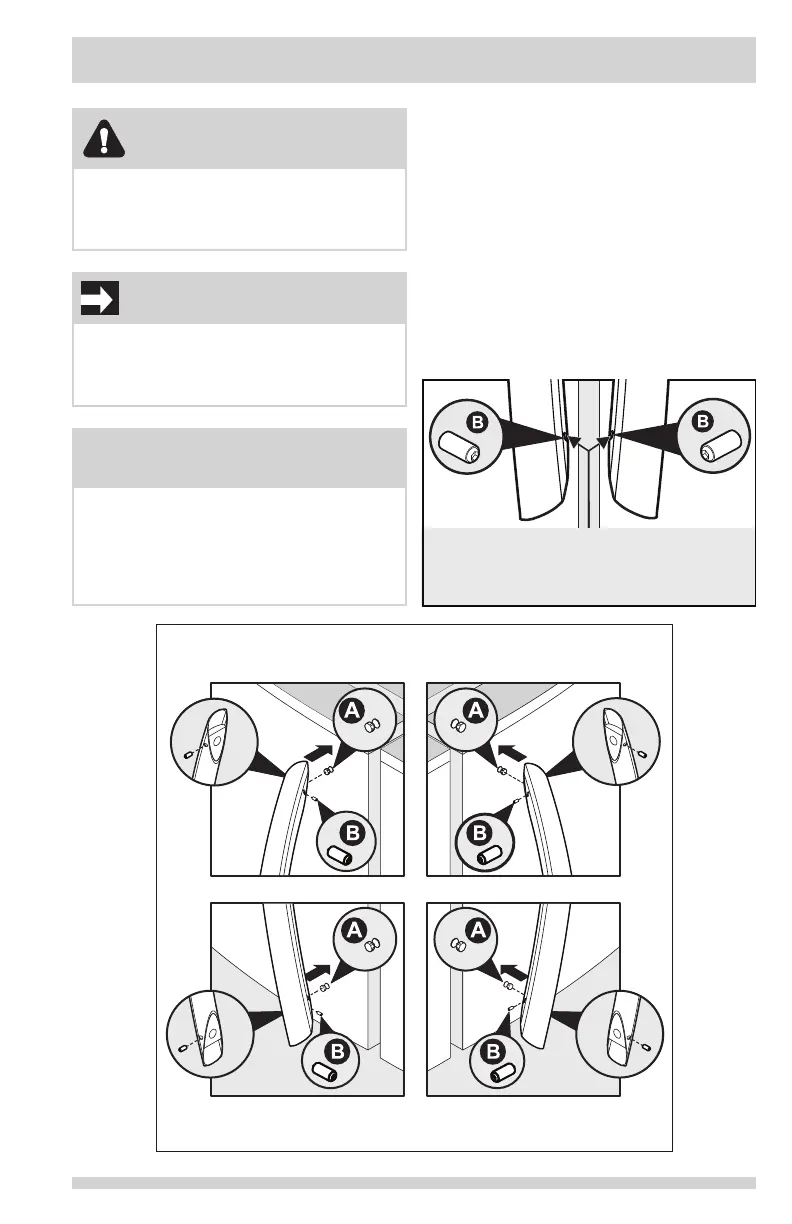

1 Remove handles from carton and any
other protective packaging.
2 Position freezer handle end caps over
upper and lower pre-installed shoulder
bolts (A) that are fastened into door,
ensuring the holes for the set screws are
facing towards the refrigerator door.
3 Whileholdinghandlermlyagainstdoor,
fasten upper and lower Allen set screws
(B) with supplied Allen wrench.
4 Repeat steps 2 and 3 to install refrigerator
handle. Ensure the holes for the set screws
are facing towards the freezer door.

NOTE
All set screws should be tightened and sub-
ush(Allensetscrewshouldbeseatedjust
below the surface of the end cap) of handle
end cap. The end caps should be drawn
tight to freezer and refrigerator doors with
no gaps.
Freezer Upper
End Cap
Refrigerator Upper
End Cap
Refrigerator Lower
End Cap
Freezer Lower
End Cap
