IMPORTANT
Make sure water line tubing goes through
hole at top of dispenser pocket. There is also
a metal wrap on the tubing to prevent dam-
age from the hinge rubbing against it. This
needs to be xed back around the tube in the
proper location upon reinstallation (just as
long as the tube is protected from the hinge).
NOTE
When reinserting the water tube and replac-
ing the top hinge cover, use care to be sure
the tube does not kink.
8

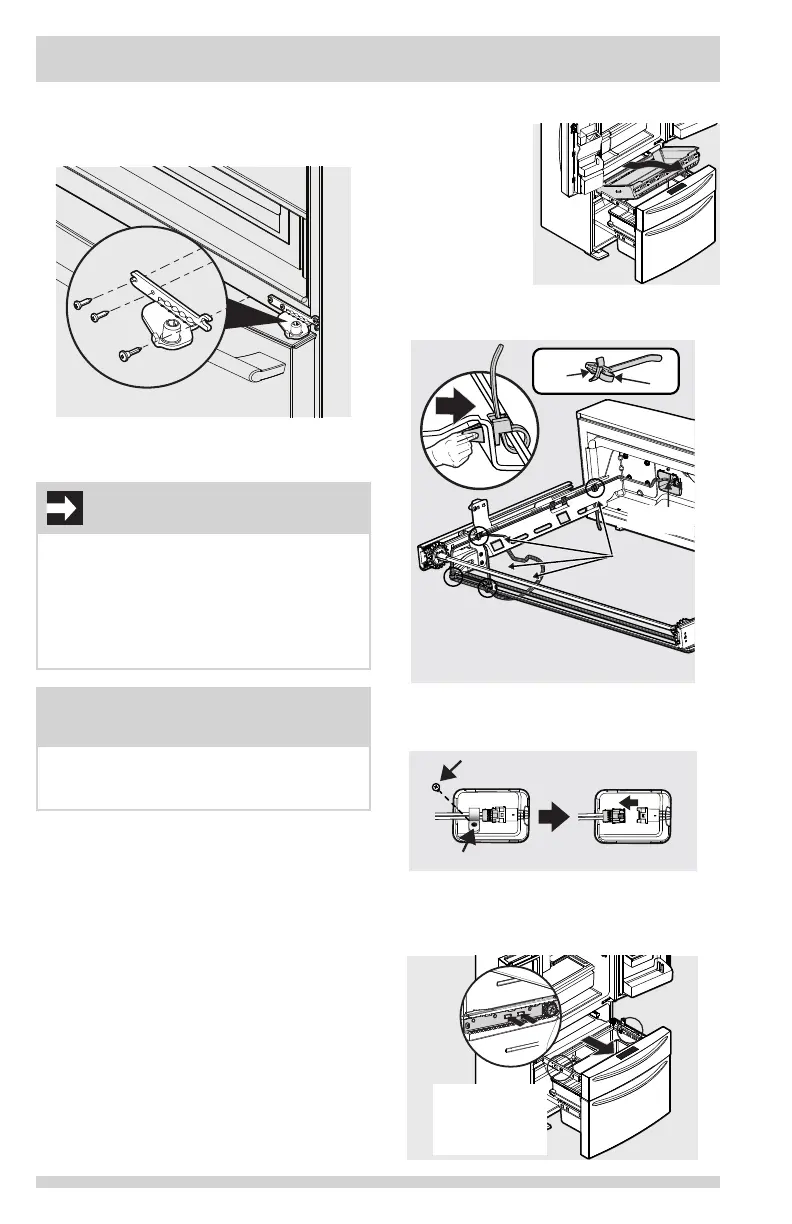

DOOR REMOVAL INSTRUCTIONS
Lower Hinge Removal
Once both doors are in place, ensure they are
aligned with each other and level (Reference
the Installation section for more details), and
replace the top hinge cover.
8 To reinstall doors, reverse procedure.
7 To gain access to lower hinge, drawer will
need to be extended. Unscrew the three lower
hinge screws and slide the hinge inwards.
To remove the Custom-Flex
TM
Temp Drawer
1 Fully open
drawer.
2 Remove
basket from
drawer.
3 Unsnap the 4
cable ties by
pressing clip sides together and pushing
through opening.
4 Remove screw and retaining clip and
disconnect the harness
5 Remove drawer by pressing on the liner
clips and slide rail past clips on both sides
to fully remove drawer from cabinet.
Press the two
tabs on both
sides to release
the sliders
Cable
Tie
Cable
Clip
NOTE: Do Not Remove or Cut
Cable Ties From Wire Harness
(4) Cable
Ties
Retaining
Clip
Harness
To Next Page
